Line scan lenses
90 mm, 0.42x, 150 MP, M72-mount Line Scan Lens (LS-LSL-0208)
Model LS-LSL-0208
- Focal length90 mm ±5%
- Magnification0.42x-0.07x
- MountM72
- SensorLarge format
- ApertureF4.8-22
- Resolution150 Megapixel
$3,389.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
90 mm, 0.42x, 150 MP, M72-mount Line Scan Lens. A motorized auto-focus 90 mm line scan lens for 150 megapixel / 3.76 um sensors with a 67 mm image circle, 0.42x-0.07x magnification and <0.1% distortion, for LED display and screen inspection. At a glance: magnification 0.42x-0.07x; focal length 90 mm ±5%; resolution 150 Megapixel; aperture F4.8-22; mount M72 x P0.75.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0208 |
|---|---|
| Angle of view (D) | 37.6 deg |
| Motor speed | 0-250 RPM |
| Motor rated speed | 150 RPM |
| Motor response | <1 ms |
| Motor stop torque | 0.16 N.m |
| Motor accuracy | ±0.01 deg |
| Motor direction | CW, CCW |
Optics
| Focal length | 90 mm ±5% |
|---|---|
| Image circle | dia. 67 mm |
| Aperture | F4.8-22 |
| Magnification | 0.42x-0.07x |
| Working distance vs magnification | 0.42X: 267.1 mm; 0.3X: 353.9 mm; 0.2X: 505.7 mm; 0.15X: 657.5 mm; 0.07X: 1351.5 mm |
| TV distortion | <0.1% |
Sensor and imaging
| Pixel size | 3.76 um |
|---|---|
| Resolution | 150 Megapixel |
Interfaces and I/O
| Communication | RS232 / TTL (5-pin Hirose connector; DB9 + DC 5.5 x 2.1 cable) |
|---|
Environment and compliance
| Motor operating temp./humidity | -40~105 °C, RH 0-90% |
|---|
Electrical
| Motor voltage | 24 V |
|---|---|
| Motor power | 1.68 W |
| Motor max output torque | 0.08 N.m |

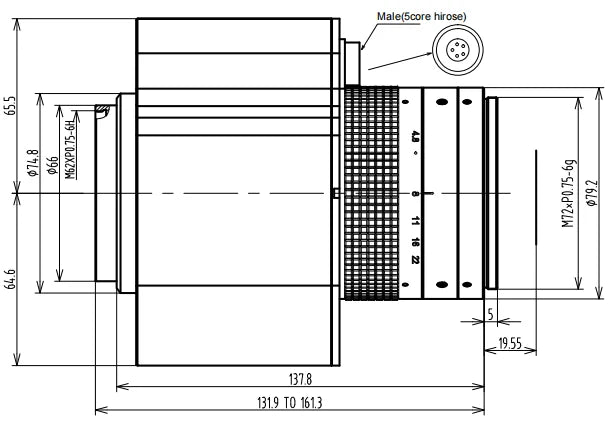

Mechanical
| Entrance pupil diameter | dia. 18.25 mm |
|---|---|
| Size | dia. 86.6 x 161.3 mm |
| Mount | M72 x P0.75 |
| Front thread | M62 x P0.75 |
| Shipping weight (estimated) | 0.94 kg |
