Line scan lens
  • Line scan lens

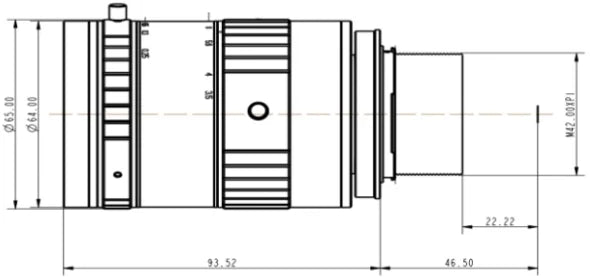

  • LS-LSL-0202 dimensions (mm)

Line scan lenses

80 mm, 100 MP, F-mount Line Scan Lens (LS-LSL-0202)

Model LS-LSL-0202

  • Focal length80 mm
  • MountF-mount
  • SensorLarge format
  • ApertureF3.5~22 Manual iris
  • Resolution100Megapixel ( Pixel size 3.1 μm )
$3,349.00

Ships in 2-3 weeks

0.93 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

80 mm, 100 MP, F-mount Line Scan Lens (LS-LSL-0202)LS-LSL-0202

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

80 mm, 100 MP, F-mount Line Scan Lens. 100 megapixel (3.1 μm pixel) 80 mm lens for dia. 46 mm full-size cameras, well matched to 3.1-5 μm 8K line-scan sensors, TV distortion -0.16%. At a glance: focal length 80 mm; format dia. 46 mm (Full size); resolution 100Megapixel ( Pixel size 3.1 μm ); aperture F3.5~22 Manual iris; mount F.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0202
Formatdia. 46 mm (Full size)
Notes3.1 μm ~ 5 μm 8K well matched
Angle of view (dia. 46 mm, DxHxV)28 x 22.6 x 15.2 deg
FOV (unit not printed; angle of view)28 x 22.6 x 15.2

Optics

Focal length80 mm
ApertureF3.5~22 Manual iris
Distortion-0.16% ; -0.04% @ 200~400 mm MOD
FOV at M.O.D.-88.776 x -59.27 mm
M.O.D.0.25 m
Filter threadM62 x 0.75
Distortion (TV)-0.16% ; -0.04% @ 200~400 mm MOD
FOV at M.O.D. (as printed, unit not stated)88.7

Sensor and imaging

Resolution100Megapixel ( Pixel size 3.1 μm )

Environment and compliance

Operating temperature-10~50°C

Mechanical

Sizedia. 65 x 93.52 mm
Weight595 g
MountF
Optical total length138.0 mm
Shipping weight (estimated)0.93 kg

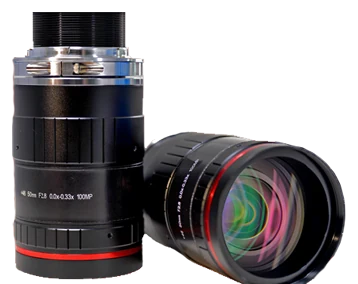

Photo shows lenses of this series; see the specifications and drawing for this model.
