116 mm, 1.5x, V-mount Line Scan Lens (LS-LSL-0166)
Model LS-LSL-0166
- Focal length116 mm
- Magnification1.5X
- MountV-mount
- SensorLarge format
- Working distance143.9 mm
- ApertureF3.8
$3,209.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
116 mm, 1.5x, V-mount Line Scan Lens. Line scan lenses for 16K line scan cameras with 3.5 μm pixels, max image up to 66 mm (some models dia. 82 / 84), max aperture F3.8 and distortion from 0.01% to 0.08%, V mount, in 13 magnifications from 0.26x to 1.7x. At a glance: magnification 1.5X; working distance 143.9 mm; focal length 116 mm; resolution 16K; aperture F3.8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0166 |
|---|---|
| Flange distance | 263.8 mm |
| Lens structure | 8G |
Optics
| Focal length | 116 mm |
|---|---|
| Magnification | 1.5X |
| Max. image circle | dia. 84 |
| Aperture | F3.8 |
| Working distance | 143.9 mm |
| Magnification range | -1.3 / -1.5 / -1.6 |
| Field of view | 54.7 mm |
| Distortion | 0.08% |
| MTF (lp/mm, axis / field) | 200 / 160 (dia. 46.2) / 160 (dia. 84) |
Sensor and imaging
| Resolution | 16K |
|---|
Mechanical
| Mount | V |
|---|---|
| Entrance pupil diameter | dia. 30.6 |
| Size | dia. 55.7 x 71.9 mm |
| Shipping weight (estimated) | 0.94 kg |

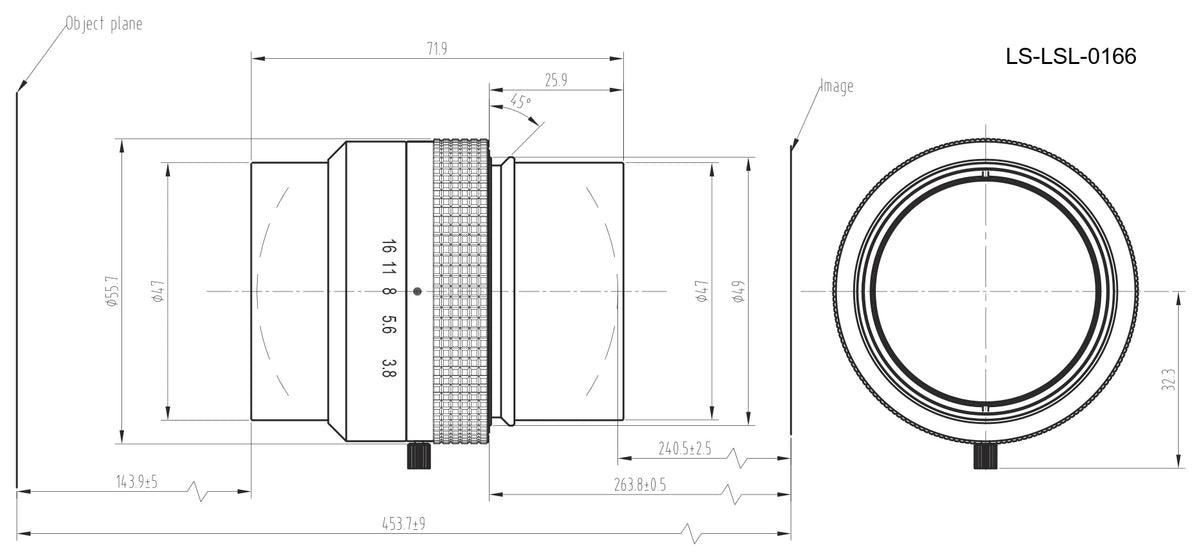

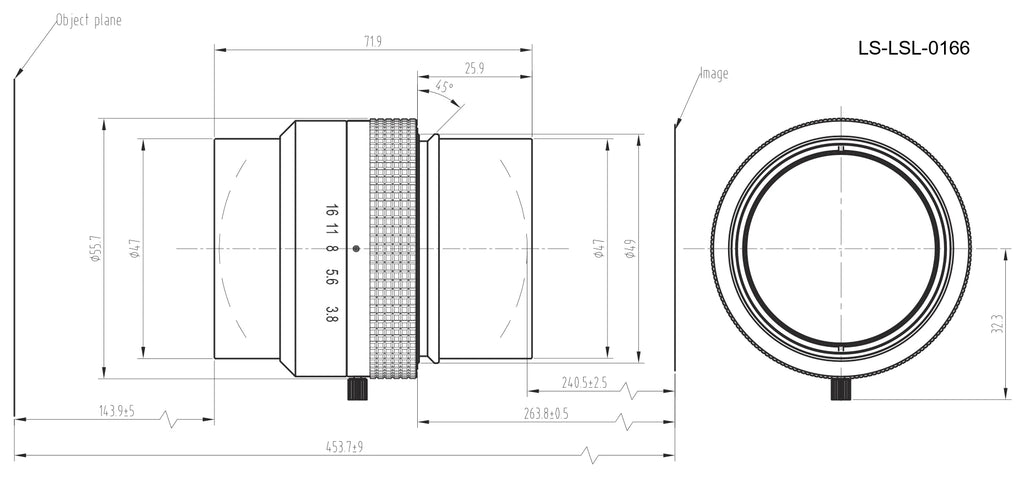

Photo shows lenses of this series; see the specifications and drawing for this model.
