120 mm, 0.3x, V-mount Line Scan Lens (LS-LSL-0160)
Model LS-LSL-0160
- Focal length120 mm
- Magnification0.3X
- MountV-mount
- SensorLarge format
- Working distance586.4 mm
- ApertureF4.0
$3,229.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
120 mm, 0.3x, V-mount Line Scan Lens. Line scan lenses for 16K, 5 um line scan cameras: max image dia. 82 mm with 160 lp/mm, max aperture F3.8 and distortion as low as 1 pixel. Five V-mount models from 0.26x to 3x magnification plus LS-LSL-0168. At a glance: magnification 0.3X; working distance 586.4 mm; focal length 120 mm; format dia. 82 mm; resolution 16K.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0160 |
|---|---|
| Format | dia. 82 mm |
| Flange distance | 166.5 mm |
| W.D. (mm) | 599.5 / 534.64 / 544.5 |
| EFL | 120 mm |
Optics
| Focal length | 120 mm |
|---|---|
| Magnification | 0.3X |
| Aperture | F4.0 |
| Working distance | 586.4 mm |
| Flange focal distance (mm) | 163 / 169.37 / 176 |
| F/# | 4.0-16 |
| Distortion | 0.005% |
| Max image circle | dia. 82 mm |
Sensor and imaging
| Resolution | 16K |
|---|
Mechanical
| Mount | V |
|---|---|
| Shipping weight (estimated) | 0.94 kg |

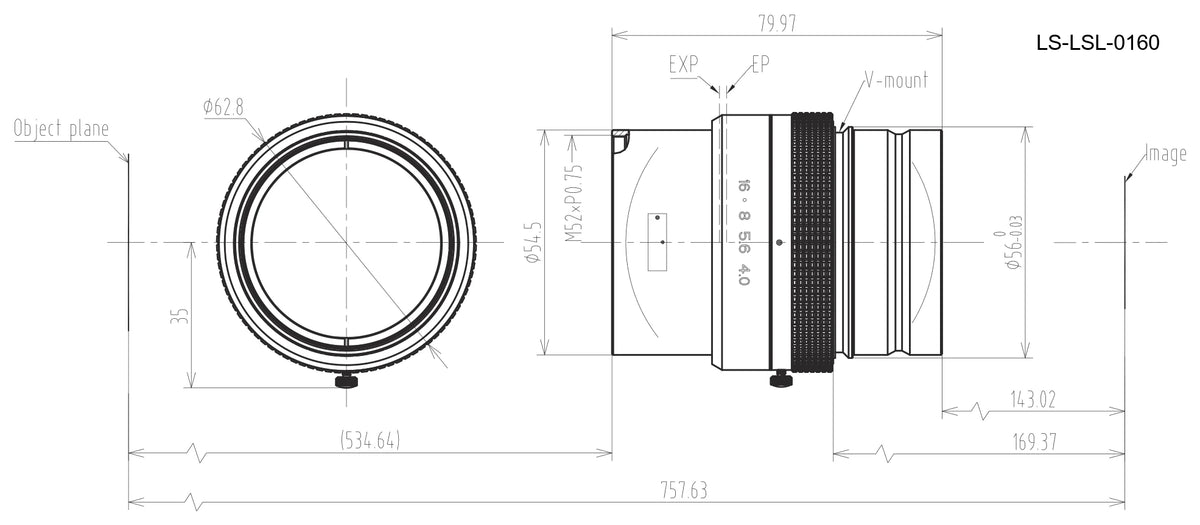

Photo shows lenses of this series; see the specifications and drawing for this model.
