Line scan lenses
116 mm, 1.28x Line Scan Lens (LS-LSL-0168)
Model LS-LSL-0168
- Focal length116 mm
- Magnification1.28X
- SensorLarge format
- Working distance135 mm
- ApertureF3.8
$3,209.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
116 mm, 1.28x Line Scan Lens. Line scan lenses for 16K, 5 um line scan cameras: max image dia. 82 mm with 160 lp/mm, max aperture F3.8 and distortion as low as 1 pixel. Five V-mount models from 0.26x to 3x magnification plus LS-LSL-0168. At a glance: magnification 1.28X; working distance 135 mm; focal length 116 mm; format dia. 84 mm; aperture F3.8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0168 |
|---|---|
| Format | dia. 84 mm |
| Flange distance | 292 mm |
| W.D. (mm) | 135.7 / 127.2 / 121 |
| EFL | 116 mm |
| FOV | 11.3 deg |
| Max image | dia. 84 mm |
Optics
| Focal length | 116 mm |
|---|---|
| Magnification | 1.28X |
| Aperture | F3.8 |
| Working distance | 135 mm |
| Flange focal distance (mm) | 292.9 / 322.8 / 350.9 |
| F/# | 3.8 |
| Distortion | 0.0008% |
Mechanical
| Size | dia. 55.7 x 71.9 mm |
|---|---|
| Shipping weight (estimated) | 0.94 kg |

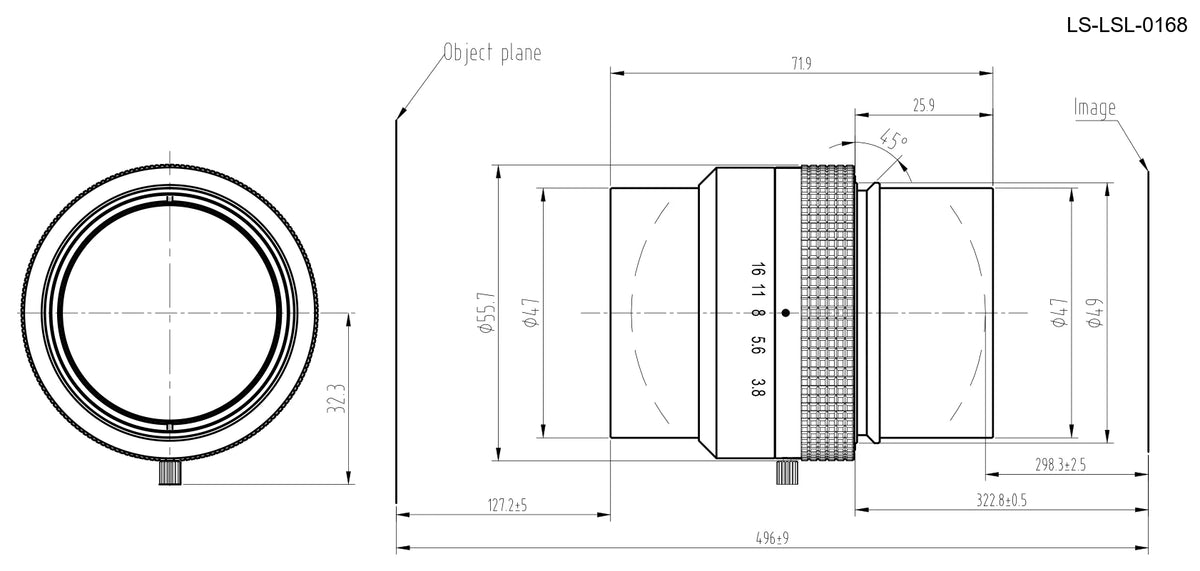

Photo shows lenses of this series; see the specifications and drawing for this model.
