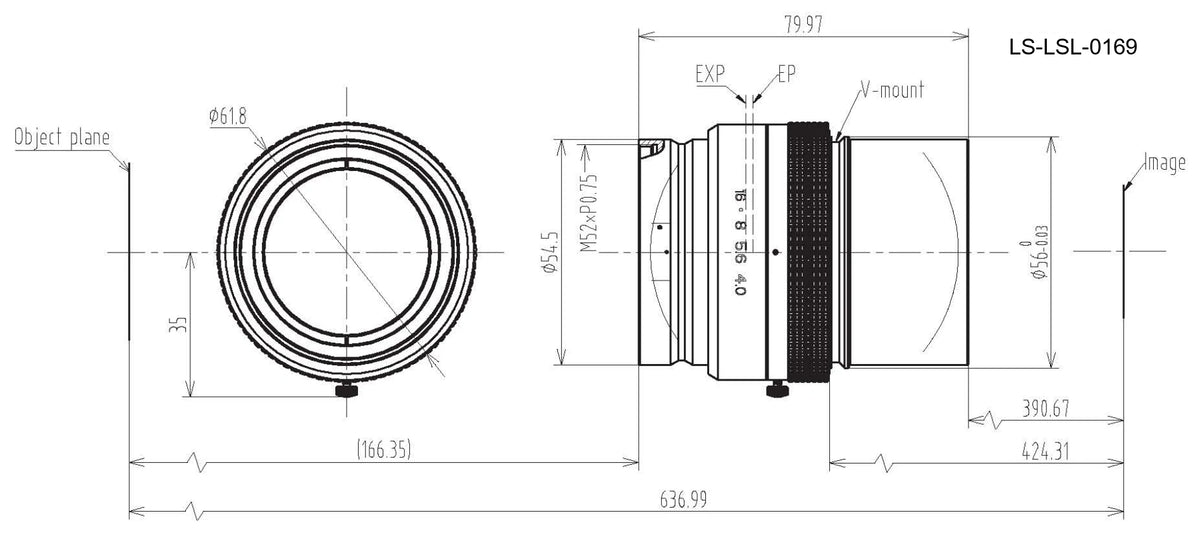

  • LS-LSL-0169 dimensions (mm)

Line scan lenses

120 mm, 2x, V-mount Line Scan Lens (LS-LSL-0169)

Model LS-LSL-0169

  • Focal length120 mm
  • Magnification2X
  • MountV-mount
  • SensorLarge format
  • Working distance166.4 mm
  • ApertureF4.0
$3,229.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

120 mm, 2x, V-mount Line Scan Lens (LS-LSL-0169)LS-LSL-0169

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

120 mm, 2x, V-mount Line Scan Lens. Line scan lenses for 16K, 5 um line scan cameras: max image dia. 82 mm with 160 lp/mm, max aperture F3.8 and distortion as low as 1 pixel. Five V-mount models from 0.26x to 3x magnification plus LS-LSL-0168. At a glance: magnification 2X; working distance 166.4 mm; focal length 120 mm; format dia. 82 mm; resolution 16K.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0169
Formatdia. 82 mm
Flange distance637 mm
W.D. (mm)179 / 166.35 / 154
EFL120 mm

Optics

Focal length120 mm
Magnification2X
ApertureF4.0
Working distance166.4 mm
Flange focal distance (mm)380 / 424.31 / 482
F/#4.0-16
Distortion0.002%
Max image circledia. 82 mm

Sensor and imaging

Resolution16K

Mechanical

MountV
Shipping weight (estimated)0.94 kg

Photo shows lenses of this series; see the specifications and drawing for this model.
