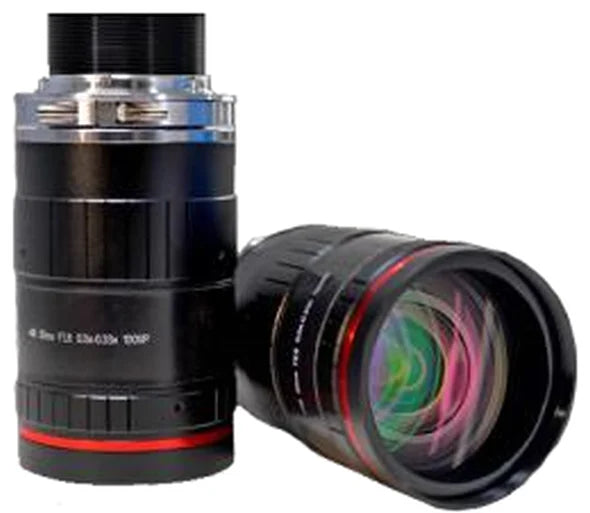

50 mm, 100 MP, F-mount Line Scan Lens (LS-LSL-0194)

Model LS-LSL-0194

Focal length50 mm
MountF-mount
SensorLarge format
Working distance150 mm to infinity
ApertureF2.8~22 Manual iris
Resolution100Megapixel ( Pixel size 3.1 μm )

$3,219.00

Ships in 2-3 weeks

0.89 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

50 mm, 100 MP, F-mount Line Scan Lens. 100 megapixel (3.1 μm pixel) 50 mm lens for dia. 46 mm full-size line-scan and area cameras, magnification 0.05x to 0.35x, TV distortion -0.44%. At a glance: working distance 150 mm to infinity; focal length 50 mm; format dia. 46 mm (Full size); resolution 100Megapixel ( Pixel size 3.1 μm ); aperture F2.8~22 Manual iris.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LSL-0194
Format	dia. 46 mm (Full size)
Notes	0.05x~0.35x
Angle of view (dia. 46 mm, DxHxV)	45 x 38 x 26 deg
FOV (unit not printed; angle of view)	45 x 38 x 26

Optics

Focal length	50 mm
Aperture	F2.8~22 Manual iris
Distortion	-0.44% ; -0.35% @ 200~400 mm MOD
FOV at M.O.D.	-106.56 x -70.9258 mm
M.O.D.	0.15 m
Filter thread	M40.5 x 0.5
Distortion (TV)	-0.44% ; -0.35% @ 200~400 mm MOD
FOV at M.O.D. (as printed, unit not stated)	106
Max image circle	dia. 46 mm (3.1 um pixel)
Working distance	150 mm to infinity

Sensor and imaging

Resolution	100Megapixel ( Pixel size 3.1 μm )
Sensor class	3.1 um pixel, 100 MP

Environment and compliance

Operating temperature	-10~50°C

Mechanical

Size	dia. 58 x 90.88 mm
Weight	566 g
Mount	F
Optical total length	137.3 mm
Mount options	M42, M58, M72, F
Shipping weight (estimated)	0.89 kg
