114 mm, 0.26x, V-mount Line Scan Lens (LS-LSL-0170)
Model LS-LSL-0170
- Focal length114 mm
- Magnification0.26X
- MountV-mount
- SensorLarge format
- Working distance497.85 mm
- ApertureF4.2
$3,209.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
114 mm, 0.26x, V-mount Line Scan Lens. Line scan lenses for 16K line scan cameras with 3.5 μm pixels, max image up to 66 mm (some models dia. 82 / 84), max aperture F3.8 and distortion from 0.01% to 0.08%, V mount, in 13 magnifications from 0.26x to 1.7x. At a glance: magnification 0.26X; working distance 497.85 mm; focal length 114 mm; resolution 16K; aperture F4.2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0170 |
|---|---|
| Flange distance | 128 mm |
| Lens structure | 8G |
Optics
| Focal length | 114 mm |
|---|---|
| Magnification | 0.26X |
| Max. image circle | dia. 66 |
| Aperture | F4.2 |
| Working distance | 497.85 mm |
| Magnification range | 0.23X / 0.26X / 0.28X |
| Field of view | 28.6° |
| Distortion | 0.01% |
| MTF (lp/mm, axis / field) | 200 / 160 (dia. 46.2) / 160 (dia. 66) |
Sensor and imaging
| Resolution | 16K |
|---|
Mechanical
| Mount | V |
|---|---|
| Entrance pupil diameter | 27.12 |
| Size | dia. 55.7 x 72.06 mm |
| Shipping weight (estimated) | 0.94 kg |

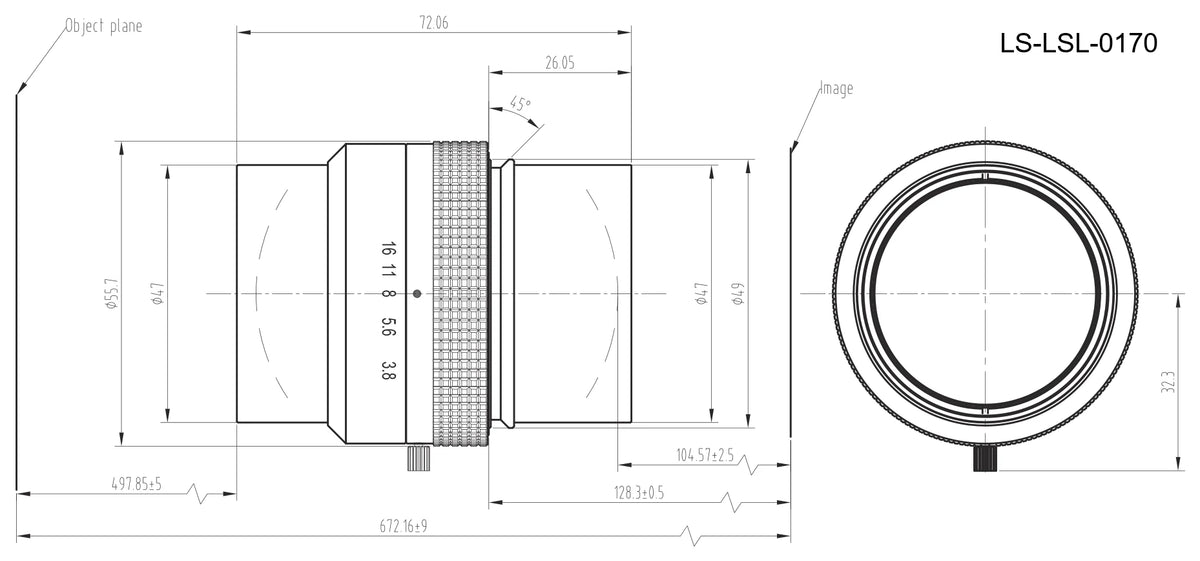

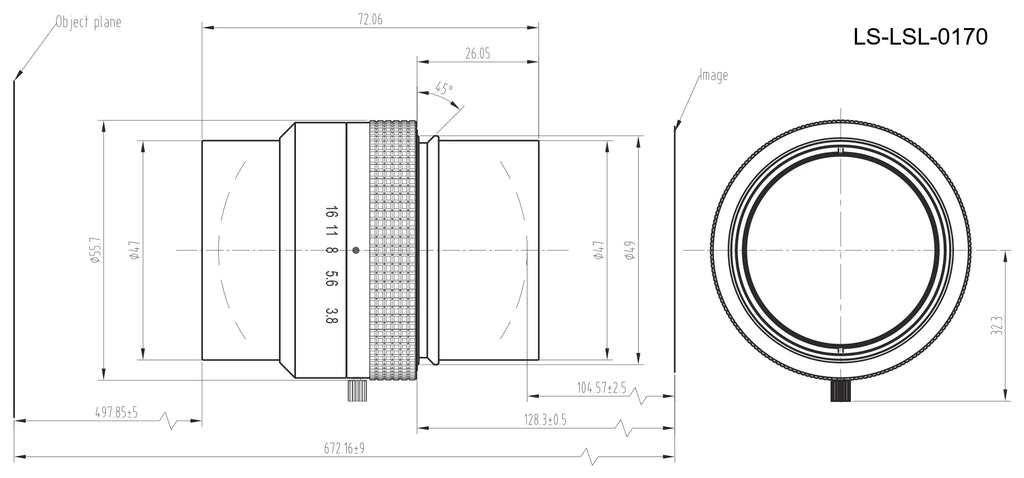

Photo shows lenses of this series; see the specifications and drawing for this model.
