Line scan lenses
35 mm, 100 MP, V-mount Line Scan Lens (LS-LSL-0187)
Model LS-LSL-0187
- Focal length35mm
- MountV-mount
- SensorLarge format
- ApertureF2.8~16 Manual iris
- Resolution100Megapixel ( Pixel size 3.1μm )
$3,149.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 100 MP, V-mount Line Scan Lens. 100 megapixel (3.1 µm) 35 mm F2.8 line scan lens for full-size dia. 46 mm sensors, TV distortion -0.15%, magnification 0.035x-0.31x, F or V mount. At a glance: focal length 35mm; format dia. 46mm ( Full size ); resolution 100Megapixel ( Pixel size 3.1μm ); aperture F2.8~16 Manual iris; mount V.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0187 |
|---|---|
| Format | dia. 46mm ( Full size ) |
| FOV | 64 x 54.5 x 37.7 ( Sensor 37.9 x 25.2mm ) |
| CRA | 20.1° |
| Notes | Max TTL122.5mm; B.F.L 20.2mm; 14G; >85% |
Optics
| Focal length | 35mm |
|---|---|
| Aperture | F2.8~16 Manual iris |
| Distortion (TV) | -0.15% |
| Relative illumination | 38.7% |
| M.O.D. | 100mm |
Sensor and imaging
| Resolution | 100Megapixel ( Pixel size 3.1μm ) |
|---|
Environment and compliance
| Operating temperature | -10~50°C |
|---|
Mechanical
| Filter size | M52 x 0.75 |
|---|---|

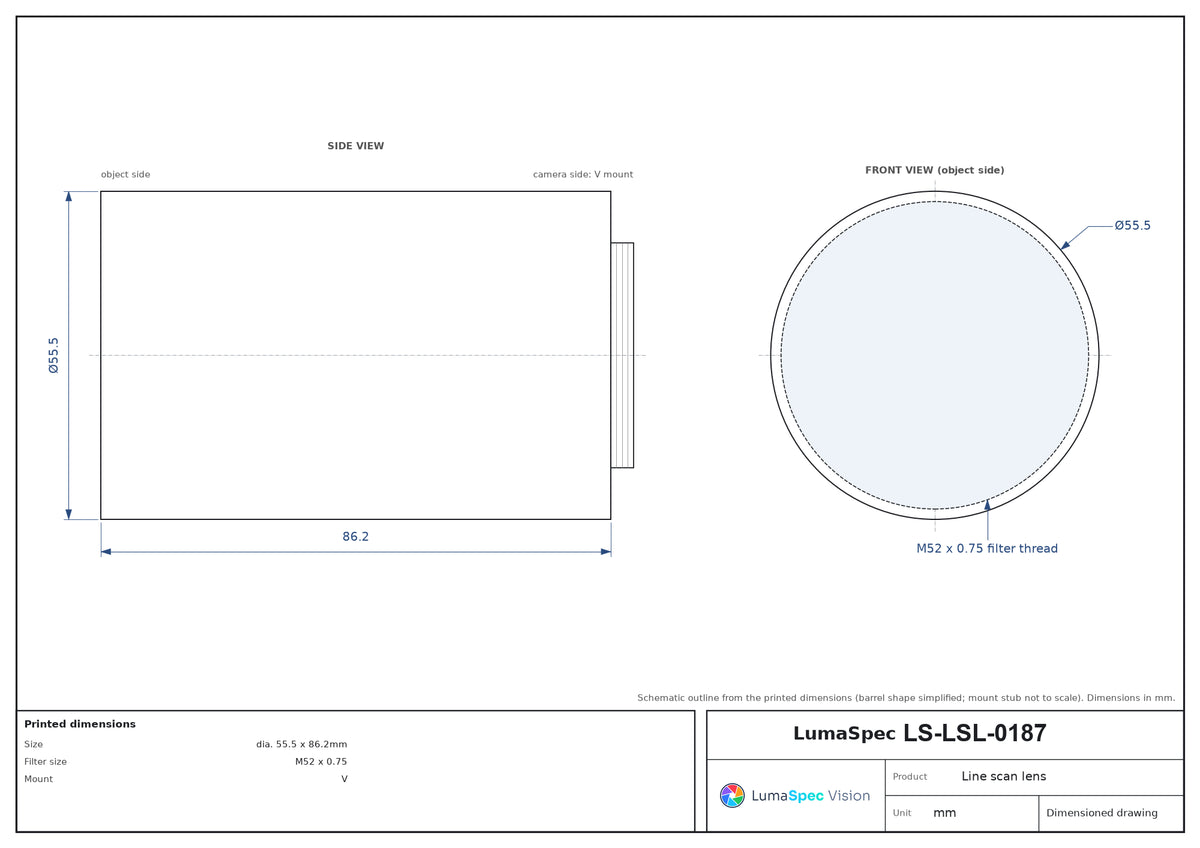

| Size | dia. 55.5 x 86.2mm |
| Mount | V |
| Shipping weight (estimated) | 0.94 kg |
