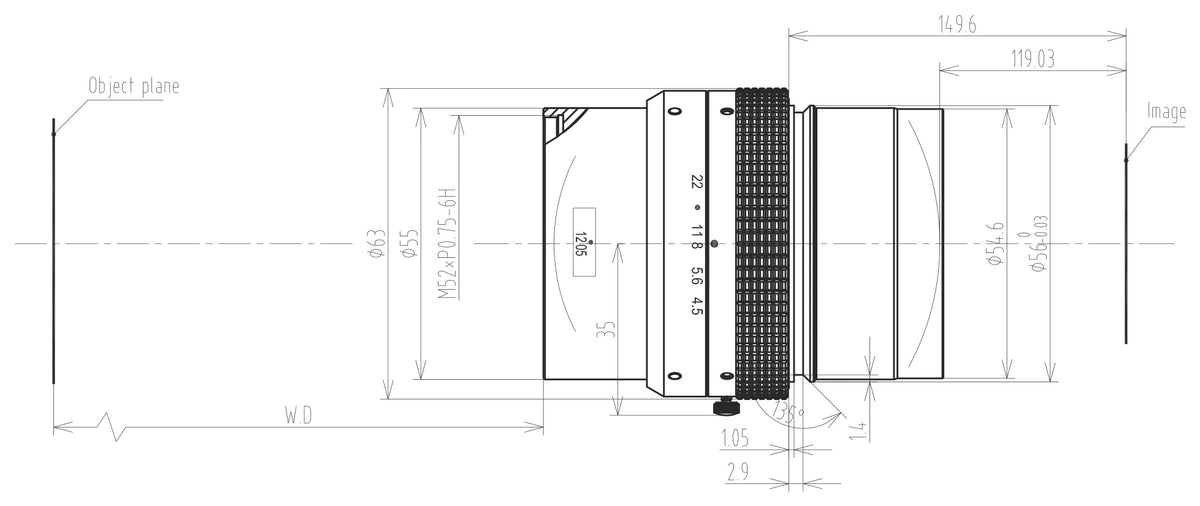

  • LS-LSL-0154 dimensions (mm)

Line scan lenses

116 mm, 0.5x, V-mount Line Scan Lens, WD 291.7 mm (LS-LSL-0154)

Model LS-LSL-0154

  • Focal length116 mm
  • Magnification0.5X
  • MountV-mount
  • SensorLarge format
  • Working distance291.7 mm
  • ApertureF4.5
$2,339.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

116 mm, 0.5x, V-mount Line Scan Lens, WD 291.7 mm (LS-LSL-0154)LS-LSL-0154

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

116 mm, 0.5x, V-mount Line Scan Lens. Line scan lenses for 8K-12K, 5 um line scan cameras: max image 66 mm, max aperture F4.5, magnification 0.2x-1.24x and super-low distortion. Seven V-mount 116 mm models. At a glance: magnification 0.5X; working distance 291.7 mm; focal length 116 mm; format dia. 66 mm; resolution 12K.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0154
Formatdia. 66 mm
Flange distance149.6 mm
W.D. (mm)318.2 / 291.7 / 251.9
FOV29 deg
Max imagedia. 62 mm

Optics

Focal length116 mm
ApertureF4.5
Magnification0.5X
Working distance291.7 mm
Flange focal distance (mm)143.8 / 149.6 / 161.6
Distortion<0.01%

Sensor and imaging

Resolution12K

Mechanical

MountV
Shipping weight (estimated)0.94 kg

Photo shows lenses of this series; see the specifications and drawing for this model.
