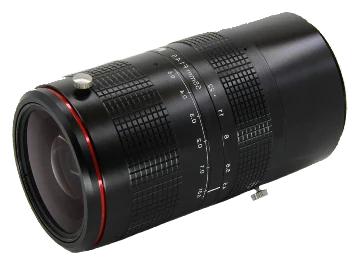

55 mm, 0.5x, 150 MP, M72-mount Line Scan Lens (LS-LSL-0196)
  • 55 mm, 0.5x, 150 MP, M72-mount Line Scan Lens (LS-LSL-0196)

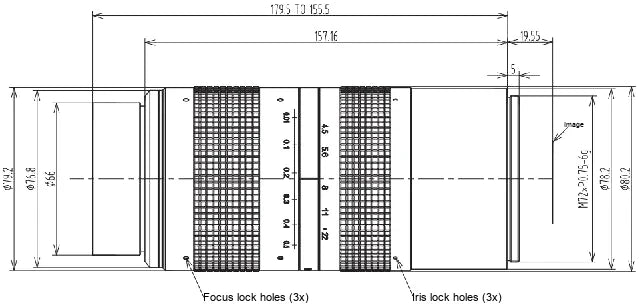

  • LS-LSL-0196 dimensions (mm)

Line scan lenses

55 mm, 0.5x, 150 MP, M72-mount Line Scan Lens (LS-LSL-0196)

Model LS-LSL-0196

  • Focal length55mm
  • Magnification0.5x ~ 0.01x
  • MountM72
  • SensorLarge format
  • Working distance97.55/128.3/179.1/280.6/585.9/6074 mm
  • ApertureF4.5~22
$3,239.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

55 mm, 0.5x, 150 MP, M72-mount Line Scan Lens (LS-LSL-0196)LS-LSL-0196

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

55 mm, 0.5x, 150 MP, M72-mount Line Scan Lens. A 55 mm F4.5-22 M72-mount line scan lens for 150-megapixel, 3.5 um sensors with a dia. 67 mm image, 0.5x-0.01x magnification and 0.01% distortion, for automation and measurement. At a glance: magnification 0.5x ~ 0.01x; focal length 55mm; format dia. 67; resolution 3.5μm (150 Megapixel); aperture F4.5~22.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0196
Angle of view29°
Formatdia. 67
EFL (PDF)55 +/-5%
Max formatdia. 67
FOV (as printed, unit not stated)29

Optics

Magnification0.5x ~ 0.01x
Working distance (0.5x/0.4x/0.3x/0.2x/0.1x/0.01x)97.55/128.3/179.1/280.6/585.9/6074 mm
Distortion0.01%
Focal length55mm
ApertureF4.5~22
TV distortion (PDF)<0.05%
Magnification / W.D.0.5x: 97.55 mm; 0.4x: 128.3 mm; 0.3x: 179.1 mm; 0.2x: 280.6 mm; 0.1x: 585.9 mm; 0.01x: 6074 mm
Magnification / working distance0.5x: 97.55 mm; 0.4x: 128.3 mm; 0.3x: 179 mm; 0.2x: 280.6 mm; 0.1x: 585.9 mm; 0.01x: 6074 mm

Sensor and imaging

Resolution3.5μm (150 Megapixel)

Mechanical

MountM72 x P0.75
Sizedia. 79.2 x 69.3mm
Entrance pupil diameter (PDF)dia. 13.6
Size (PDF)dia. 79.2 x 132.3
Shipping weight (estimated)0.94 kg
