Ring light, 120 mm dia., 30°, Blue, wavelength 465 nm (LS-RNG-0518)
  • Ring light, 120 mm dia., 30°, Blue, wavelength 465 nm (LS-RNG-0518)
  • LS-RNG-0518 dimensions (mm)

Ring lights

Ring light, 120 mm dia., 30°, Blue, wavelength 465 nm (LS-RNG-0518)

Model LS-RNG-0518

  • ColourBlue
  • SizeΦ120 × 23 mm
  • Power14 W
  • Wavelength465 nm
$319.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring light, 120 mm dia., 30°, Blue, wavelength 465 nm (LS-RNG-0518)LS-RNG-0518

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-RNG-0518: dimension Φ120 x 23 mm, bore dimension Φ80 mm, irradiation angle 30°, LED rows 3, power 14 W.

Ring Light, 120 mm dia., 30°, Blue. Simple, compact structure, easy to install. Multiple angles and flexible sizes.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0518
Irradiation angle30°

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorBlue
Wavelength465 nm
LED rows3
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power14 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

DimensionΦ120 × 23 mm
Outer dimensionΦ120 mm
Bore dimensionΦ80 mm
Shipping weight (estimated)0.66 kg

Engineering data

Drive and fit the LS-RNG-0518

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V583 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 14 W
Operating temperature0 to 40 °C
Cable length500 mm

Mounting and installation

MountingSee the dimension drawing, Hole positions are not given in the written specifications
Cable0.5 m
ConnectorSMR-03V-B

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

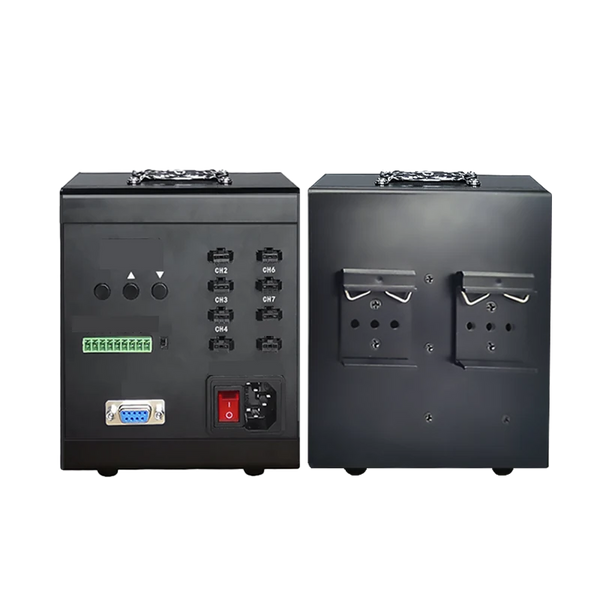

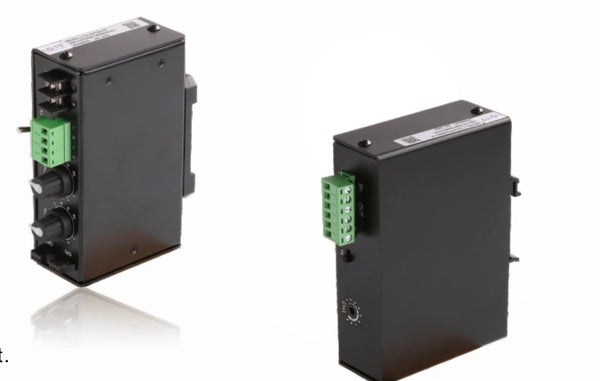

Controllers for this light

20 W per channel at 24 V for this 14 W light

About 15 W per channel at 24 V (from its rated output) for this 14 W light

24 W per channel at 24 V for this 14 W light

24 W per channel at 24 V for this 14 W light

15 W per channel at 24 V for this 14 W light

About 48 W per channel at 24 V (from its rated output) for this 14 W light

Light cables
