Area scan cameras

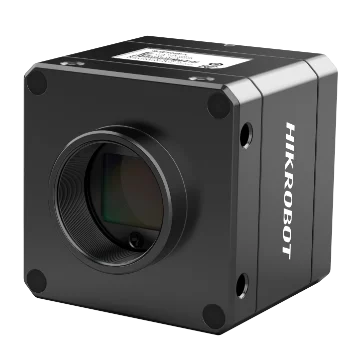

Hikrobot MV-CH250-90XN-C-NN 25 MP CXP-6 area scan camera, GMAX0505, NIR-enhanced, Type-C port, Fanless
Model MV-CH250-90XN-C-NN
Hikrobot MV-CH250-90XN-C-NN 25 MP CXP-6 area scan camera, GMAX0505, NIR-enhanced, Type-C port, Fanless. Resolution 5120 × 5120, pixel size 2.5 µm Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
Datasheet (PDF, Chinese) - MV-CH250-90XN-C-NNUser manual (PDF, Chinese) - MV-CH250-90XN-C-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-CH250-90XN-C-NN
Features
- Resolution 5120 × 5120, pixel size 2.5 µm
- Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
- CXP-6 interface for data transmission
- Compatible with CoaXPress and the GenICam standard
Specifications
| Model | MV-CH250-90XN-C-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1'' |
| Resolution | 5120 × 5120 |
| Max. frame rate | 41.5 fps @5120 × 5120 Mono 8 |
| Dynamic range | 65 dB |
| SNR | 41 dB |
| Gain | 2.0x ~ 5.0x |
| Exposure time | 13 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Near-infrared |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC, CXP-1 supports PoCXP |
| Power consumption | 7.0 W @12 VDC |
| Lens mount | C-Mount |
| Dimension | 50 mm × 50 mm × 45 mm |
| Weight | Approx. 207 g (0.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | Windows XP/7/10/11 32/64bits, Linux 32/64bits |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.39 kg |
