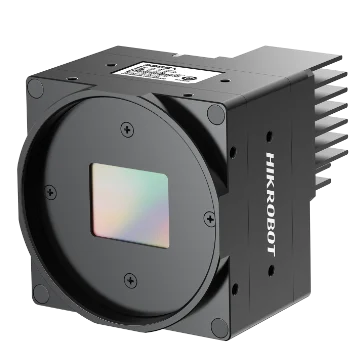

Hikrobot MV-CH250-90YM-M58S-NN V2 25 MP CoaXPress area scan camera, GMAX0505, CXP-12 interface, V2, Mono, M58 connector
Model MV-CH250-90YM-M58S-NN V2
Hikrobot MV-CH250-90YM-M58S-NN V2 25 MP CoaXPress area scan camera, GMAX0505, CXP-12 interface, V2, Mono, M58 connector. Resolution 5120 × 5120, pixel size 2.5 µm Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
Datasheet (PDF, Chinese) - MV-CH250-90YM-M58S-NN V2User manual (PDF, Chinese) - MV-CH250-90YM-M58S-NN V2CAD: 3D STEP + 2D DXF (ZIP) - MV-CH250-90YM-M58S-NN V2
Features
- Resolution 5120 × 5120, pixel size 2.5 µm
- Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
- CXP-12 interface for data transmission
- Compatible with CoaXPress and the GenICam standard
Specifications
| Model | MV-CH250-90YM-M58S-NN V2 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1” |
| Resolution | 5120 × 5120 |
| Max. frame rate | 150 fps @5120 × 5120 Mono 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 2.5 x |
| Exposure time | Ultra-short exposure mode: 3 μs to 8 μs; Normal exposure mode: 10 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Power consumption | 9.9 W@12 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 60 mm × 60 mm × 59 mm (optional heat-sink fins) |
| Weight | Approx. 285 g (0.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | CoaXPress, GenICam |
| Certification | CE, RoHS, KC, UL |
| Shipping weight (estimated) | 0.50 kg |
