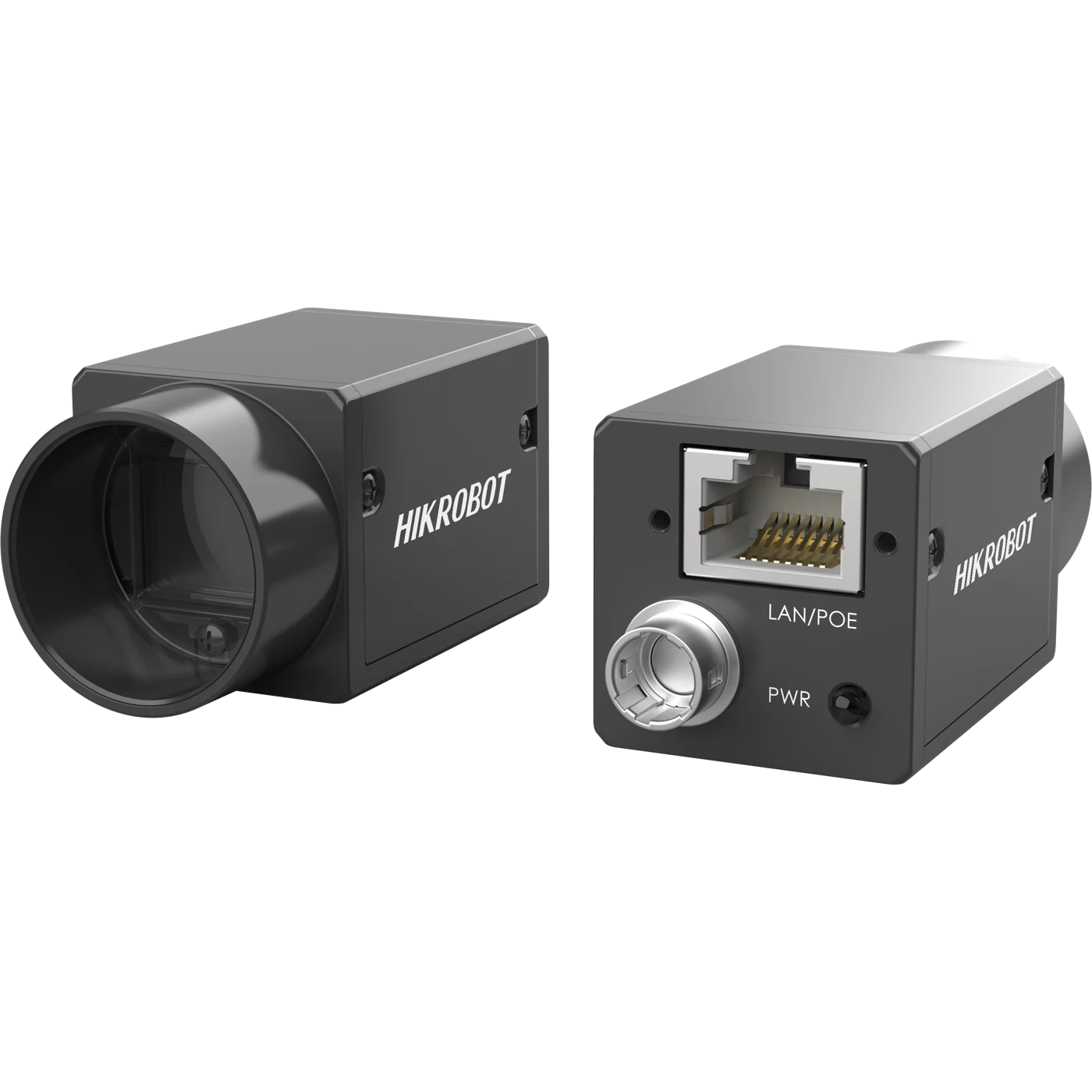

Hikrobot MV-CA060-11GM 6MP Area Scan Camera, GigE, IMX178, Mono

Name: Hikrobot MV-CA060-11GM 6MP Area Scan Camera, GigE, IMX178, Mono
Brand: Hikrobot
SKU: MV-CA060-11GM

Model MV-CA060-11GM

Hikrobot MV-CA060-11GM 6MP Area Scan Camera, GigE, IMX178, Mono. Adopts GigE interface and max. transmission distance of 100 meters without relay. Up to 128 MB local memory for burst transmission and retransmission.

Datasheet (PDF) - MV-CA060-11GM User manual (PDF) - MV-CA060-11GM CAD: 3D STEP + 2D DXF (ZIP) - MV-CA060-11GM

Features

Adopts GigE interface and max. transmission distance of 100 meters without relay.
Up to 128 MB local memory for burst transmission and retransmission.
Supports auto exposure control, LUT, Gamma correction, etc.
Supports hardware trigger, software trigger, etc.
Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

Specifications

Model	MV-CA060-11GM
Brand	Hikrobot
Sensor type	CMOS, rolling shutter
Sensor model	Sony® IMX178
Pixel size	2.4 μm × 2.4 μm
Sensor size	1/1.8"
Resolution	3072 × 2048
Max. frame rate	17 fps @ 3072 × 2048
Dynamic range	71.3 dB
SNR	41.3 dB
Gain	0 dB to 20 dB
Exposure time	27 μs to 2.5 sec
Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset
Mono	Mono
Pixel format	Mono 8/10/10p/12/12p
Binning	Supports 1 × 1, 2 × 2
Decimation	Not support
Reverse image	Supports horizontal and vertical reverse image output
Image buffer	128 MB
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	12 VDC, supports PoE
Power consumption	Typ. 2.5 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 68 g (0.15 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.20 kg
