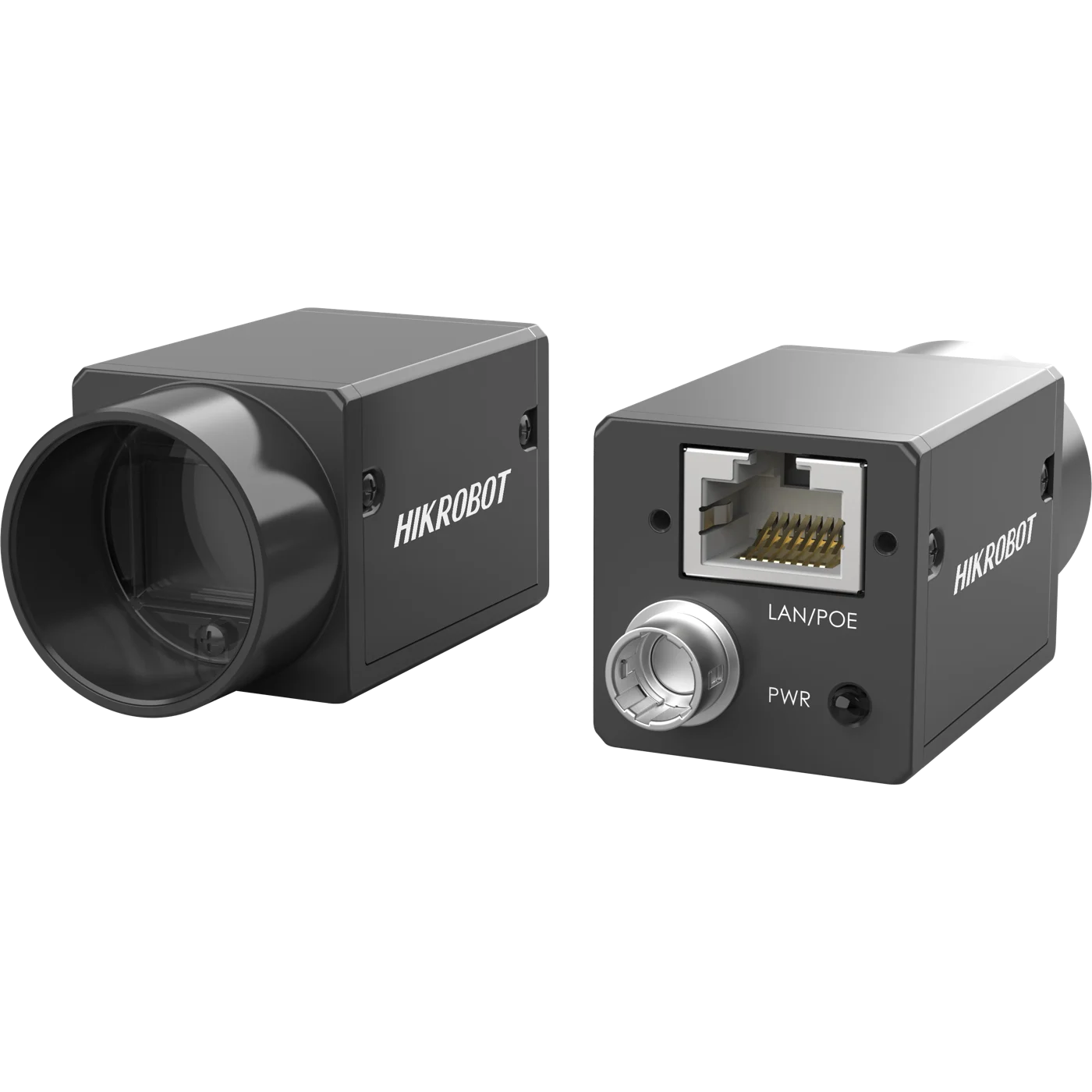

Hikrobot MV-CA004-10GC 0.4MP Area Scan Camera, GigE, IMX287, Color
Model MV-CA004-10GC
Hikrobot MV-CA004-10GC 0.4MP Area Scan Camera, GigE, IMX287, Color. Adopts GigE interface and max. transmission distance of 100 meters without relay. Supports auto and manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, etc.
Datasheet (PDF) - MV-CA004-10GCUser manual (PDF) - MV-CA004-10GCCAD: 3D STEP + 2D DXF (ZIP) - MV-CA004-10GC
Features
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports auto and manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, etc.
- Up to 128 MB local memory for burst transmission and retransmission.
- Compatible with GigE Vision Protocol V1.2, GenlCam standard and third-party software meeting with GigE Vision Protocol.
Specifications
| Model | MV-CA004-10GC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX287 |
| Pixel size | 6.9 μm × 6.9 μm |
| Sensor size | 1/2.9" |
| Resolution | 720 × 540 |
| Max. frame rate | 312.9 fps @ 720 × 540 |
| Dynamic range | 74 dB |
| SNR | 41 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 1 μs to 10 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode |
| Mono | Color |
| Pixel format | Mono 8/10/12, Bayer GR 8/10/10p/12/12p; YUV 422 Packed, YUV422_YUYV_Packed, RGB 8 |
| Binning | Not support |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image |
| Image buffer | 128 MB |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 3.1 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 68 g (0.15 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V1.2, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
