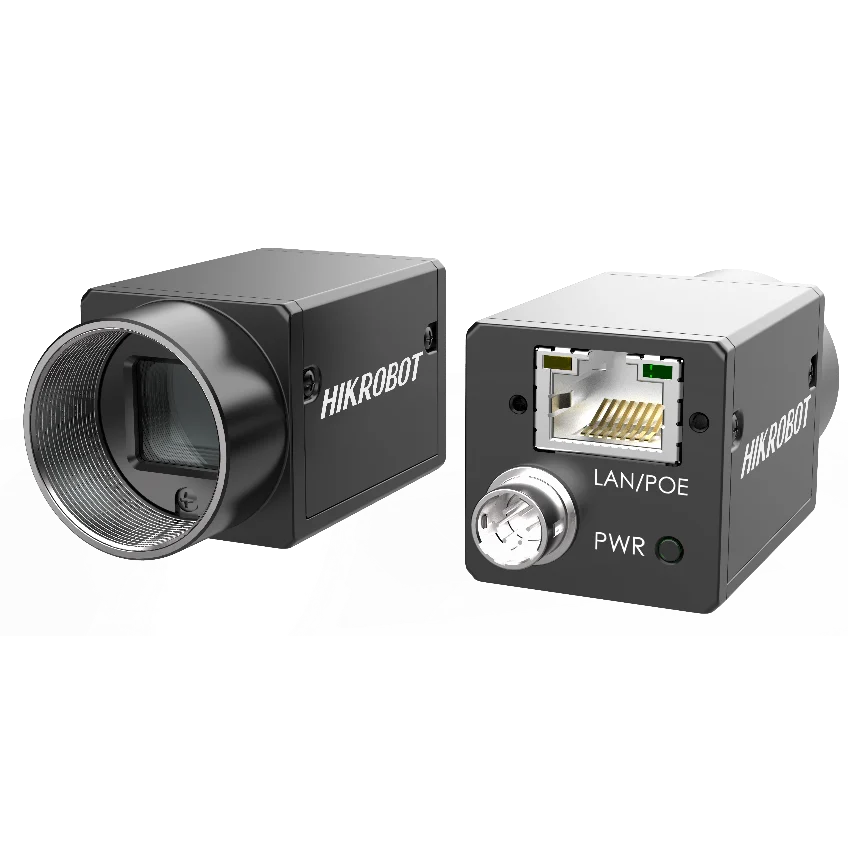

Hikrobot MV-CA013-A0GC 1.3MP Area Scan Camera, GigE, Color

Name: Hikrobot MV-CA013-A0GC 1.3MP Area Scan Camera, GigE, Color
Brand: Hikrobot
SKU: MV-CA013-A0GC

Model MV-CA013-A0GC

Hikrobot MV-CA013-A0GC 1.3MP Area Scan Camera, GigE, Color. Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc. Supports hardware trigger, software trigger and free run, etc.

Datasheet (PDF) - MV-CA013-A0GC User manual (PDF) - MV-CA013-A0GC CAD: 3D STEP + 2D DXF (ZIP) - MV-CA013-A0GC

Features

Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc.
Supports hardware trigger, software trigger and free run, etc.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Specifications

Model	MV-CA013-A0GC
Brand	Hikrobot
Sensor type	CMOS, global shutter
Pixel size	4.8 μm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	92.8 fps @ 1280 × 1024
Dynamic range	54 dB
SNR	40.6 dB
Gain	0 dB to 16 dB
Exposure time	9 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono	Color
Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 (YUYV) Packed, YUV 422 Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.7 W@12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 100 g (0.22 lb.)
Ingress protection	IP30
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.24 kg
