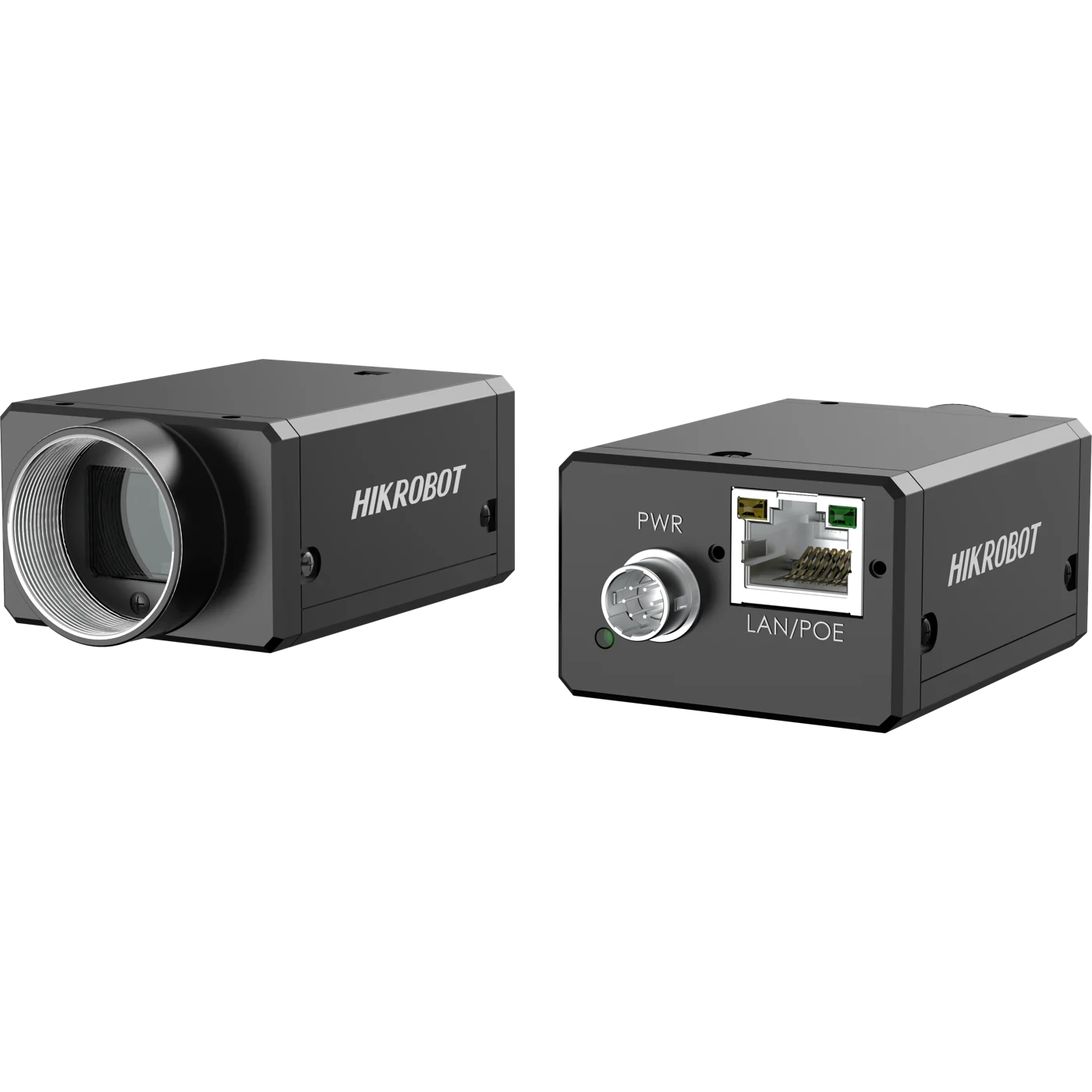

Hikrobot MV-CA017-10GM 1.7MP Area Scan Camera, GigE, IMX432, Mono

Name: Hikrobot MV-CA017-10GM 1.7MP Area Scan Camera, GigE, IMX432, Mono
Brand: Hikrobot
SKU: MV-CA017-10GM

Model MV-CA017-10GM

Hikrobot MV-CA017-10GM 1.7MP Area Scan Camera, GigE, IMX432, Mono. Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc. Supports 2D noise reduction function.

Datasheet (PDF) - MV-CA017-10GM User manual (PDF) - MV-CA017-10GM CAD: 3D STEP + 2D DXF (ZIP) - MV-CA017-10GM

Features

Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.
Supports 2D noise reduction function.
Supports high sensitivity mode and high full well mode.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Specifications

Model	MV-CA017-10GM
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX432
Pixel size	9 μm × 9 μm
Sensor size	1.1"
Resolution	1608 × 1104
Max. frame rate	68.5 fps @ 1608 × 1104
Dynamic range	72.44 dB
SNR	40 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 5 μs; Standard exposure mode: 6 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono	Mono
Pixel format	Mono 8/10/10p/12/12p
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	12 VDC, supports PoE
Power consumption	Typ. 4.2 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Weight	Approx. 100 g (0.22 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.24 kg
