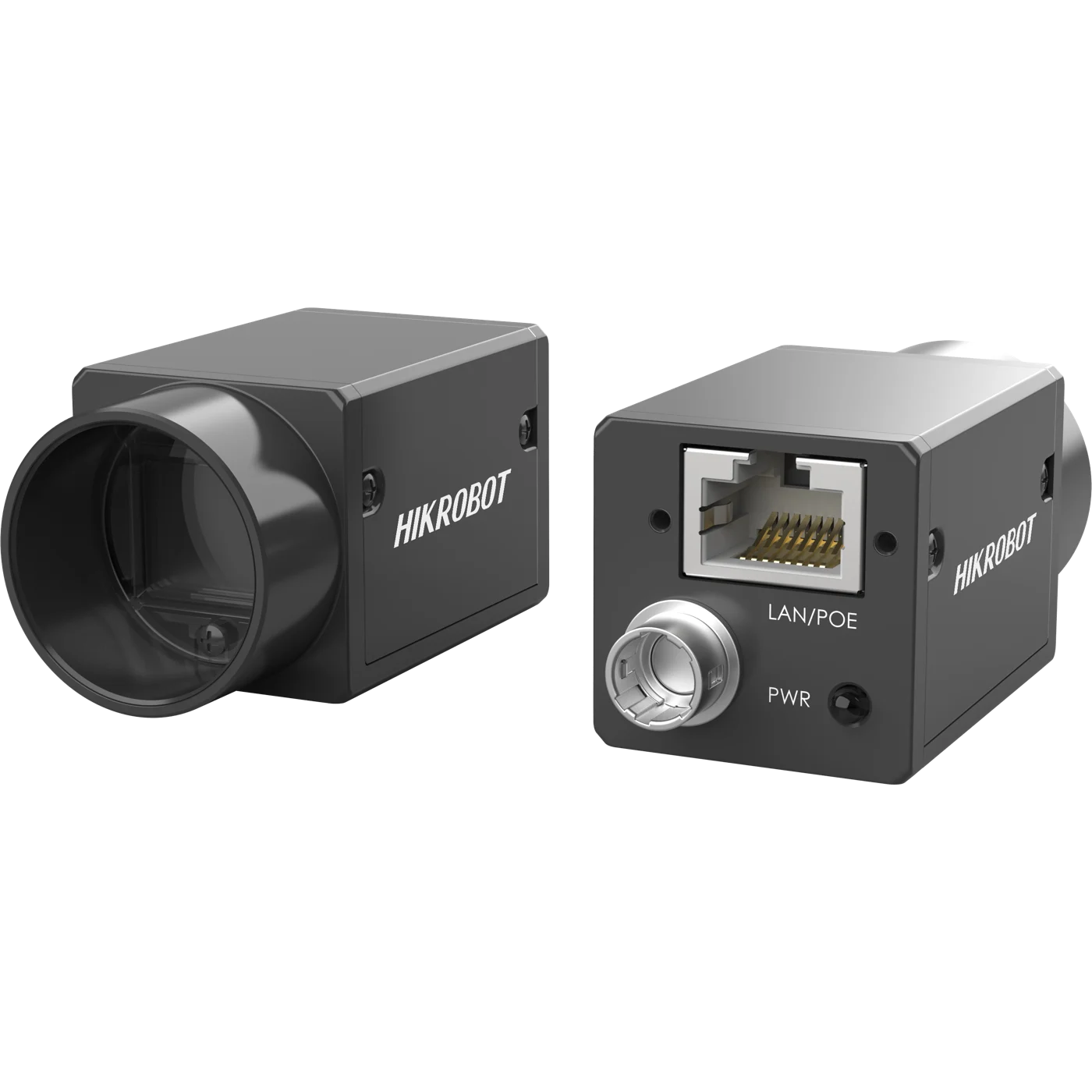

Hikrobot MV-CA050-20GM 5MP Area Scan Camera, GigE, PYTHON5000, Mono

Name: Hikrobot MV-CA050-20GM 5MP Area Scan Camera, GigE, PYTHON5000, Mono
Brand: Hikrobot
SKU: MV-CA050-20GM

Model MV-CA050-20GM

Hikrobot MV-CA050-20GM 5MP Area Scan Camera, GigE, PYTHON5000, Mono. Adopts GigE interface and max. transmission distance of 100 meters without relay. Up to 128 MB local memory for burst transmission and retransmission.

Datasheet (PDF) - MV-CA050-20GM User manual (PDF) - MV-CA050-20GM CAD: 3D STEP + 2D DXF (ZIP) - MV-CA050-20GM

Features

Adopts GigE interface and max. transmission distance of 100 meters without relay.
Up to 128 MB local memory for burst transmission and retransmission.
Supports auto exposure control, LUT, Gamma correction, etc.
Supports hardware trigger, software trigger, etc.
Compatible with GigE Vision V1.2 Protocol and the third-party software based on the protocol.

Specifications

Model	MV-CA050-20GM
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	PYTHON5000
Pixel size	4.8 μm × 4.8 μm
Sensor size	1"
Resolution	2592 × 2048
Max. frame rate	22 fps @ 2592 × 2048
Dynamic range	57.5 dB
SNR	39.5 dB
Gain	0 dB to 15 dB
Exposure time	65 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono	Mono
Pixel format	Mono 8/10/10p/12/12p
Binning	Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Image buffer	128 MB
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	12 VDC, supports PoE
Power consumption	Typ. 3.3 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 68 g (0.15 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	GigE Vision V1.2, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.20 kg
