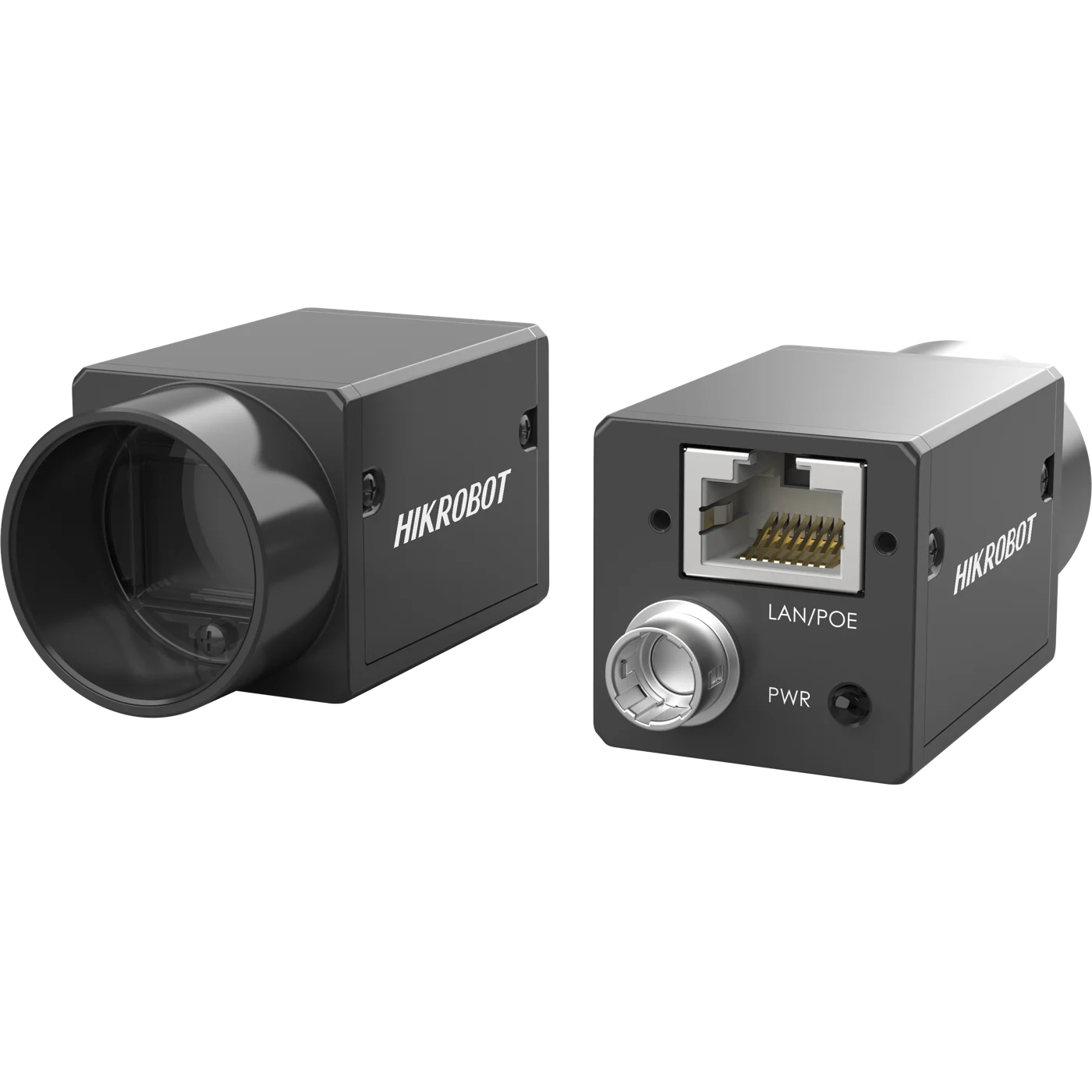

Hikrobot MV-CA016-10GC 1.6MP Area Scan Camera, GigE, IMX273, Color

Name: Hikrobot MV-CA016-10GC 1.6MP Area Scan Camera, GigE, IMX273, Color
Brand: Hikrobot
SKU: MV-CA016-10GC

Model MV-CA016-10GC

Hikrobot MV-CA016-10GC 1.6MP Area Scan Camera, GigE, IMX273, Color. Adopts GigE interface and max. transmission distance of 100 meters without relay. Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.

Datasheet (PDF) - MV-CA016-10GC User manual (PDF) - MV-CA016-10GC CAD: 3D STEP + 2D DXF (ZIP) - MV-CA016-10GC

Features

Adopts GigE interface and max. transmission distance of 100 meters without relay.
Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
Up to 128 MB local memory for burst transmission and retransmission.
Supports hardware trigger, software trigger, etc.
Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

Specifications

Model	MV-CA016-10GC
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX273
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9"
Resolution	1440 × 1080
Max. frame rate	78.2 fps @ 1440 × 1080
Dynamic range	71.4 dB
SNR	41 dB
Gain	Gain 0 dB to 20 dB
Exposure time	1 μs to 10 sec
Exposure mode	Off/ Once /Continuous exposure mode
Mono	Color
Pixel format	Mono8/10/12, Bayer RG 8/10/10p/12/12p; YUV 422 Packed, YUV422_YUYV_Packed, RGB8
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Image buffer	128 MB
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 3 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 68 g (0.15 lb)
Ingress protection	IP 30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenlCam
Certification	CE, RoHS
Shipping weight (estimated)	0.20 kg
