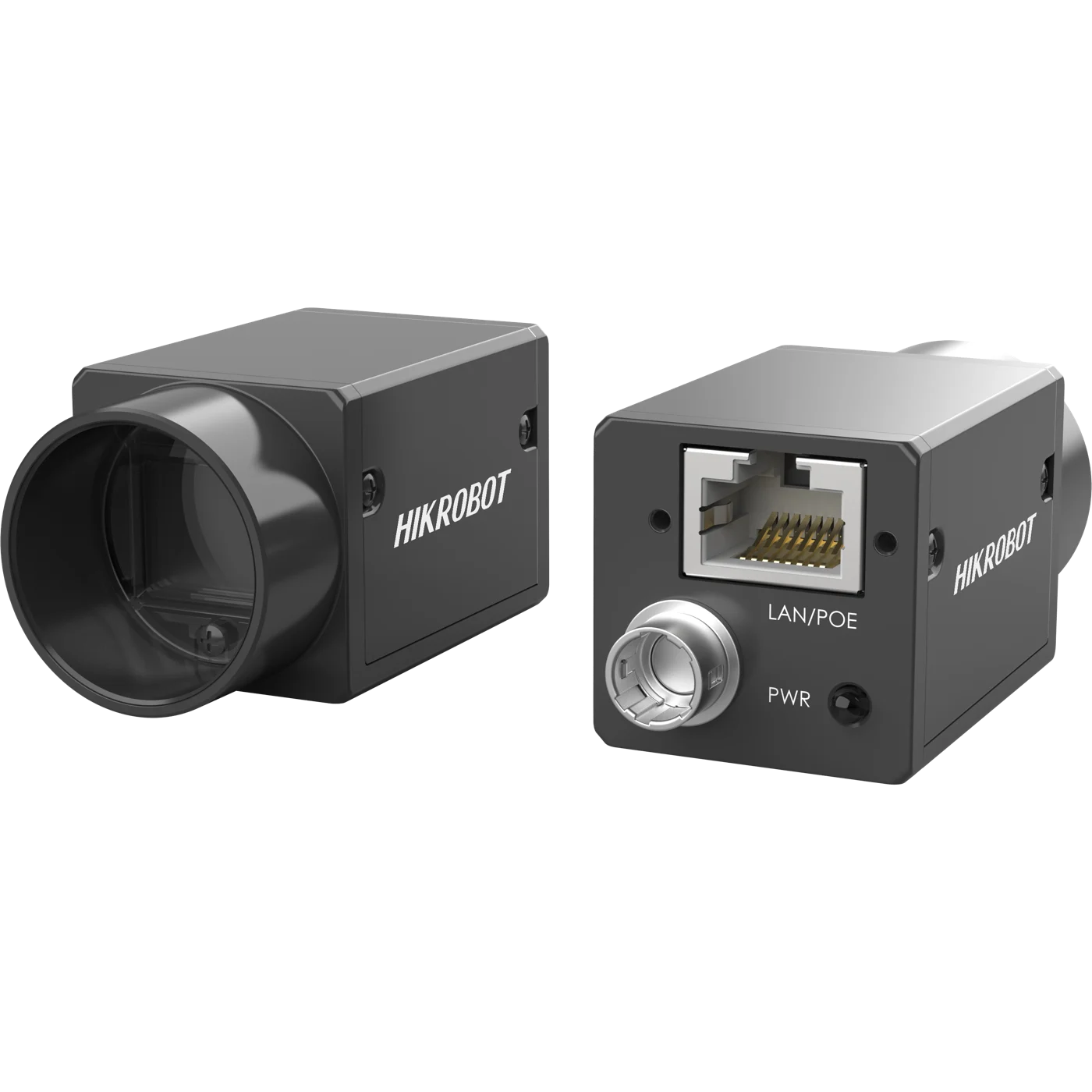

Hikrobot MV-CA013-20GM 1.3MP Area Scan Camera, GigE, PYTHON1300, Mono

Name: Hikrobot MV-CA013-20GM 1.3MP Area Scan Camera, GigE, PYTHON1300, Mono
Brand: Hikrobot
SKU: MV-CA013-20GM

Model MV-CA013-20GM

Hikrobot MV-CA013-20GM 1.3MP Area Scan Camera, GigE, PYTHON1300, Mono. Adopts GigE interface and max. transmission distance of 100 meters without relay. Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.

Datasheet (PDF) - MV-CA013-20GM User manual (PDF) - MV-CA013-20GM CAD: 3D STEP + 2D DXF (ZIP) - MV-CA013-20GM

Features

Adopts GigE interface and max. transmission distance of 100 meters without relay.
Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
Up to 128 MB local memory for burst transmission and retransmission.
Supports hardware trigger, software trigger, etc.
Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocol and standard.

Specifications

Model	MV-CA013-20GM
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	OnSemi PYTHON1300
Pixel size	4.8 μm × 4.8 μm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	90 fps @ 1280 × 1024
Dynamic range	59.6 dB
SNR	39.8 dB
Gain	0 dB to 15 dB
Exposure time	38 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono	Mono
Pixel format	Mono 8/10/10p/12/12p
Binning	Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Image buffer	128 MB
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	12 VDC, supports PoE
Power consumption	Typ. 2.7 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 68 g (0.15 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.20 kg
