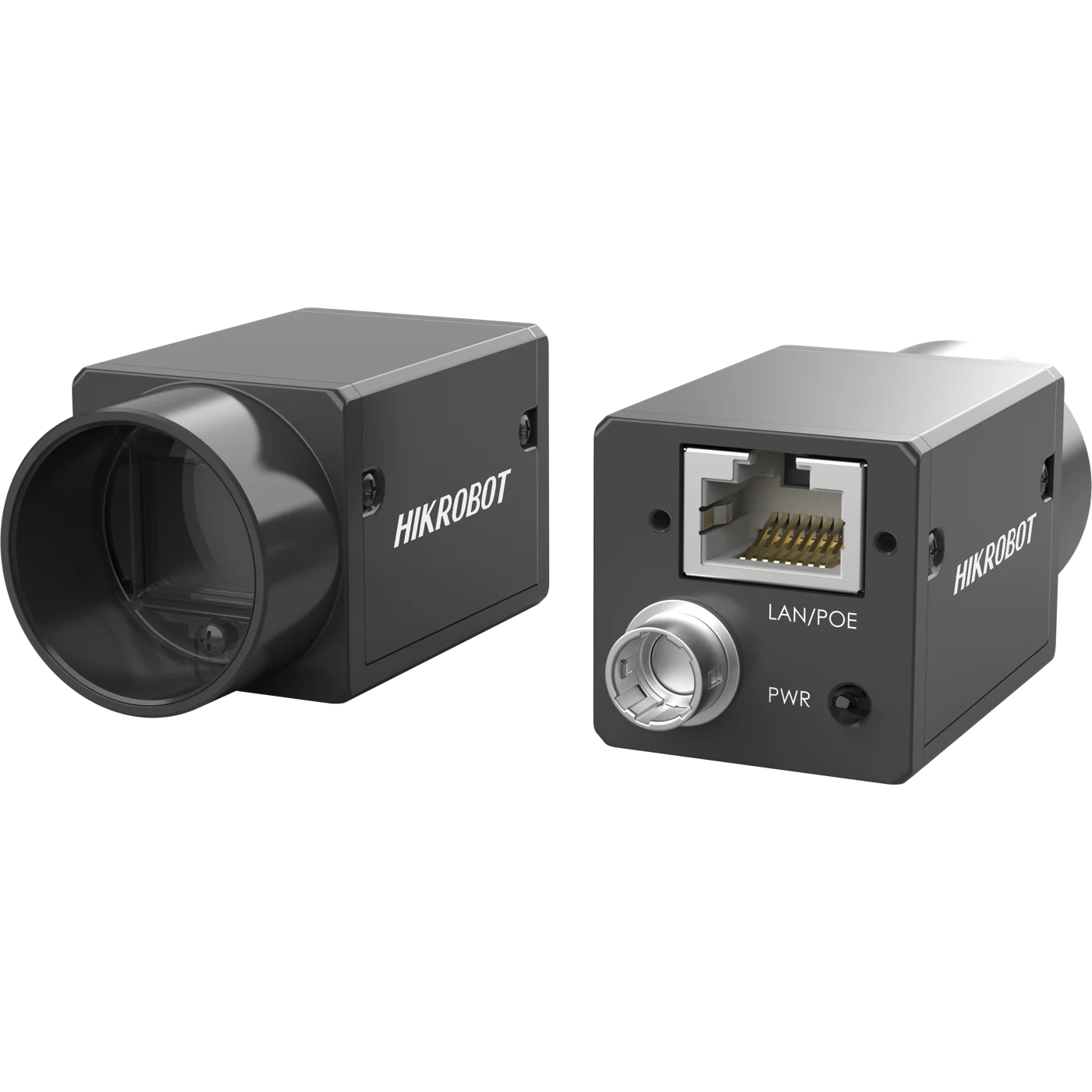

Hikrobot MV-CA004-10GM 0.4MP Area Scan Camera, GigE, IMX287, Mono

Name: Hikrobot MV-CA004-10GM 0.4MP Area Scan Camera, GigE, IMX287, Mono
Brand: Hikrobot
SKU: MV-CA004-10GM

Model MV-CA004-10GM

Hikrobot MV-CA004-10GM 0.4MP Area Scan Camera, GigE, IMX287, Mono. Adopts GigE interface and max. transmission distance of 100 meters without relay. Supports auto and manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, etc.

Datasheet (PDF) - MV-CA004-10GM User manual (PDF) - MV-CA004-10GM CAD: 3D STEP + 2D DXF (ZIP) - MV-CA004-10GM

Features

Adopts GigE interface and max. transmission distance of 100 meters without relay.
Supports auto and manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, etc.
Up to 128 MB local memory for burst transmission and retransmission.
Compatible with GigE Vision Protocol V1.2, GenlCam standard and third-party software meeting with GigE Vision Protocol.

Specifications

Model	MV-CA004-10GM
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX287
Pixel size	6.9 μm × 6.9 μm
Sensor size	1/2.9"
Resolution	720 × 540
Max. frame rate	312.9 fps @ 720 × 540
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB to 20 dB
Exposure time	1 μs to 10 sec
Exposure mode	Off/ Once/ Continuous exposure mode
Mono	Mono
Pixel format	Mono 8/10/10p/12/12p
Binning	Not support
Decimation	Not support
Reverse image	Supports horizontal and vertical reverse image
Image buffer	128 MB
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 3.1 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 68 g (0.15 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	GigE Vision V1.2, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.20 kg
