CCTV lenses

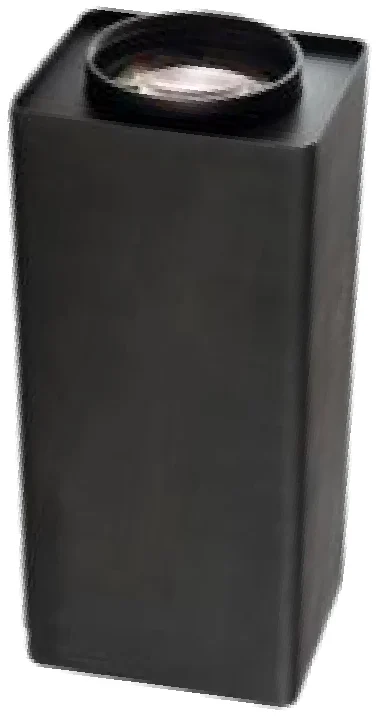

12.5-775 mm, 1/1.7", 2 MP, C-mount Motorized Zoom Lens (LS-SMZ12775JGIR-2M)
Model LS-SMZ12775JGIR-2M
12.5-775 mm, 1/1.7", 2 MP, C-mount Motorized Zoom Lens. 2.0 megapixel 12.5-775 mm long-range motorized zoom lens for 1/1.7" sensors with F3.5 DC iris, optional anti-fog, for border, river/mountain and highway surveillance. At a glance: focal length 12.5-775mm; format 1/1.7"; resolution 2 Megapixel; aperture F3.5 DC Iris; mount C.
Features
- 2.0 megapixel high resolution
- Large 1/1.7" format
- Aperture F3.5 (DC iris)
Specifications
| Model | LS-SMZ12775JGIR-2M |
|---|---|
| Resolution | 2 Megapixel |
| IR correction | IR |
| Format | 1/1.7" |
| Focal length | 12.5-775mm |
| Aperture | F3.5 DC Iris |
| Angle of view (1/1.7", DxHxV) | W: 41.6 x 36.6 x 21.1 / T: 0.7 x 0.61 x 0.34 deg |
| Angle of view (1/1.8", DxHxV) | W: 39.2 x 34.5 x 19.8 / T: 0.66 x 0.57 x 0.32 deg |
| M.O.D. | 5m |
| Distortion | W: -1.64%@y=4.5mm; W: -1.5%@y=4.0mm |
| Filter size | M114 x 0.75mm |
| ND filter | M103 P=1 |
| Size | 356.3 x 135 x 150mm |
| Back focal length (optical) | 46mm |
| Mount | C |
| Weight | 5010g |
| Anti-fog | Optional |
| Features | Coating 400~950nm; Axial shift-able |
| Notes | 10°~+50° / -40°~+70° |
| Shipping weight (estimated) | 7.11 kg |
Applications
- Surveillance
- ITS
- Highways
- Borders
- Rivers and mountains
