CCTV lenses

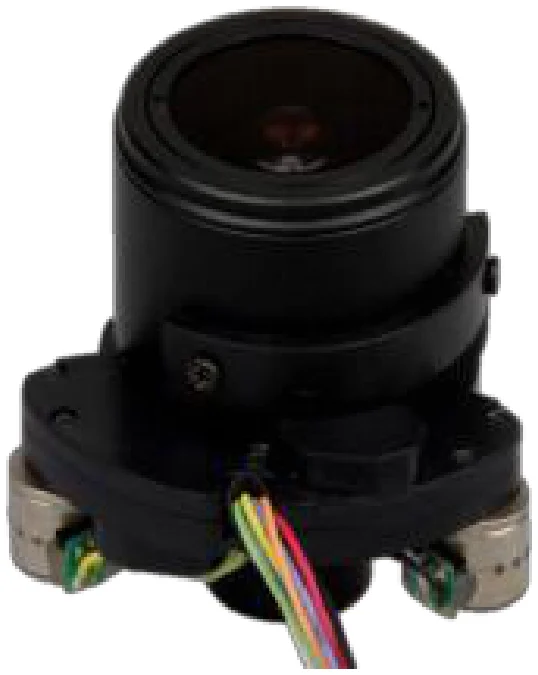

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens (LS-SBVM2812FIR-3M)
Model LS-SBVM2812FIR-3M
2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens. 3.0 megapixel 2.8-12 mm motorized zoom lens for 1/2.7" sensors, with a plug-in D14 mount (D14 or M12 interface optional). At a glance: focal length 2.8-12mm; format 1/2.7"; resolution 3.0 Megapixel; aperture type Fixed Iris; mount dia. 14 (D14).
Features
- 3.0 megapixel
- 1/2.7" sensor format
- Plug-in D14 / M12 mount (D14 or M12 interface optional)
- Motorized zoom
Specifications
| Model | LS-SBVM2812FIR-3M |
|---|---|
| Resolution | 3.0 Megapixel |
| IR correction | IR |
| Format | 1/2.7" |
| Focal length | 2.8-12mm |
| Aperture type | Fixed Iris |
| Aperture | F1.8 |
| Angle of view (1/2.7", DxHxV) | 140 x 100 x 72 deg |
| Angle of view (1/3", DxHxV) | 120 x 89 x 64 deg |
| M.O.D. | 0.3m |
| Distortion | 64.5% ~ -4.3% |
| Size | dia. 28 x 42.4mm |
| Back focal length (optical) | 7.1~13.6mm |
| Mechanical back focal length | 6mm |
| Total track length (TTL) | 65.6mm |
| Mount | dia. 14 (D14) |
| Weight | 41g |
| Shipping weight (estimated) | 0.16 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Motorized Zoom lenses series
