CCTV lenses

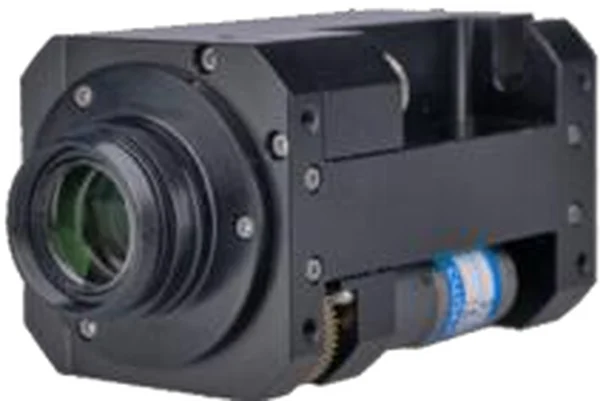

1", C/F-mount Motorized Zoom Lens (LS-SLMZ12X0672)
Model LS-SLMZ12X0672
1", C/F-mount Motorized Zoom Lens. 12X motorized linear zoom lens, 0.6x to 7.2x, for 1" sensors, C or F mount; coaxial and standard versions available. At a glance: working distance 85 +/- 2 mm; format 1" (dia. 16); mount C / F Mount.
Features
- Low distortion 0.04%~0.002%
- Co-axial illumination
- Large format 1"
- Suits applications with different depth of field / stepped surfaces
Specifications
| Model | LS-SLMZ12X0672 |
|---|---|
| Zoom range | 0.6x ~ 7.2x |
| Resolution (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x) | 16.8/12.0/6.1/4.8/3.9/3.4/3.06/3.05 um |
| Depth of field (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x) | 3.33/1.42/0.36/0.19/0.12/0.08/0.06/0.05 mm |
| Aperture (NA) (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x) | 0.02/0.028/0.055/0.07/0.086/0.1/0.11/0.11 |
| Distortion (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x) | 0.04%/0.079%/0.07%/0.064%/0.004%/0.02%/0,01%/0.005% |
| Working distance | 85 +/- 2 mm |
| Format | 1" (dia. 16) |
| Mount | C / F Mount |
| Operating temperature | +10 ~ 35°C |
| Humidity | 20~80% RH (No Condensation) |
| Notes | Detailed FOV Field of view available upon requirement |
| Shipping weight (estimated) | 0.80 kg |
Applications
- Inspection of parts with different depth of field or stepped surfaces
