CCTV lenses

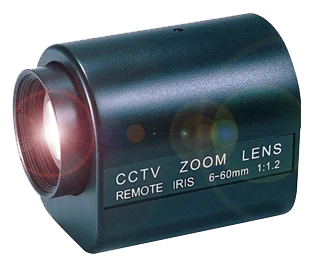

6-60 mm, 1/3", CS-mount Motorized Zoom Lens (LS-SMZ0660D)
Model LS-SMZ0660D
6-60 mm, 1/3", CS-mount Motorized Zoom Lens. High-resolution 6-60 mm motorized zoom lens for 1/3" cameras, supporting megapixel cameras; small size (D81.5 x 103 mm). At a glance: focal length 6-60 mm; format 1/3"; resolution High resolution; aperture F1.2 DC Iris / Remote Iris; mount CS.
Features
- High resolution: Supports megapixel
- Focal length: 6-60 mm suitable for short distance.
- Small size: D81.5 x 103 mm
Specifications
| Model | LS-SMZ0660D |
|---|---|
| Resolution | High resolution |
| Format | 1/3" |
| Focal length | 6-60 mm |
| Aperture | F1.2 DC Iris / Remote Iris |
| Angle of view (1/3") | 52 x 5.7 deg |
| M.O.D. | 1.5 m |
| Size | 103 x 79.5 x 66 mm |
| Mount | CS |
| Weight | 600 g |
| Shipping weight (estimated) | 0.94 kg |
Applications
- Highways
- Railways
- Power stations
- Forests
- City surveillance
- Borders
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
