1", C/F-mount Motorized Zoom Lens (LS-SLMZ12X0672CO)

CCTV lenses

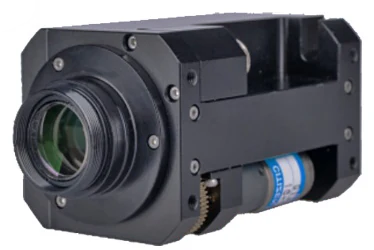

1", C/F-mount Motorized Zoom Lens (LS-SLMZ12X0672CO)

Model LS-SLMZ12X0672CO

1", C/F-mount Motorized Zoom Lens. 12X coaxial motorized linear zoom lens (0.6-7.2X) with low distortion, RS232 control and coaxial illumination input; modular auxiliary lenses and TV tubes extend magnification from 0.09 to 180X. At a glance: magnification steps 0.6, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.2 X; working distance 85 ±2 mm; max format 1" (dia. 16); resolution (µm) per magnification 16.8, 12.0, 6.1, 4.8, 3.9, 3.4, 3.05, 3.05; mount C / F.

$219.00 USDIn stock · 2 available

Inventory updated Oct 14, 2026

0.80 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • Modular design covers 0.09 to 180X optical magnification with high resolution and contrast
  • Works with all common operating systems
  • Stable, smooth zoom with minimal center offset; repeat positioning accuracy up to 1 µm
  • Light source can be fitted as required
  • Controlled from intelligent devices over RS232, no manual operation
  • Rotating wheel is monitored to eliminate gear-backlash errors
  • Automatic zoom can be designed for single-, dual- or multi-axis curves

Specifications

ModelLS-SLMZ12X0672CO
Zoom range0.6X - 7.2X (12X)
Working distance85 ±2 mm
Magnification steps0.6, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.2 X
Resolution (µm) per magnification16.8, 12.0, 6.1, 4.8, 3.9, 3.4, 3.05, 3.05
Depth of field (mm) per magnification3.33, 1.42, 0.36, 0.19, 0.12, 0.08, 0.06, 0.05
NA per magnification0.02, 0.028, 0.055, 0.07, 0.086, 0.1, 0.11, 0.11
TV distortion per magnification0.04%, 0.079%, 0.07%, 0.064%, 0.004%, 0.02%, 0.010%, 0.005%
Max format1" (dia. 16)
MountC / F
Operating temperature+10 to 35 °C
Operating humidity20-80% RH (no condensation)
ControlRS232, built-in control card
Coaxial illuminationcoaxial light source inlet
Auxiliary lenses (working distance)0.25X (WD 253), 0.5X (WD 150), 0.75X (WD 108), none (WD 85), 1.5X (WD 49), 2X (WD 38)
TV tubes0.5X, 0.67X, 1X, 2X
Length (from datasheet drawing)144.4 mm coaxial version, 126.5 mm standard version
Shipping weight (estimated)0.80 kg

Applications

  • Closed precision machining
  • Industrial high-precision measurement
  • Highly integrated medical analysis
