CCTV lenses

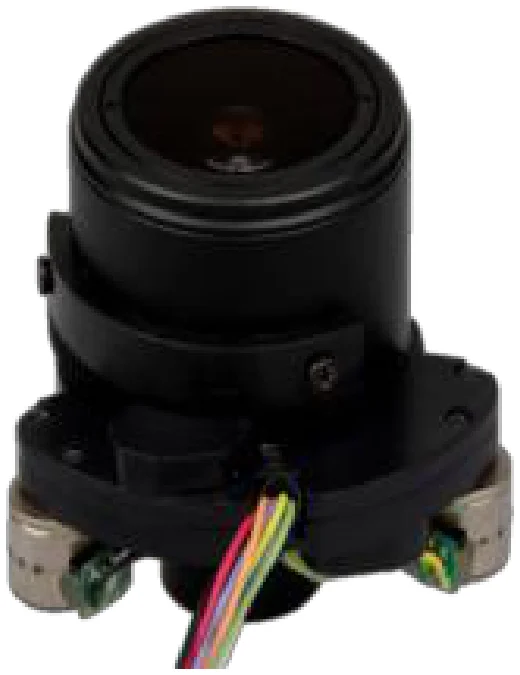

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens (LS-SBM2812MICR-3M)
Model LS-SBM2812MICR-3M
2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens. 3.0 megapixel 2.8-12 mm motorized zoom lens for 1/2.7" sensors with a plug-in dia. 14 (D14) mount, manual iris and ICR function. At a glance: focal length 2.8-12mm; format 1/2.7" (Max image circle dia. 6.6mm); resolution 3.0 Megapixel (Pixel size 3μm); aperture type Manual Iris; mount dia. 14 (D14).
Features
- 3.0 megapixel
- 1/2.7" sensor format
- Plug-in dia. 14 (D14) mount
- Motorized zoom
- Manual iris, ICR function
Specifications
| Model | LS-SBM2812MICR-3M |
|---|---|
| Resolution | 3.0 Megapixel (Pixel size 3μm) |
| IR correction | IR |
| Format | 1/2.7" (Max image circle dia. 6.6mm) |
| Focal length | 2.8-12mm |
| Aperture type | Manual Iris |
| Aperture | F1.6~2.95 |
| Angle of view (1/2.7", DxHxV) | 138 x 111 x 57 deg |
| Angle of view (1/3", DxHxV) | 120 x 89 x 64 deg |
| M.O.D. | 0.3m |
| Distortion | 12% ~ -1.5% |
| Size | dia. 31.89 x 51.56mm |
| Back focal length (optical) | 5.68~12.82mm |
| Relative illumination | 40%~87% |
| Total track length (TTL) | 51.56mm |
| Mount | dia. 14 (D14) |
| Weight | 39g (6G3P) |
| Operating temperature | 30~+70° |
| Shipping weight (estimated) | 0.15 kg |
