Light controllers

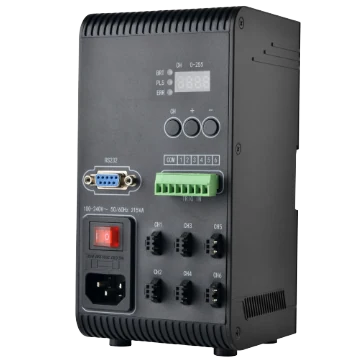

Digital constant-voltage light controller, 200W, 6 channels, SMR-03V-BC connector (LS-LEVD-200-6-SY)
Model LS-LEVD-200-6-SY
Digital constant-voltage light controller, 200W, 6 channels, SMR-03V-BC connector. Up to 6.25 A output current per channel 3 brightness control methods: panel knob, panel buttons and serial communication
Features
- Up to 6.25 A output current per channel
- 3 brightness control methods: panel knob, panel buttons and serial communication
- Serial control provides 256 brightness levels (0–255)
- High-speed optocoupler-isolated external trigger for accurate, highly reliable trigger signals
- Power-loss memory and overload/short-circuit protection
Specifications
| Model | LS-LEVD-200-6-SY |
|---|---|
| Drive mode | Constant voltage |
| Lighting mode | Constant voltage |
| PWM frequency | 140 KHz |
| Strobe overdrive | Not supported |
| Channel | 6 |
| Dimming mode | Panel knob, Serial communication |
| Brightness level | 0 ~ 255 |
| Lighting response time | <10 μs |
| Trigger mode | External trigger supported, Internal trigger |
| Communication protocol | RS-232 |
| Applicable product | Ring light, Bar light, Flat light, Coaxial light |
| Input voltage | 24 VDC |
| Input current | 2.4 A |
| Output current | 8.4 A max |
| Output power | 200 W max |
| Output current for each channel | 3 A max |
| Trigger in | Level signal DC 5 to 24 V / 6 mA |
| Trigger out | Not supported |
| Power supply interface | AC socket |
| Console interface | Serial port |
| Digital I/O | 6 inputs |
| Lighting output connector | SMR-03V-BC |
| Dimension | 95.5 mm × 95 mm × 185 mm |
| Shell material | Plastic |
| Weight | Approx. 580 g |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Ingress protection | IP30 (when properly installed) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Cooling mode | Forced cooling (built-in fan) |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.91 kg |
