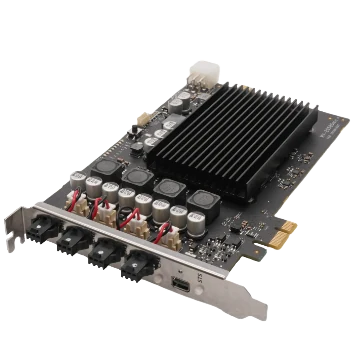

PCIe light controller card, 4 channels, 50 W input / 42 W output, With trigger (LS-LE200-42W24-4-PCIE)
Model LS-LE200-42W24-4-PCIE
PCIe light controller card, 4 channels, 50 W input / 42 W output, With trigger. PCIe x1 interface, compatible with PCIe x4/8/16 slots; saves space compared with conventional light controllers Light outputs support PWM pulse or analog control
Features
- PCIe x1 interface, compatible with PCIe x4/8/16 slots; saves space compared with conventional light controllers
- Light outputs support PWM pulse or analog control
- Powered from the host, compatible with mainstream industrial PCs
- Multi-channel light outputs and I/O trigger interface for linked signal control
- Device parameters configurable through client software for flexible, easy use
Specifications
| Model | LS-LE200-42W24-4-PCIE |
|---|---|
| Drive mode | Switchable digital or analog constant voltage |
| Lighting mode | Continuous, strobe |
| PWM frequency | 125 KHz |
| Strobe overdrive | Not supported |
| Channel | 4 |
| Dimming mode | Software (client) |
| Brightness level | 0 ~ 255 |
| Lighting response time | <5 ms |
| Trigger mode | External trigger and internal trigger |
| Communication protocol | Serial |
| Applicable product | Ring light, Bar light, Flat light, Coaxial light, etc., Supports lights up to 24 W |
| Interconnect | PCI-E gen2 x 1 |
| Bus indicator | 1 |
| Input voltage | 24 VDC |
| Input current | 4.2 A |
| Output current | 1.75 A max |
| Output power | 42 W max |
| Output current for each channel | 1 A max |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Power supply interface | ATX power connector |
| Digital I/O | 4 opto-isolated inputs |
| Lighting output connector | SMR-03V-BC |
| Dimension | 90 mm × 126.3 mm × 21.6 mm |
| Weight | Approx. 212 g (0.5 lb.) |
| Temperature | Operating temperature: 0 to 50 °C, Storage temp.: -20 to 60 °C |
| Humidity | 20% RH to 85% RH (no condensation) |
| Cooling mode | Natural cooling |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.40 kg |
