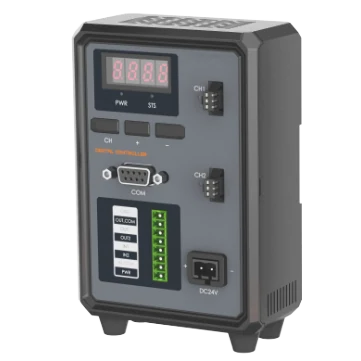

Digital Light Controller, 2 channel, 48W/24V (LS-LE200-48W24-2D)
Model LS-LE200-48W24-2D
Digital Light Controller, 2 channel, 48W/24V. Supports different control modes of light source, including control panel and software. Supports using serial port or network interface to set parameters and manage the devic
Features
- Supports different control modes of light source, including control panel and software.
- Supports using serial port or network interface to set parameters and manage the devic
- Provides multiple I/O interfaces for external trigger.
- Supports installation via slide rail or screw hole.
- Supports overcurrent, overload, short circuit protection.
Specifications
| Model | LS-LE200-48W24-2D |
|---|---|
| Drive mode | Digital, constant voltage |
| Lighting mode | Continuous, strobe |
| PWM frequency | 125 kHz |
| Strobe overdrive | Not support |
| Channel | 2-channel |
| Dimming mode | Control panel (via pressing button), software (serial port) |
| Brightness level | 0 to 255 |
| Lighting response time | < 10 μs |
| Trigger mode | External trigger and internal trigger |
| Communication protocol | Serial |
| Applicable product | Ring light, bar light, flat light, coaxial light, etc. |
| Input voltage | 24 VDC |
| Input current | 2.5 A |
| Output voltage | 24 VDC |
| Output current | Max. 2 A |
| Output power | Max. 48 W |
| Output current for each channel | Max. 2 A |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Power supply interface | 5.08 mm × 2 terminal block |
| Console interface | DB9F serial port |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Lighting output connector | SMR-03V-BC |
| Dimension | 90 mm × 54.1 mm × 139.5 mm (3.5" × 2.1" × 5.5") |
| Shell material | Plastic |
| Weight | Approx. 188 g (0.4 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Cooling mode | Natural cooling |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.36 kg |
