Light controllers

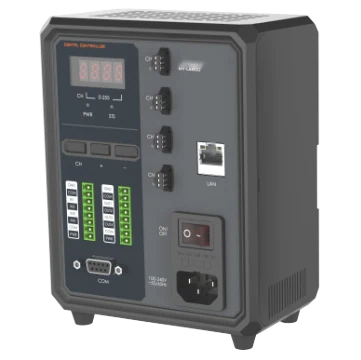

Digital Light Controller, 4 channel, 120W/24V (LS-LE200-120W24-4TD)
Model LS-LE200-120W24-4TD
Digital Light Controller, 4 channel, 120W/24V. Supports different control modes of light source, including control panel and software. Supports using serial port or network interface to set parameters and manage the devic
Features
- Supports different control modes of light source, including control panel and software.
- Supports using serial port or network interface to set parameters and manage the devic
- Provides multiple I/O interfaces for external trigger.
- Supports installation via slide rail or screw hole.
- Supports overcurrent, overload, short circuit protection.
Specifications
| Model | LS-LE200-120W24-4TD |
|---|---|
| Drive mode | Digital, constant voltage |
| Lighting mode | Continuous, strobe |
| PWM frequency | 125 kHz |
| Strobe overdrive | Not support |
| Channel | 4-channel |
| Dimming mode | Control panel (via pressing button), software (serial port or network interface) |
| Brightness level | 0 to 255 |
| Lighting response time | < 10 μs |
| Trigger mode | External trigger and internal trigger |
| Communication protocol | UDP, Serial |
| Applicable product | Ring light, bar light, flat light, coaxial light, etc. |
| Input voltage | 100 VAC to 240 VAC, 50 Hz/60 Hz |
| Input current | 2.1 A (115 VAC), 1.2 A (230 VAC) |
| Output voltage | 24 VDC |
| Output current | Max. 5 A |
| Output power | Max. 120 W |
| Output current for each channel | Max. 3 A |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Power supply interface | C13 220 VAC interface |
| Console interface | RJ45 network interface, DB9F serial port |
| Digital I/O | Opto-isolated input × 4, opto-isolated output × 4 |
| Lighting output connector | SMR-03V-BC |
| Dimension | 130 mm × 83.8 mm × 169.5 mm (5.1" × 3.3" × 6.7") |
| Shell material | Plastic |
| Weight | Approx. 733 g (1.6 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Cooling mode | Fan cooling |
| Certification | CE, KC |
| Shipping weight (estimated) | 1.13 kg |
