Light controllers

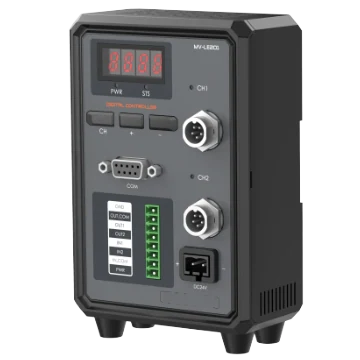

light controller for dot-type lighting (LS-LE201-30W5-2FD)
Model LS-LE201-30W5-2FD
light controller for dot-type lighting. Adopts constant current to improve light source stability. Adopts buttons and display to have quick operations.
Features
- Adopts constant current to improve light source stability.
- Adopts buttons and display to have quick operations.
- Supports using serial port or network interface to set parameters and manage the device.
- Supports external trigger interface for different lighting modes.
- Supports overcurrent, overload, overtemperature, short circuit protection.
Specifications
| Model | LS-LE201-30W5-2FD |
|---|---|
| Dimming mode | Control panel (via pressing button), software (serial port) |
| Trigger mode | External trigger and internal trigger |
| Communication protocol | Serial |
| Output current for each channel | Max. 3 A |
| Channel | 2-channel |
| Power supply interface | 24 VDC terminal block |
| Console interface | DB9F serial port |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Dimension | 139.5 mm × 90 mm × 55.5 mm (5.5" × 3.5" × 2.2") |
| Shell material | Plastic |
| Weight | 300 g (0.7 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.52 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Digital light controllers series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-LE201-10W5-2D | $109.00 | 3 in stock | View | |
| LS-LE200-48W24-2D | $209.00 | 5 in stock | View | |
| LS-LE200-90W24-6D | $229.00 | 3 in stock | View | |
| LS-LE201-200W48-2TD | $279.00 | 4 in stock | View | |
| LS-LE200-120W24-4TD | $309.00 | 2 in stock | View | |
| LS-LE200-200W24-4TD | $339.00 | 2 in stock | View | |
| LS-LE201-500W48-2TD | $399.00 | 3 in stock | View | |
| LS-LE201-750W48-2TD | $509.00 | 2 in stock | View |
