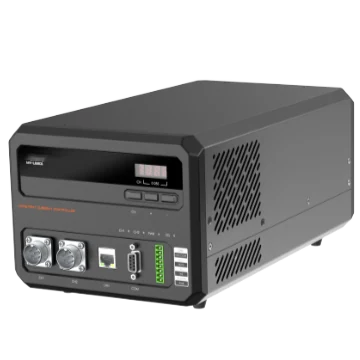

Digital Light Controller, 2 channel, 750W/48V (LS-LE201-750W48-2TD)
Model LS-LE201-750W48-2TD
Digital Light Controller, 2 channel, 750W/48V. Adopts constant current to improve light source stability. Adopts buttons and display to have quick operations.
Features
- Adopts constant current to improve light source stability.
- Adopts buttons and display to have quick operations.
- Supports using network interface to set parameters and manage the device.
- Supports external trigger interface for different lighting modes.
- Supports overcurrent, overload, overtemperature, short circuit protection.
Specifications
| Model | LS-LE201-750W48-2TD |
|---|---|
| Drive mode | Digital, constant current |
| Lighting mode | Continuous, strobe |
| Channel | 2-channel |
| Dimming mode | Control panel (via pressing button), software (serial port or network interface) |
| Brightness level | 0 to 255 |
| Lighting response time | < 10 μs |
| Trigger mode | External trigger and internal trigger |
| Communication protocol | UDP, Serial |
| Applicable product | Line scan light (with 19M-8H and 19M-8A connector). |
| Input voltage | 100 VAC to 240 VAC, 50 Hz/60 Hz |
| Input current | 8.2 A (115 VAC), 3.9 A (230 VAC) |
| Output voltage | 48 VDC |
| Output current | Max. 15 A |
| Output power | Max. 750 W |
| Output current for each channel | Max. 8 A |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 2.7 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Power supply interface | C13 220 VAC interface |
| Console interface | RJ45 network interface, DB9F serial port |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Lighting output connector | 19M-8H (Female) × 2 |
| Dimension | 347.2 mm × 180 mm × 150.8 mm (13.7" ×7.1" × 5.9") |
| Shell material | Plastic + SECC |
| Weight | 5300 g (11.7 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Cooling mode | Fan cooling |
| Certification | CE, KC |
| Shipping weight (estimated) | 7.52 kg |
