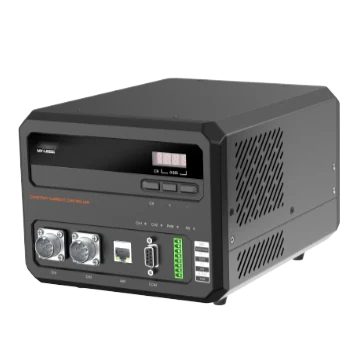

Digital constant-current light controller, 200 W 48 V, 1 channel (2 connectors) (LS-LE201-200W48-1TD)
Model LS-LE201-200W48-1TD
Digital constant-current light controller, 200 W 48 V, 1 channel (2 connectors). Constant-current drive for consistent light output; models cover total output power from 200 W to 750 W Buttons and digital display for quick status checks and channel output settings
Features
- Constant-current drive for consistent light output; models cover total output power from 200 W to 750 W
- Buttons and digital display for quick status checks and channel output settings
- Device management and parameter configuration via serial or Ethernet
- External trigger input; choose continuous or strobe operation
- Integrated overcurrent, overload, over-temperature and short-circuit protection
Specifications
| Model | LS-LE201-200W48-1TD |
|---|---|
| Drive mode | Digital, constant current |
| Lighting mode | Continuous, strobe |
| Channel | 1 (CH1 and CH2 provide dual connectors) |
| Dimming mode | Control panel (via pressing button), software (serial port or network interface) |
| Brightness level | 0 ~ 255 |
| Lighting response time | < 10 μs |
| Trigger mode | External trigger and internal trigger |
| Communication protocol | UDP, Serial |
| Applicable product | Line scan light (with 19M-8H and 19M-8A connector); Vcsel line scan light only supports connection to a single channel. |
| Input voltage | 48 VDC |
| Input current | 1.8 A/115 VAC; 1 A/230 VAC |
| Output current | 4 A max |
| Output power | 184 W max |
| Output current for each channel | 4 A max |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Power supply interface | C13 220 VAC interface |
| Console interface | RJ45 network interface, DB9F serial port |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Lighting output connector | 19M-8H (Female) × 2 |
| Dimension | 257.3 mm × 180 mm × 150.8 mm |
| Shell material | Plastic + SECC |
| Weight | 2070 g |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Cooling mode | Fan cooling |
| Certification | CE, FCC, KC |
| Shipping weight (estimated) | 3.00 kg |
