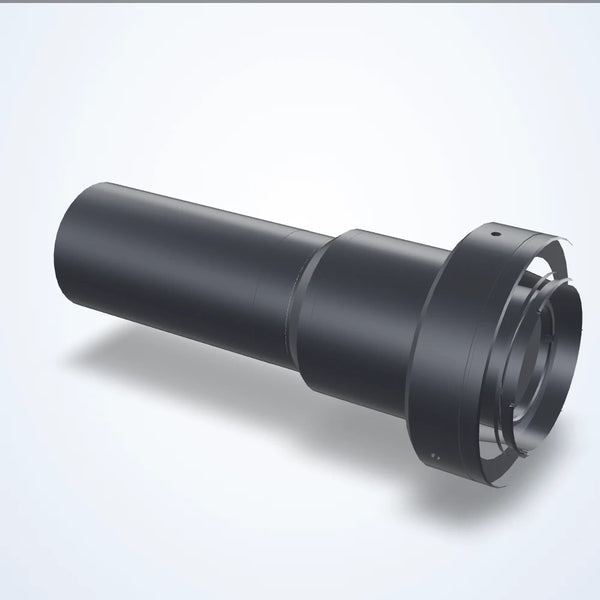

1.054× telecentric lens, 4/3", F-mount
LS-TCL-0300
- Magnification 1.054×
- Mount F-mount
- Sensor 4/3"
$2,459.00Quote
Lead time confirmed with your quote
Lenses
Object-side telecentric lenses
Select object-space telecentric opticsBrowse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.
Products

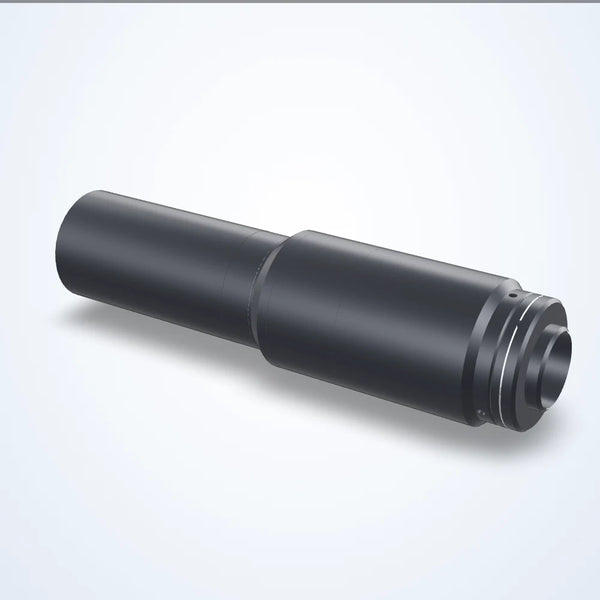

1.054× telecentric lens, 4/3", C-mount
LS-TCL-0299
- Magnification 1.054×
- Mount C-mount
- Sensor 4/3"
$2,459.00Quote
Lead time confirmed with your quote
0.159× telecentric lens, 4K, M42-mount
LS-TCL-0289
- Magnification 0.159×
- Mount M42
- Working distance 254 mm
$8,399.00Quote
Lead time confirmed with your quote
0.159× telecentric lens, 4K, F-mount
LS-TCL-0288
- Magnification 0.159×
- Mount F-mount
- Working distance 254 mm
$8,399.00Quote
Lead time confirmed with your quote
0.24× telecentric lens, 4K, M42-mount
LS-TCL-0287
- Magnification 0.24×
- Mount M42
- Working distance 174 mm
$6,119.00Quote
Lead time confirmed with your quote
0.24× telecentric lens, 4K, F-mount
LS-TCL-0286
- Magnification 0.24×
- Mount F-mount
- Working distance 174 mm
$6,119.00Quote
Lead time confirmed with your quote
0.319× telecentric lens, 4K, M42-mount, 396.3 x 114 x 52 mm
LS-TCL-0285
- Magnification 0.319×
- Mount M42
- Working distance 174 mm
$5,129.00Quote
Lead time confirmed with your quote
0.319× telecentric lens, 4K, M42-mount, 395.2 x 114 x 52 mm
LS-TCL-0284
- Magnification 0.319×
- Mount M42
- Working distance 174 mm
$5,129.00Quote
Lead time confirmed with your quote
0.319× telecentric lens, 4K, F-mount
LS-TCL-0283
- Magnification 0.319×
- Mount F-mount
- Working distance 174 mm
$5,129.00Quote
Lead time confirmed with your quote
0.478× telecentric lens, 4K, M42-mount
LS-TCL-0282
- Magnification 0.478×
- Mount M42
- Working distance 174 mm
$4,019.00Quote
Lead time confirmed with your quote
0.478× telecentric lens, 4K, F-mount
LS-TCL-0281
- Magnification 0.478×
- Mount F-mount
- Working distance 174 mm
$4,019.00Quote
Lead time confirmed with your quote
0.059× telecentric lens, 1.1", C-mount
LS-TCL-0280
- Magnification 0.059×
- Mount C-mount
- Sensor 1.1"
$15,619.00Quote
Lead time confirmed with your quote
0.075× telecentric lens, 1.1", C-mount
LS-TCL-0279
- Magnification 0.075×
- Mount C-mount
- Sensor 1.1"
$11,619.00Quote
Lead time confirmed with your quote
0.1× telecentric lens, 1.1", C-mount
LS-TCL-0278
- Magnification 0.1×
- Mount C-mount
- Sensor 1.1"
$7,229.00Quote
Lead time confirmed with your quote
0.118× telecentric lens, 1.1", C-mount, 17.6 mm image circle
LS-TCL-0277
- Magnification 0.118×
- Mount C-mount
- Sensor 1.1"
$5,909.00Quote
Lead time confirmed with your quote
0.153× telecentric lens, 1.1", C-mount, 17.6 mm image circle
LS-TCL-0276
- Magnification 0.153×
- Mount C-mount
- Sensor 1.1"
$4,739.00Quote
Lead time confirmed with your quote
0.182× telecentric lens, 1.1", C-mount, 17.6 mm image circle
LS-TCL-0275
- Magnification 0.182×
- Mount C-mount
- Sensor 1.1"
$3,919.00Quote
Lead time confirmed with your quote
0.227× telecentric lens, 1.1", C-mount, 17.6 mm image circle
LS-TCL-0274
- Magnification 0.227×
- Mount C-mount
- Sensor 1.1"
$3,399.00Quote
Lead time confirmed with your quote
0.259× telecentric lens, 1.1", C-mount, 246.7 x 80 x 80 mm
LS-TCL-0273
- Magnification 0.259×
- Mount C-mount
- Sensor 1.1"
$3,139.00Quote
Lead time confirmed with your quote
0.303× telecentric lens, 1.1", C-mount, 223.4 x 75 x 75 mm
LS-TCL-0272
- Magnification 0.303×
- Mount C-mount
- Sensor 1.1"
$2,879.00Quote
Lead time confirmed with your quote
0.392× telecentric lens, 1.1", C-mount
LS-TCL-0271
- Magnification 0.392×
- Mount C-mount
- Sensor 1.1"
$2,749.00Quote
Lead time confirmed with your quote
0.564× telecentric lens, 1.1", C-mount
LS-TCL-0270
- Magnification 0.564×
- Mount C-mount
- Sensor 1.1"
$2,489.00Quote
Lead time confirmed with your quote
0.85× telecentric lens, 1.1", C-mount
LS-TCL-0269
- Magnification 0.85×
- Mount C-mount
- Sensor 1.1"
$2,349.00Quote
Lead time confirmed with your quote
0.053× telecentric lens, 1", C-mount
LS-TCL-0268
- Magnification 0.053×
- Mount C-mount
- Sensor 1"
$15,619.00Quote
Lead time confirmed with your quote
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-03001.054× telecentric lens, 4/3", F-mount
| 1.054× | F-mount | 4/3" | 43.1 mm | 10 μm | 13.46 x 7.13 mm | $2,459.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02991.054× telecentric lens, 4/3", C-mount
| 1.054× | C-mount | 4/3" | 43.1 mm | 10 μm | 13.46 x 7.13 mm | $2,459.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02890.159× telecentric lens, 4K, M42-mount
| 0.159× | M42 | - | 254 mm | 64 μm | - | $8,399.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02880.159× telecentric lens, 4K, F-mount
| 0.159× | F-mount | - | 254 mm | 64 μm | - | $8,399.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02870.24× telecentric lens, 4K, M42-mount
| 0.24× | M42 | - | 174 mm | 42 μm | - | $6,119.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02860.24× telecentric lens, 4K, F-mount
| 0.24× | F-mount | - | 174 mm | 42 μm | - | $6,119.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02850.319× telecentric lens, 4K, M42-mount, 396.3 x 114 x 52 mm
| 0.319× | M42 | - | 174 mm | 32 μm | - | $5,129.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02840.319× telecentric lens, 4K, M42-mount, 395.2 x 114 x 52 mm
| 0.319× | M42 | - | 174 mm | 32 μm | - | $5,129.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02830.319× telecentric lens, 4K, F-mount
| 0.319× | F-mount | - | 174 mm | 32 μm | - | $5,129.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02820.478× telecentric lens, 4K, M42-mount
| 0.478× | M42 | - | 174 mm | 21 μm | - | $4,019.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02810.478× telecentric lens, 4K, F-mount
| 0.478× | F-mount | - | 174 mm | 21 μm | - | $4,019.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02800.059× telecentric lens, 1.1", C-mount
| 0.059× | C-mount | 1.1" | 492.9 mm | 86 μm | - | $15,619.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02790.075× telecentric lens, 1.1", C-mount
| 0.075× | C-mount | 1.1" | 527.6 mm | 68 μm | - | $11,619.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02780.1× telecentric lens, 1.1", C-mount
| 0.1× | C-mount | 1.1" | 396 mm | 43 μm | - | $7,229.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02770.118× telecentric lens, 1.1", C-mount, 17.6 mm image circle
| 0.118× | C-mount | 1.1" | 334.6 mm | 43 μm | - | $5,909.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02760.153× telecentric lens, 1.1", C-mount, 17.6 mm image circle
| 0.153× | C-mount | 1.1" | 278.6 mm | 33 μm | - | $4,739.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02750.182× telecentric lens, 1.1", C-mount, 17.6 mm image circle
| 0.182× | C-mount | 1.1" | 226.8 mm | 28 μm | - | $3,919.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02740.227× telecentric lens, 1.1", C-mount, 17.6 mm image circle
| 0.227× | C-mount | 1.1" | 181.9 mm | 22 μm | - | $3,399.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02730.259× telecentric lens, 1.1", C-mount, 246.7 x 80 x 80 mm
| 0.259× | C-mount | 1.1" | 157.8 mm | 20 μm | - | $3,139.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02720.303× telecentric lens, 1.1", C-mount, 223.4 x 75 x 75 mm
| 0.303× | C-mount | 1.1" | 132.9 mm | 17 μm | - | $2,879.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02710.392× telecentric lens, 1.1", C-mount
| 0.392× | C-mount | 1.1" | 102.6 mm | 18 μm | - | $2,749.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02700.564× telecentric lens, 1.1", C-mount
| 0.564× | C-mount | 1.1" | 67.2 mm | 12 μm | - | $2,489.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02690.85× telecentric lens, 1.1", C-mount
| 0.85× | C-mount | 1.1" | 43.1 mm | 8 μm | - | $2,349.00Quote | Lead time confirmed with your quote | |
 LS-TCL-02680.053× telecentric lens, 1", C-mount
| 0.053× | C-mount | 1" | 492.8 mm | 96 μm | - | $15,619.00Quote | Lead time confirmed with your quote |
Select object-space telecentric optics
Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.
- Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
- Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
- Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.
