Telecentric lenses

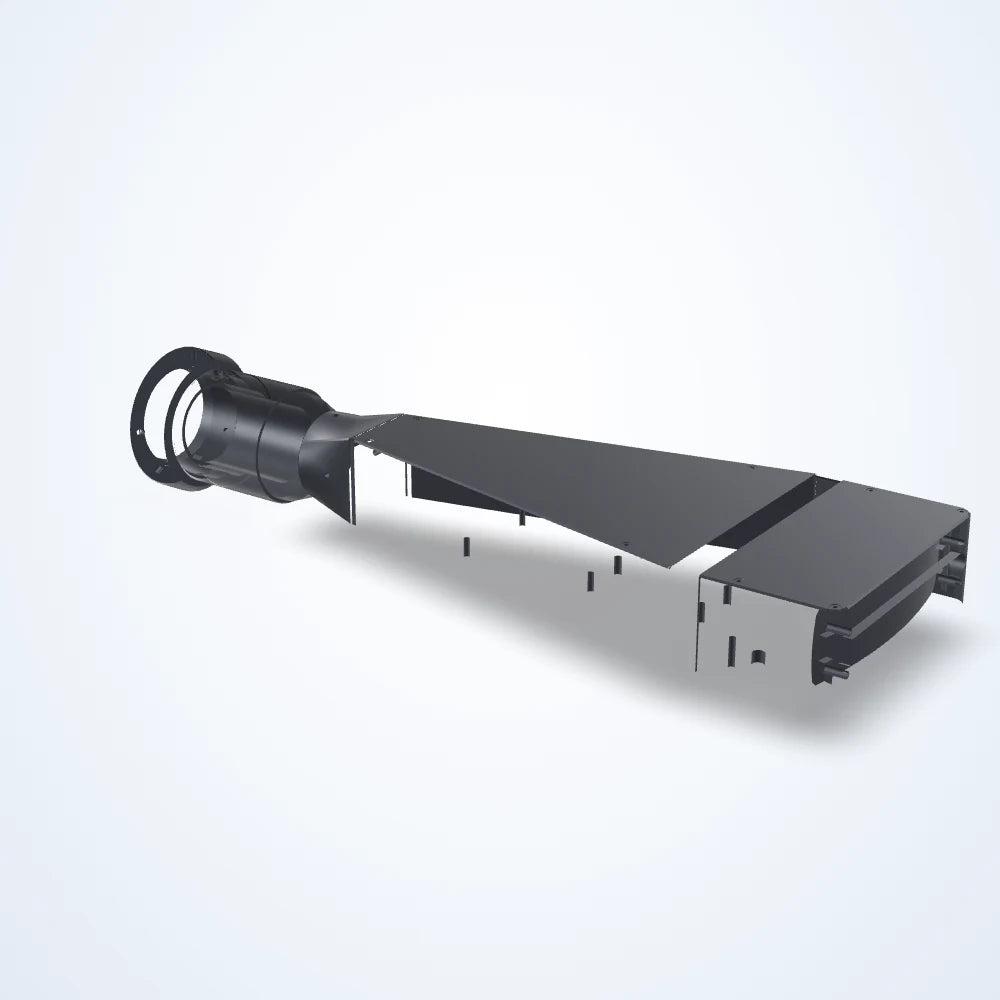

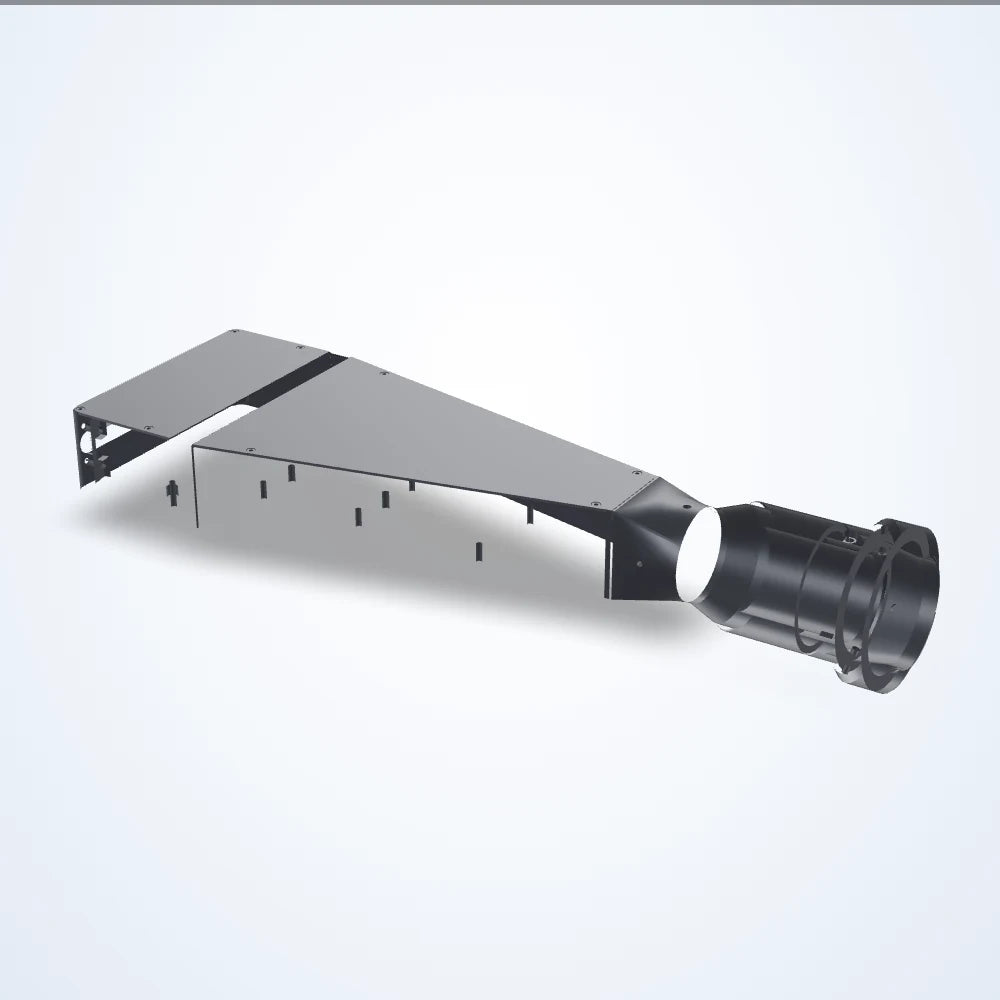

0.319× telecentric lens, 4K, F-mount (LS-TCL-0283)
Model LS-TCL-0283
- Magnification0.319×
- MountF-mount
- SensorAPS-C
- Working distance174 mm
- Resolution32 μm
$5,129.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 174 mm; depth of field 16.5 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0283 |
|---|---|
| Lens type | Telecentric |
| Line 2k-5µm | 44.95 mm |
| Line 2k-7µm | 64.2 mm |
| Line 4k-5µm | 89.87 mm |
| Line 4k-7µm | 32.1 mm |
| Working ƒ/n | f/16 |
Optics
| Magnification | 0.319× |
|---|---|
| Working distance | 174 mm |
| Depth of field | 16.5 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Image circle | 28.7 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.05° |
Sensor and imaging
| Sensor format | 4K |
|---|---|
| Resolution (pixel size) | 32 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | F-mount |
|---|---|

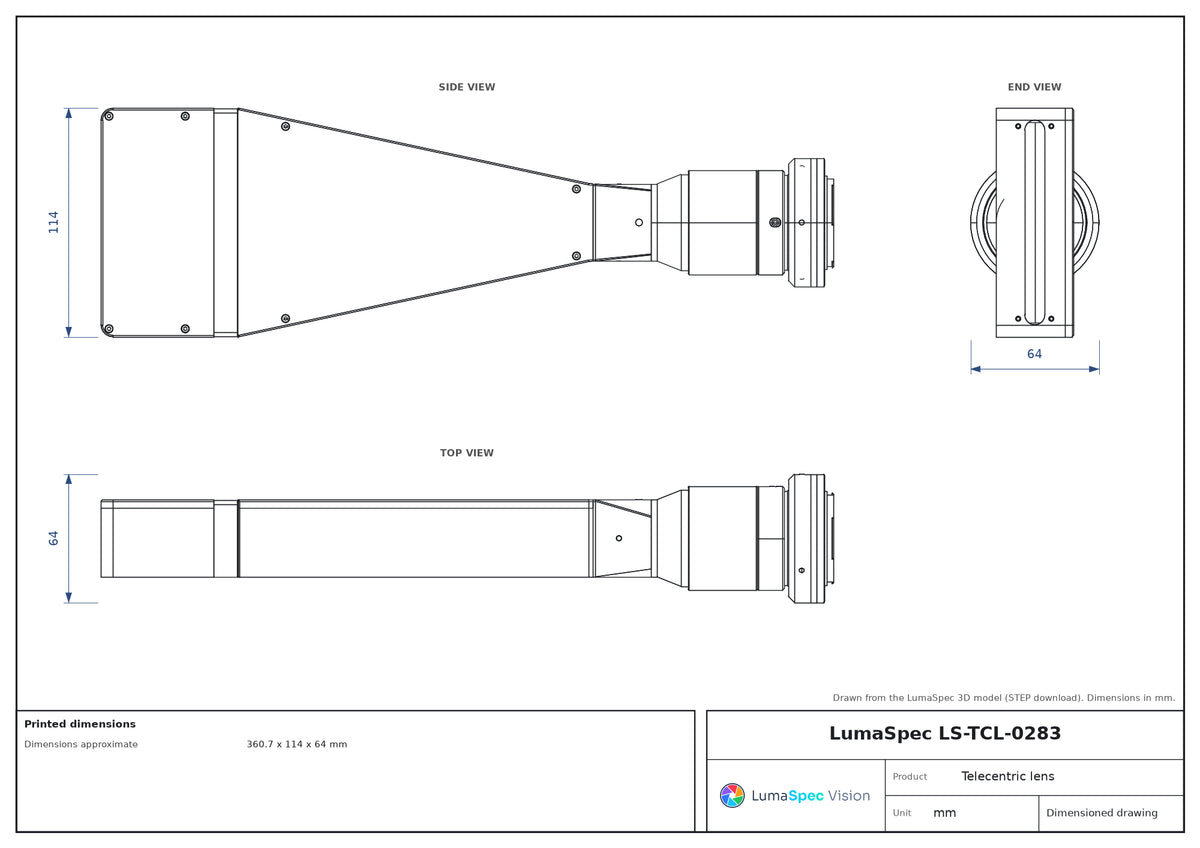

| Dimensions approximate | 360.7 x 114 x 64 mm |
| Weight | 1724 Grams |
