0.478× telecentric lens, 4K, M42-mount (LS-TCL-0282)

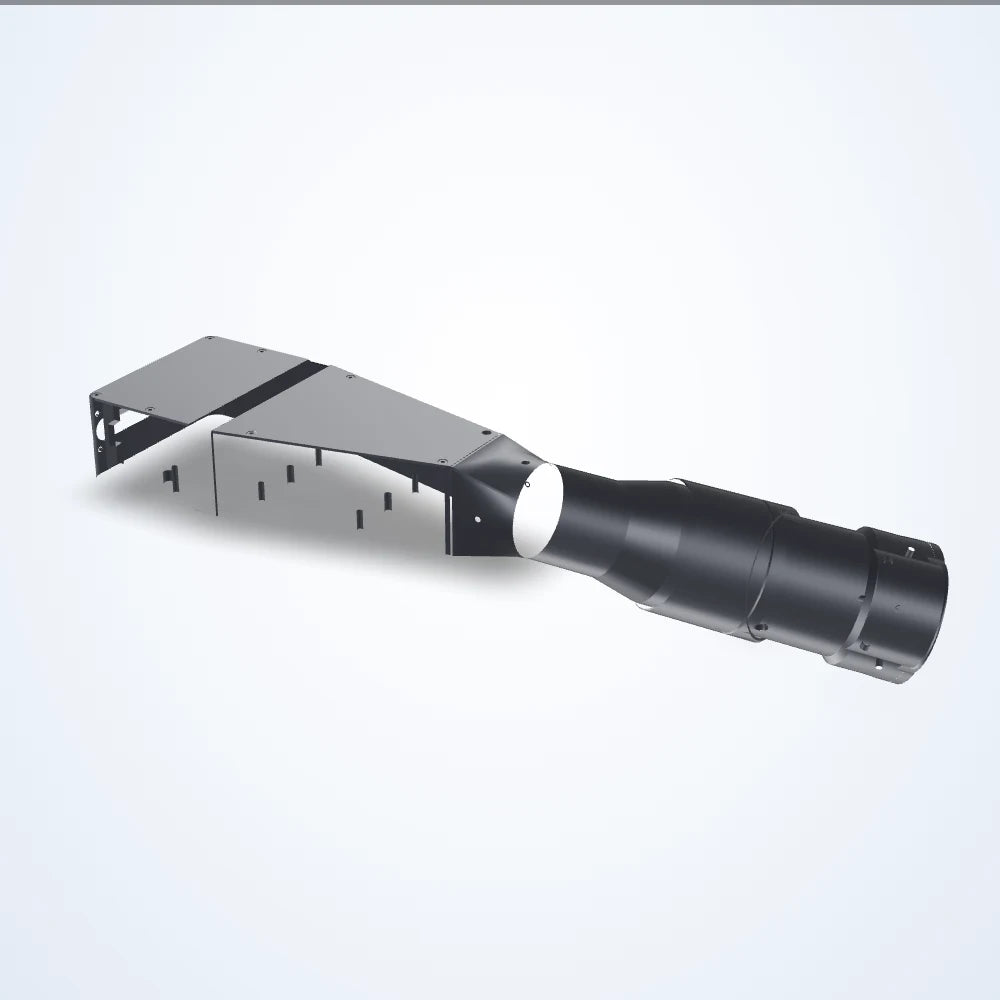

  • 0.478× telecentric lens, 4K, M42-mount (LS-TCL-0282)

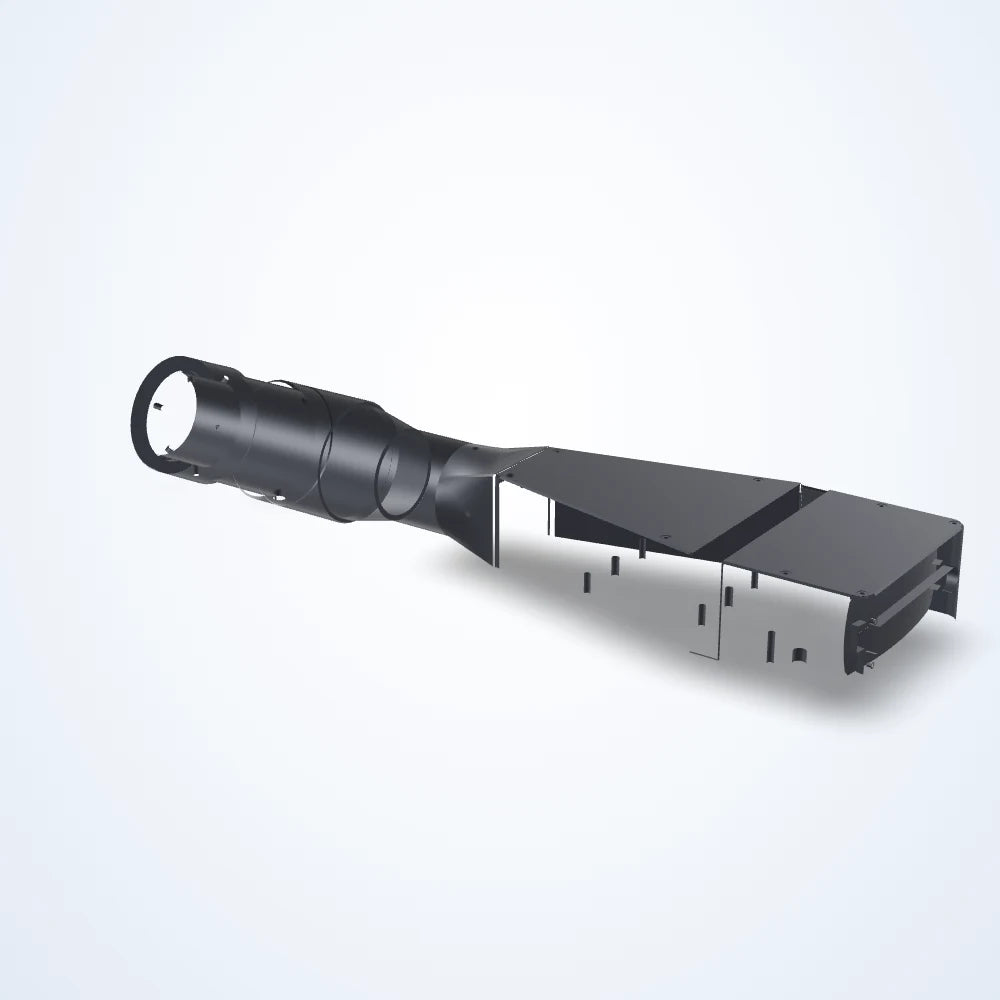

  • 0.478× telecentric lens, 4K, M42-mount (LS-TCL-0282) - view 2

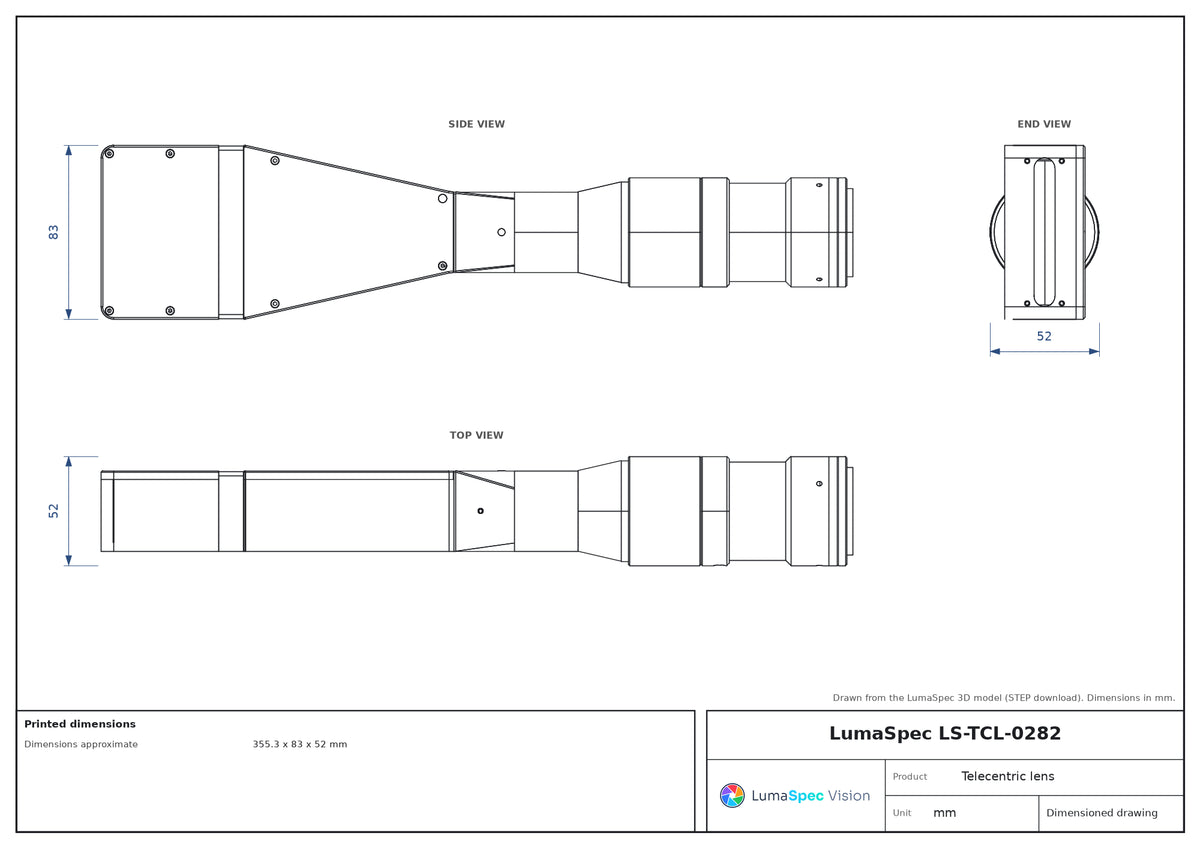

  • LS-TCL-0282 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.478× telecentric lens, 4K, M42-mount (LS-TCL-0282)

Model LS-TCL-0282

  • Magnification0.478×
  • MountM42
  • SensorAPS-C
  • Working distance174 mm
  • Resolution21 μm
$4,019.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.478× telecentric lens, 4K, M42-mount (LS-TCL-0282)LS-TCL-0282

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 174 mm; depth of field 7.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0282
Lens typeTelecentric
Line 2k-5µm21.42 mm
Line 2k-7µm30 mm
Line 4k-5µm42.85 mm
Line 4k-7µm59.98 mm
Working ƒ/nf/16

Optics

Magnification0.478×
Working distance174 mm
Depth of field7.4 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.05
Filter threadNo Filter Threads
Image circle28.7 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format4K
Resolution (pixel size)21 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate355.3 x 83 x 52 mm
Weight1258 Grams

LS-TCL-0282

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-TCL-0282 — Telecentric lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.478×
Sensor format
4K
Mount
M42-mount
Working distance
174 mm

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Telecentric lens series, 4K series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-0281 0.478× $4,019.00 Quote Lead time confirmed with your quote View
LS-TCL-0283 0.319× $5,129.00 Quote Lead time confirmed with your quote View
LS-TCL-0284 0.319× $5,129.00 Quote Lead time confirmed with your quote View
LS-TCL-0285 0.319× $5,129.00 Quote Lead time confirmed with your quote View
LS-TCL-0286 0.24× $6,119.00 Quote Lead time confirmed with your quote View
LS-TCL-0287 0.24× $6,119.00 Quote Lead time confirmed with your quote View
LS-TCL-0288 0.159× $8,399.00 Quote Lead time confirmed with your quote View
LS-TCL-0289 0.159× $8,399.00 Quote Lead time confirmed with your quote View
