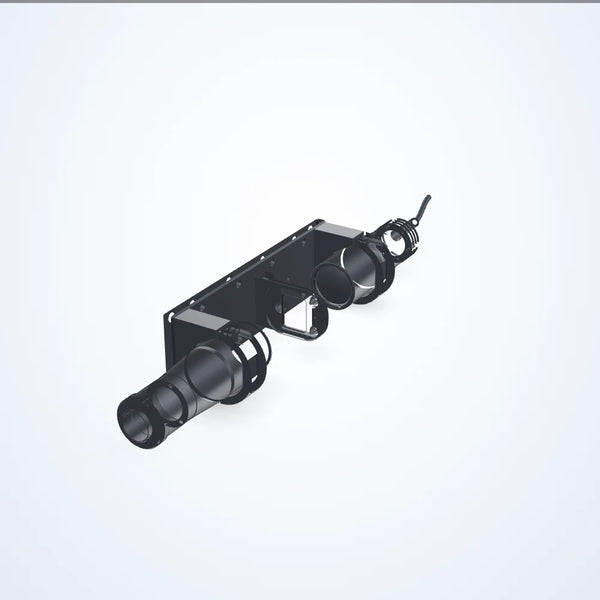

0.35× telecentric lens, 2/3", C-mount, 520 nm
LS-TCL-0340
- Magnification 0.35×
- Mount C-mount
- Sensor 2/3"
$4,389.00Quote
Lead time confirmed with your quote
Lenses
Object-side telecentric lenses
Select object-space telecentric opticsBrowse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.
Products

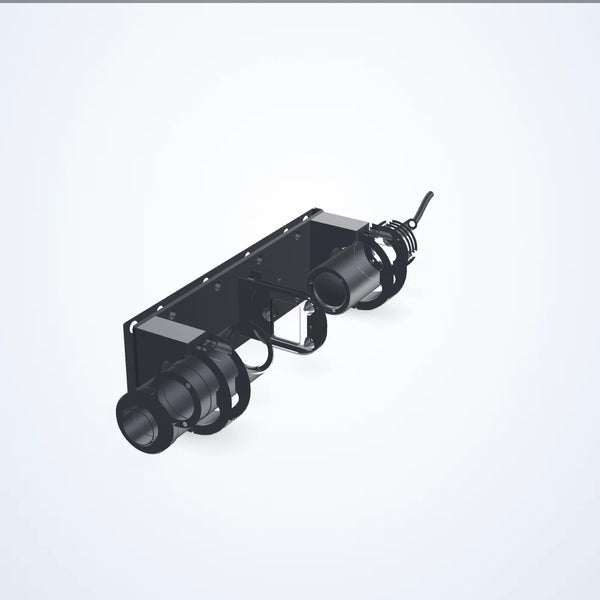

0.528× telecentric lens, 2/3", C-mount, 520 nm
LS-TCL-0339
- Magnification 0.528×
- Mount C-mount
- Sensor 2/3"
$4,119.00Quote
Lead time confirmed with your quote

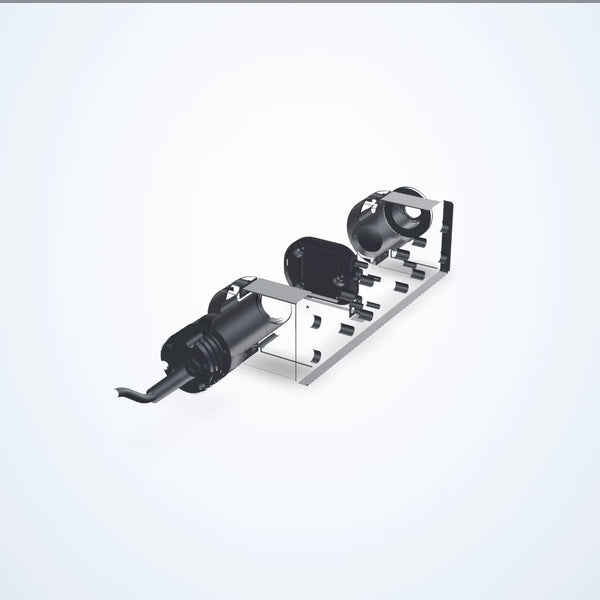

1× telecentric lens, 2/3", C-mount, wavelength 520 nm
LS-TCL-0338
- Magnification 1×
- Mount C-mount
- Sensor 2/3"
$3,619.00Quote
Lead time confirmed with your quote
0.059× telecentric lens, 4/3", M42-mount
LS-TCL-0337
- Magnification 0.059×
- Mount M42
- Sensor 4/3"
$55,459.00Quote
Lead time confirmed with your quote
0.059× telecentric lens, 4/3", F-mount
LS-TCL-0336
- Magnification 0.059×
- Mount F-mount
- Sensor 4/3"
$55,459.00Quote
Lead time confirmed with your quote
0.059× telecentric lens, 4/3", C-mount
LS-TCL-0335
- Magnification 0.059×
- Mount C-mount
- Sensor 4/3"
$55,459.00Quote
Lead time confirmed with your quote
0.073× telecentric lens, 4/3", M42-mount
LS-TCL-0334
- Magnification 0.073×
- Mount M42
- Sensor 4/3"
$18,129.00Quote
Lead time confirmed with your quote
0.073× telecentric lens, 4/3", C-mount
LS-TCL-0332
- Magnification 0.073×
- Mount C-mount
- Sensor 4/3"
$18,129.00Quote
Lead time confirmed with your quote
0.091× telecentric lens, 4/3", M42-mount
LS-TCL-0331
- Magnification 0.091×
- Mount M42
- Sensor 4/3"
$12,879.00Quote
Lead time confirmed with your quote
0.091× telecentric lens, 4/3", F-mount
LS-TCL-0330
- Magnification 0.091×
- Mount F-mount
- Sensor 4/3"
$12,879.00Quote
Lead time confirmed with your quote
0.091× telecentric lens, 4/3", C-mount
LS-TCL-0329
- Magnification 0.091×
- Mount C-mount
- Sensor 4/3"
$12,879.00Quote
Lead time confirmed with your quote
0.122× telecentric lens, 4/3", M42-mount
LS-TCL-0328
- Magnification 0.122×
- Mount M42
- Sensor 4/3"
$6,749.00Quote
Lead time confirmed with your quote
0.122× telecentric lens, 4/3", F-mount
LS-TCL-0327
- Magnification 0.122×
- Mount F-mount
- Sensor 4/3"
$6,749.00Quote
Lead time confirmed with your quote
0.122× telecentric lens, 4/3", C-mount
LS-TCL-0326
- Magnification 0.122×
- Mount C-mount
- Sensor 4/3"
$6,749.00Quote
Lead time confirmed with your quote
0.143× telecentric lens, 4/3", M42-mount
LS-TCL-0325
- Mount M42
- Sensor 4/3"
- Resolution 35 μm
$5,589.00Quote
Lead time confirmed with your quote
0.143× telecentric lens, 4/3", F-mount
LS-TCL-0324
- Mount F-mount
- Sensor 4/3"
- Resolution 35 μm
$5,589.00Quote
Lead time confirmed with your quote
0.143× telecentric lens, 4/3", C-mount
LS-TCL-0323
- Mount C-mount
- Sensor 4/3"
- Resolution 35 μm
$5,589.00Quote
Lead time confirmed with your quote
0.185× telecentric lens, 4/3", M42-mount
LS-TCL-0322
- Magnification 0.185×
- Mount M42
- Sensor 4/3"
$3,859.00Quote
Lead time confirmed with your quote

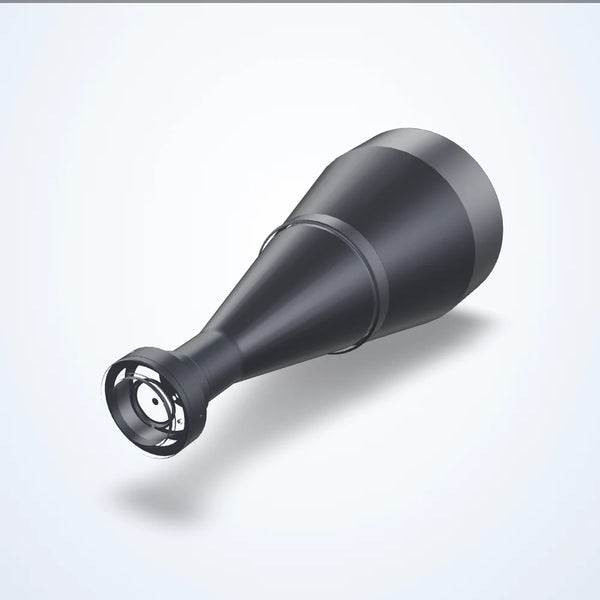

0.185× telecentric lens, 4/3", F-mount
LS-TCL-0321
- Magnification 0.185×
- Mount F-mount
- Sensor 4/3"
$3,859.00Quote
Lead time confirmed with your quote

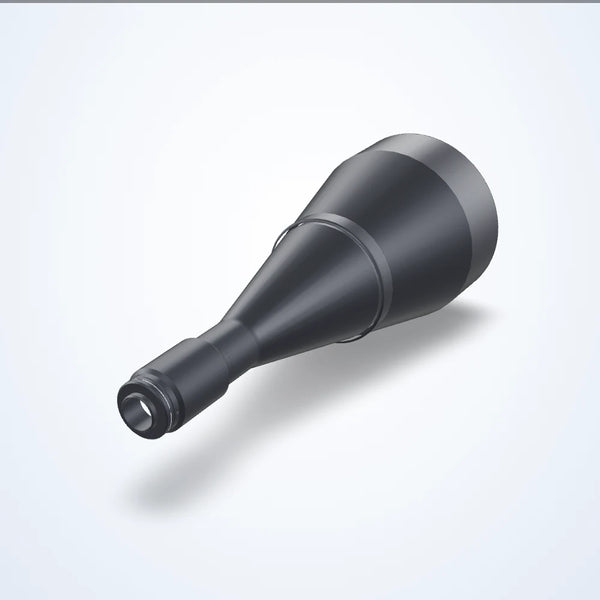

0.185× telecentric lens, 4/3", C-mount
LS-TCL-0320
- Magnification 0.185×
- Mount C-mount
- Sensor 4/3"
$3,859.00Quote
Lead time confirmed with your quote
0.22× telecentric lens, 4/3", M42-mount
LS-TCL-0319
- Magnification 0.22×
- Mount M42
- Sensor 4/3"
$3,669.00Quote
Lead time confirmed with your quote

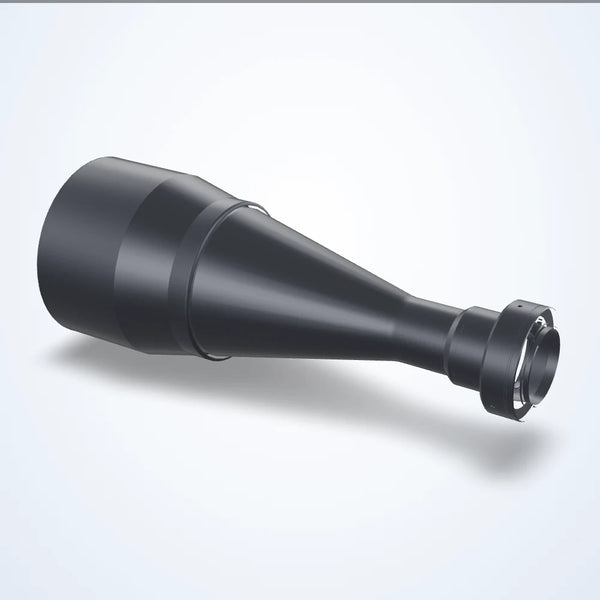

0.22× telecentric lens, 4/3", F-mount
LS-TCL-0318
- Magnification 0.22×
- Mount F-mount
- Sensor 4/3"
$3,669.00Quote
Lead time confirmed with your quote

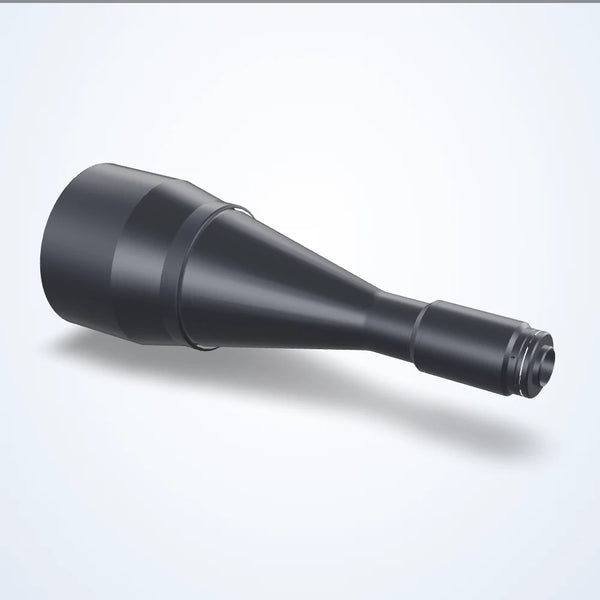

0.22× telecentric lens, 4/3", C-mount
LS-TCL-0317
- Magnification 0.22×
- Mount C-mount
- Sensor 4/3"
$3,669.00Quote
Lead time confirmed with your quote
0.274× telecentric lens, 4/3", M42-mount
LS-TCL-0316
- Magnification 0.274×
- Mount M42
- Sensor 4/3"
$3,319.00Quote
Lead time confirmed with your quote
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-03400.35× telecentric lens, 2/3", C-mount, 520 nm
| 0.35× | C-mount | 2/3" | 67.2 mm | 15 μm | 13.71 x 10.29 mm | $4,389.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03390.528× telecentric lens, 2/3", C-mount, 520 nm
| 0.528× | C-mount | 2/3" | 43.1 mm | 10 μm | 9.09 x 6.82 mm | $4,119.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03381× telecentric lens, 2/3", C-mount, wavelength 520 nm
| 1× | C-mount | 2/3" | 62.2 mm | 7 μm | 4.80 x 3.60 mm | $3,619.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03370.059× telecentric lens, 4/3", M42-mount
| 0.059× | M42 | 4/3" | 500 mm | 86 μm | - | $55,459.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03360.059× telecentric lens, 4/3", F-mount
| 0.059× | F-mount | 4/3" | 500 mm | 86 μm | - | $55,459.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03350.059× telecentric lens, 4/3", C-mount
| 0.059× | C-mount | 4/3" | 500 mm | 86 μm | - | $55,459.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03340.073× telecentric lens, 4/3", M42-mount
| 0.073× | M42 | 4/3" | 492.8 mm | 70 μm | - | $18,129.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03320.073× telecentric lens, 4/3", C-mount
| 0.073× | C-mount | 4/3" | 492.8 mm | 70 μm | - | $18,129.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03310.091× telecentric lens, 4/3", M42-mount
| 0.091× | M42 | 4/3" | 527.6 mm | 56 μm | - | $12,879.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03300.091× telecentric lens, 4/3", F-mount
| 0.091× | F-mount | 4/3" | 527.6 mm | 56 μm | - | $12,879.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03290.091× telecentric lens, 4/3", C-mount
| 0.091× | C-mount | 4/3" | 527.6 mm | 56 μm | - | $12,879.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03280.122× telecentric lens, 4/3", M42-mount
| 0.122× | M42 | 4/3" | 396 mm | 42 μm | - | $6,749.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03270.122× telecentric lens, 4/3", F-mount
| 0.122× | F-mount | 4/3" | 396 mm | 42 μm | - | $6,749.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03260.122× telecentric lens, 4/3", C-mount
| 0.122× | C-mount | 4/3" | 396 mm | 42 μm | - | $6,749.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03250.143× telecentric lens, 4/3", M42-mount
| - | M42 | 4/3" | - | 35 μm | - | $5,589.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03240.143× telecentric lens, 4/3", F-mount
| - | F-mount | 4/3" | - | 35 μm | - | $5,589.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03230.143× telecentric lens, 4/3", C-mount
| - | C-mount | 4/3" | - | 35 μm | - | $5,589.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03220.185× telecentric lens, 4/3", M42-mount
| 0.185× | M42 | 4/3" | 278.6 mm | 27 μm | - | $3,859.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03210.185× telecentric lens, 4/3", F-mount
| 0.185× | F-mount | 4/3" | 278.6 mm | 27 μm | - | $3,859.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03200.185× telecentric lens, 4/3", C-mount
| 0.185× | C-mount | 4/3" | 278.6 mm | 27 μm | - | $3,859.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03190.22× telecentric lens, 4/3", M42-mount
| 0.22× | M42 | 4/3" | 226.8 mm | 23 μm | - | $3,669.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03180.22× telecentric lens, 4/3", F-mount
| 0.22× | F-mount | 4/3" | 226.8 mm | 23 μm | - | $3,669.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03170.22× telecentric lens, 4/3", C-mount
| 0.22× | C-mount | 4/3" | 226.8 mm | 23 μm | - | $3,669.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03160.274× telecentric lens, 4/3", M42-mount
| 0.274× | M42 | 4/3" | 181.9 mm | 19 μm | - | $3,319.00Quote | Lead time confirmed with your quote |
Select object-space telecentric optics
Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.
- Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
- Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
- Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.
