Full frame telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for Full frame sensors cover an image circle of at least 43.3 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 2/3-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses

176 models Configure a systemAll lenses
Full frame telecentric lenses

121-144 of 176 models

Products

Compare
LS-TCL-16410.396x, WD 263 mm, M58-mount telecentric lens 0.396xM58Full frame263±4 mmF9.3Ø 110 mm$3,379.00 Ships in 2-3 weeks

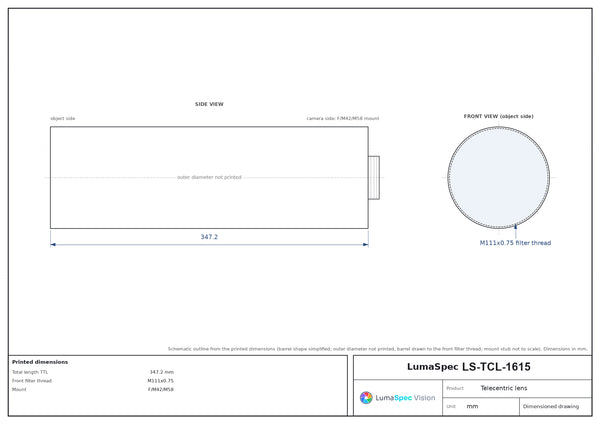

LS-TCL-16150.4x, WD 263 mm telecentric lens 0.4xF-mount, M42, M58Full frame263±4 mmF10.3Ø 110 mm$3,329.00 Ships in 2-3 weeks
LS-TCL-16400.436x, WD 238 mm, M58-mount telecentric lens 0.436xM58Full frame238±4 mmF10.3Ø 100 mm$3,159.00 Ships in 2-3 weeks

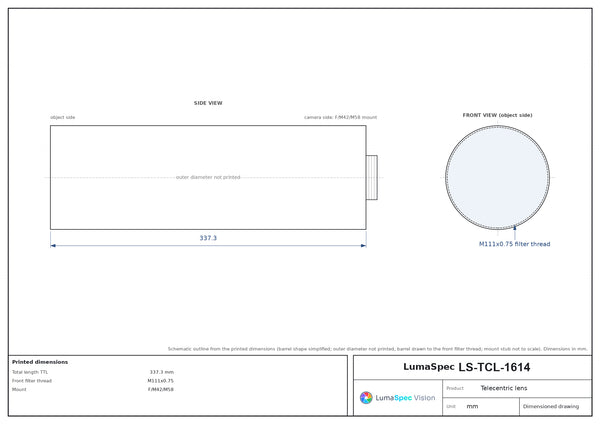

LS-TCL-16140.44x, WD 238 mm telecentric lens 0.44xF-mount, M42, M58Full frame238±4 mmF10.3Ø 100 mm$3,159.00 Ships in 2-3 weeks

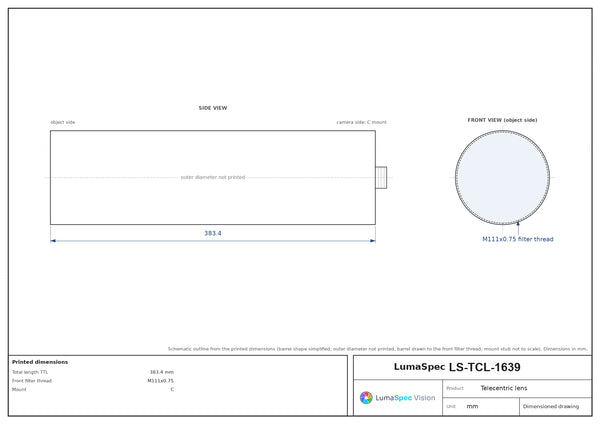

LS-TCL-16390.4739x, WD 350 mm, C-mount telecentric lens 0.4739xC-mountFull frame350±6 mmF14.7Ø 92 mm$2,919.00 Ships in 2-3 weeks

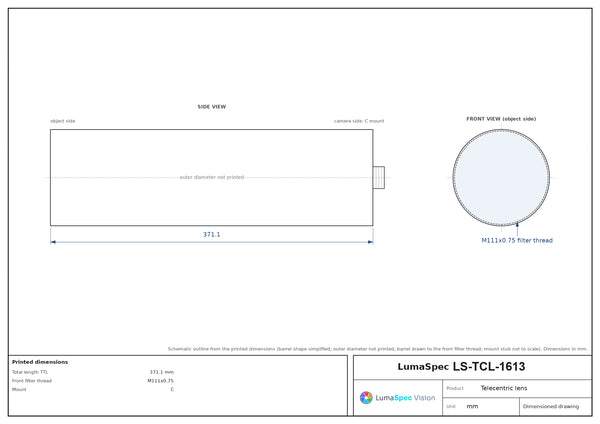

LS-TCL-16130.4783x, WD 350 mm, C-mount telecentric lens 0.4783xC-mountFull frame350±6 mmF14.8Ø 92 mm$2,919.00 Ships in 2-3 weeks

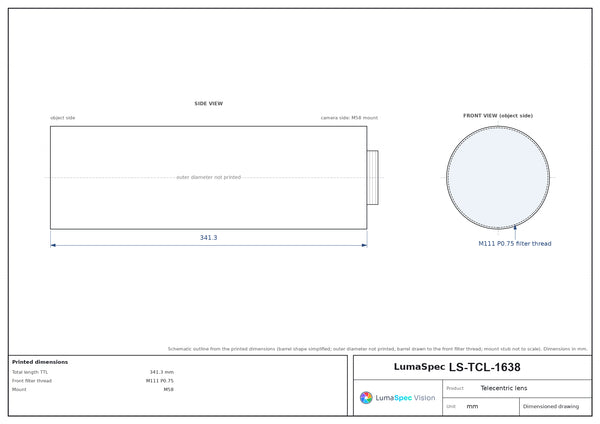

LS-TCL-16380.484x, WD 208 mm, M58-mount telecentric lens 0.484xM58Full frame208±3 mmF11.4Ø 90 mm$2,899.00 Ships in 2-3 weeks
LS-TCL-16120.489x, WD 208 mm telecentric lens 0.489xF-mount, M42, M58Full frame208±3 mmF11.5Ø 90 mm$2,869.00 Ships in 2-3 weeks
LS-TCL-16370.545x, WD 228 mm, M58-mount telecentric lens 0.545xM58Full frame228±4 mmF7.3Ø 80 mm$2,679.00 Ships in 2-3 weeks
LS-TCL-16110.55x, WD 228 mm telecentric lens 0.55xF-mount, M42, M58Full frame228±4 mmF10.3Ø 80 mm$2,639.00 Ships in 2-3 weeks
LS-TCL-16360.606x, WD 178 mm, M58-mount telecentric lens 0.606xM58Full frame178±3 mmF12.8Ø 72 mm$2,479.00 Ships in 2-3 weeks
LS-TCL-16100.611x, WD 178 mm telecentric lens 0.611xF-mount, M42, M58Full frame178±3 mmF12.9Ø 72 mm$2,459.00 Ships in 2-3 weeks

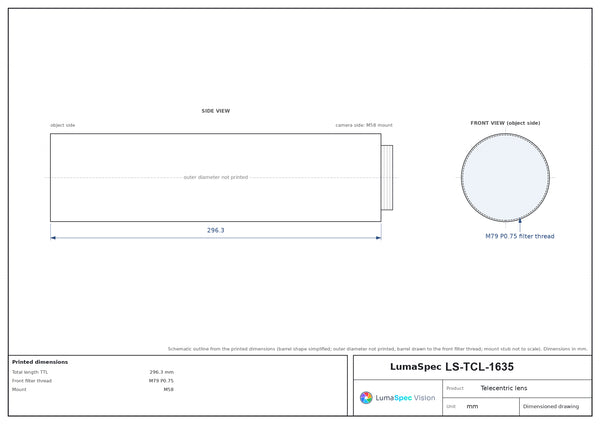

LS-TCL-16350.681x, WD 158 mm, M58-mount telecentric lens 0.681xM58Full frame158±3 mmF12.8Ø 64 mm$2,289.00 Ships in 2-3 weeks
LS-TCL-16090.688x, WD 158 mm telecentric lens 0.688xF-mount, M42, M58Full frame158±3 mmF12.9Ø 64 mm$2,269.00 Ships in 2-3 weeks

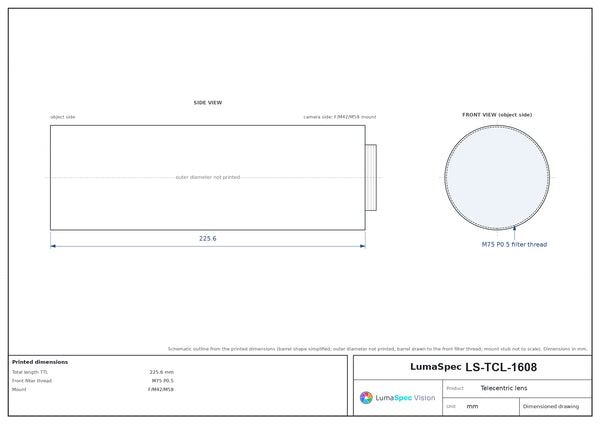

LS-TCL-16080.688x, WD 189 mm telecentric lens 0.688xF-mount, M42, M58Full frame189±3 mmF17.3Ø 64 mm$2,279.00 Ships in 2-3 weeks
LS-TCL-16340.739x, WD 85 mm, M58-mount telecentric lens 0.739xM58Full frame85±1 mmF6.4Ø 59 mm$2,179.00 Ships in 2-3 weeks

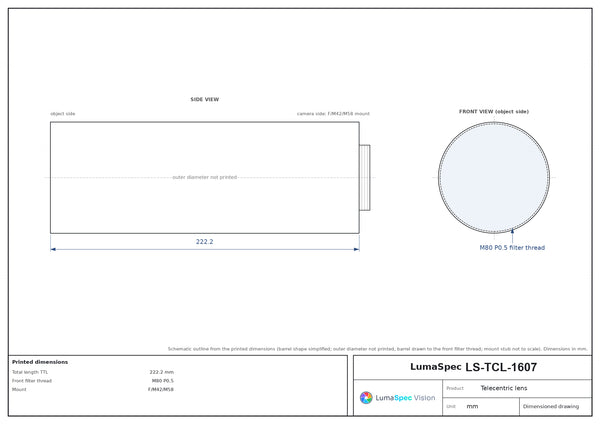

LS-TCL-16070.746x, WD 85 mm telecentric lens 0.746xF-mount, M42, M58Full frame85±1 mmF10.3Ø 59 mm$2,169.00 Ships in 2-3 weeks
LS-TCL-16330.779x, WD 138 mm, M58-mount telecentric lens 0.779xM58Full frame138±3 mmF14.6Ø 56 mm$2,109.00 Ships in 2-3 weeks
LS-TCL-16060.785x, WD 138 mm telecentric lens 0.785xF-mount, M42, M58Full frame138±3 mmF14.8Ø 56 mm$2,089.00 Ships in 2-3 weeks
LS-TCL-16320.908x, WD 128 mm, M58-mount telecentric lens 0.908xM58Full frame128±3 mmF17.1Ø 48 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-16050.92x, WD 138 mm telecentric lens 0.92xF-mount, M42, M58Full frame138±3 mmF25.9Ø 48 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-16040.92x, WD 128 mm telecentric lens 0.92xF-mount, M42, M58Full frame128±3 mmF17.2Ø 48 mm$1,949.00 Ships in 2-3 weeks

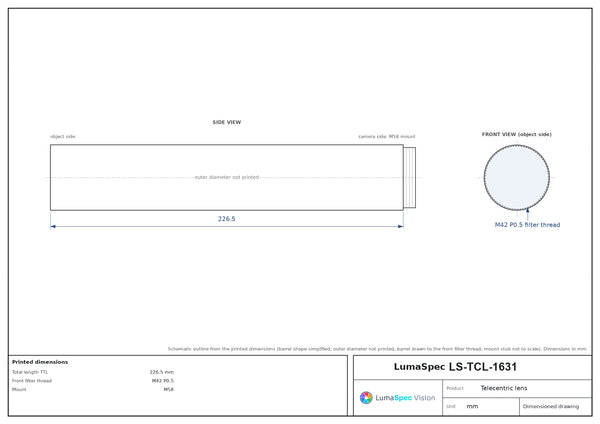

LS-TCL-16310.991x, WD 82 mm, M58-mount fixed-magnification lens 0.991xM58Full frame82±1 mmF10.3Ø 44 mm$1,949.00 Ships in 2-3 weeks

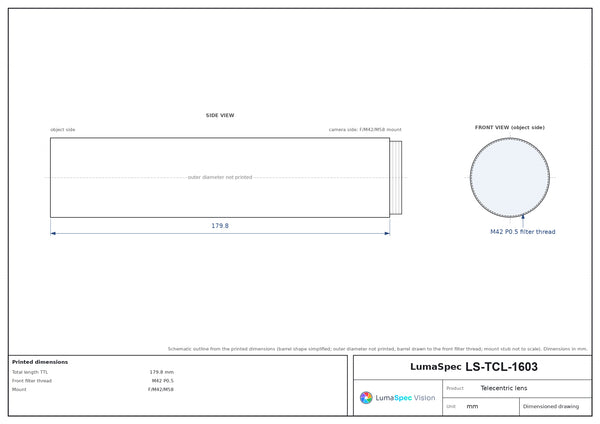

LS-TCL-16031x, WD 82 mm fixed-magnification lens 1xF-mount, M42, M58Full frame82±1 mmF10.3Ø 44 mm$1,949.00 Ships in 2-3 weeks
