Lenses

Full frame telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for Full frame sensors cover an image circle of at least 43.3 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 2/3-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses

176 models Configure a systemAll lenses
Full frame telecentric lenses

97-120 of 176 models

Products

Compare
LS-TCL-2729Bi-telecentric lens for 35 mm Full cameras, 0.686x, WD 187 mm 0.686xF-mountFull frame187±2 mm52.7x35.1 mm-From $2,289.00 Ships in 2-3 weeks

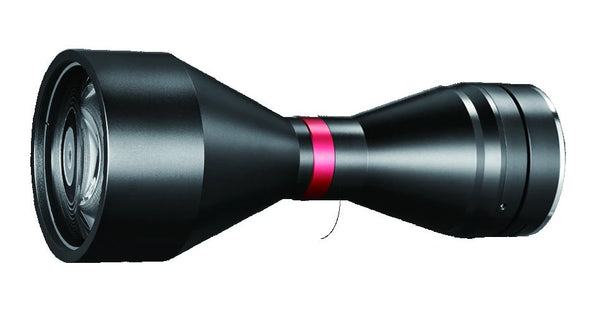

LS-TCL-2728Bi-telecentric lens for 35 mm Full cameras, 0.781x, WD 138 mm 0.781xF-mountFull frame138±2 mm46.3x30.8 mm-From $2,109.00 Ships in 2-3 weeks
LS-TCL-2726Bi-telecentric lens for 35 mm Full cameras, 0.911x, WD 128 mm 0.911xF-mountFull frame128±2 mm39.7x26.4 mm-From $1,949.00 Ships in 2-3 weeks

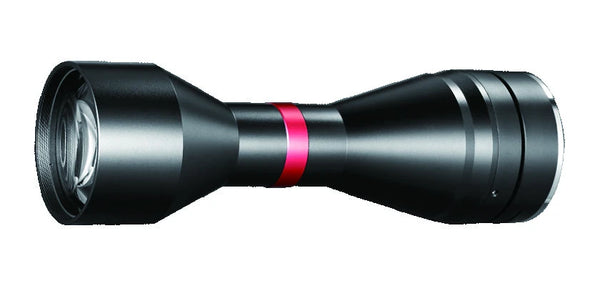

LS-TCL-2724Bi-telecentric lens for 35 mm Full cameras, 1.035x, WD 119 mm 1.035xF-mountFull frame119±2 mm32.8x24.6 mm-From $2,049.00 Ships in 2-3 weeks
LS-TCL-2723Bi-telecentric lens for 35 mm Full cameras, 1.208x, WD 111 mm 1.208xF-mountFull frame111±2 mm29.9x19.9 mm-From $1,849.00 Ships in 2-3 weeks
LS-TCL-2722Bi-telecentric lens for 35 mm Full cameras, 1.503x, WD 72 mm 1.503xF-mountFull frame72±2 mm24.0x16.0 mm-From $2,039.00 Ships in 2-3 weeks
LS-TCL-16500.145x, WD 465 mm, M58-mount telecentric lens 0.145xM58Full frame465±6 mmØ 300 mmF6.7$8,709.00Quote Ships in 2-3 weeks
LS-TCL-16240.147x, WD 465 mm telecentric lens 0.147xF-mount, M42, M58Full frame465±6 mmØ 300 mmF10.3$8,219.00Quote Ships in 2-3 weeks

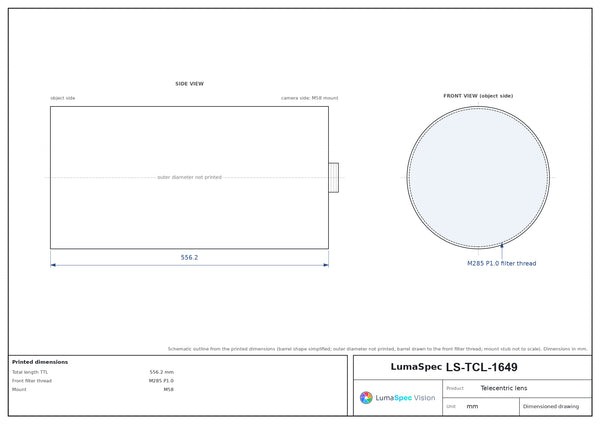

LS-TCL-16490.169x, WD 338 mm, M58-mount telecentric lens 0.169xM58Full frame338±5 mmØ 258 mmF6$7,229.00Quote Ships in 2-3 weeks
LS-TCL-16230.171x, WD 338 mm telecentric lens 0.171xF-mount, M42, M58Full frame338±5 mmØ 258 mmF10.3$6,839.00Quote Ships in 2-3 weeks
LS-TCL-16480.182x, WD 410 mm, M58-mount telecentric lens 0.182xM58Full frame410±6 mmØ 240 mmF6$6,719.00Quote Ships in 2-3 weeks
LS-TCL-16220.183x, WD 410 mm telecentric lens 0.183xF-mount, M42, M58Full frame410±6 mmØ 240 mmF10.3$6,449.00Quote Ships in 2-3 weeks
LS-TCL-16470.202x, WD 372 mm, M58-mount telecentric lens 0.202xM58Full frame372±5 mmØ 216 mmF10.4$6,049.00Quote Ships in 2-3 weeks
LS-TCL-16210.204x, WD 372 mm telecentric lens 0.204xF-mount, M42, M58Full frame372±5 mmØ 216 mmF10.4$5,859.00Quote Ships in 2-3 weeks
LS-TCL-16460.229x, WD 330 mm, M58-mount telecentric lens 0.229xM58Full frame330±5 mmØ 190 mmF6$5,359.00Quote Ships in 2-3 weeks
LS-TCL-16200.232x, WD 330 mm telecentric lens 0.232xF-mount, M42, M58Full frame330±5 mmØ 190 mmF10.3$5,389.00Quote Ships in 2-3 weeks

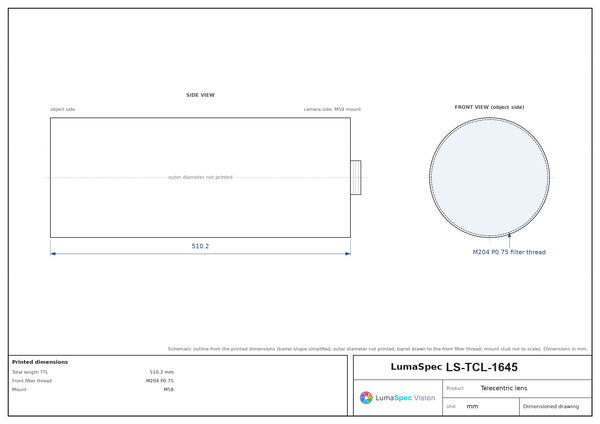

LS-TCL-16450.256x, WD 318 mm, M58-mount telecentric lens 0.256xM58Full frame318±5 mmØ 170 mmF6$4,839.00 Ships in 2-3 weeks
LS-TCL-16190.259x, WD 318 mm telecentric lens 0.259xF-mount, M42, M58Full frame318±5 mmØ 170 mmF10.3$4,749.00 Ships in 2-3 weeks
LS-TCL-16440.291x, WD 300 mm, M58-mount telecentric lens 0.291xM58Full frame300±5 mmØ 150 mmF14.6$4,359.00 Ships in 2-3 weeks
LS-TCL-16180.293x, WD 300 mm telecentric lens 0.293xF-mount, M42, M58Full frame300±5 mmØ 150 mmF14.8$4,269.00 Ships in 2-3 weeks

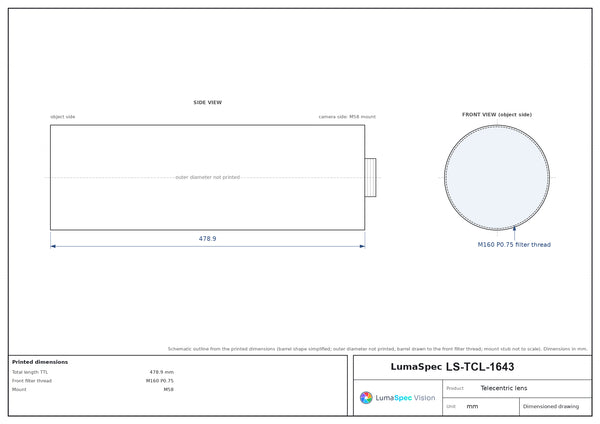

LS-TCL-16430.321x, WD 288 mm, M58-mount telecentric lens 0.321xM58Full frame288±5 mmØ 136 mmF7.9$4,009.00 Ships in 2-3 weeks
LS-TCL-16170.324x, WD 288 mm telecentric lens 0.324xF-mount, M42, M58Full frame288±5 mmØ 136 mmF10.3$3,949.00 Ships in 2-3 weeks
LS-TCL-16420.363x, WD 273 mm, M58-mount telecentric lens 0.363xM58Full frame273±5 mmØ 120 mmF8.5$3,639.00 Ships in 2-3 weeks
LS-TCL-16160.367x, WD 273 mm telecentric lens 0.367xF-mount, M42, M58Full frame273±5 mmØ 120 mmF10.3$3,639.00 Ships in 2-3 weeks
