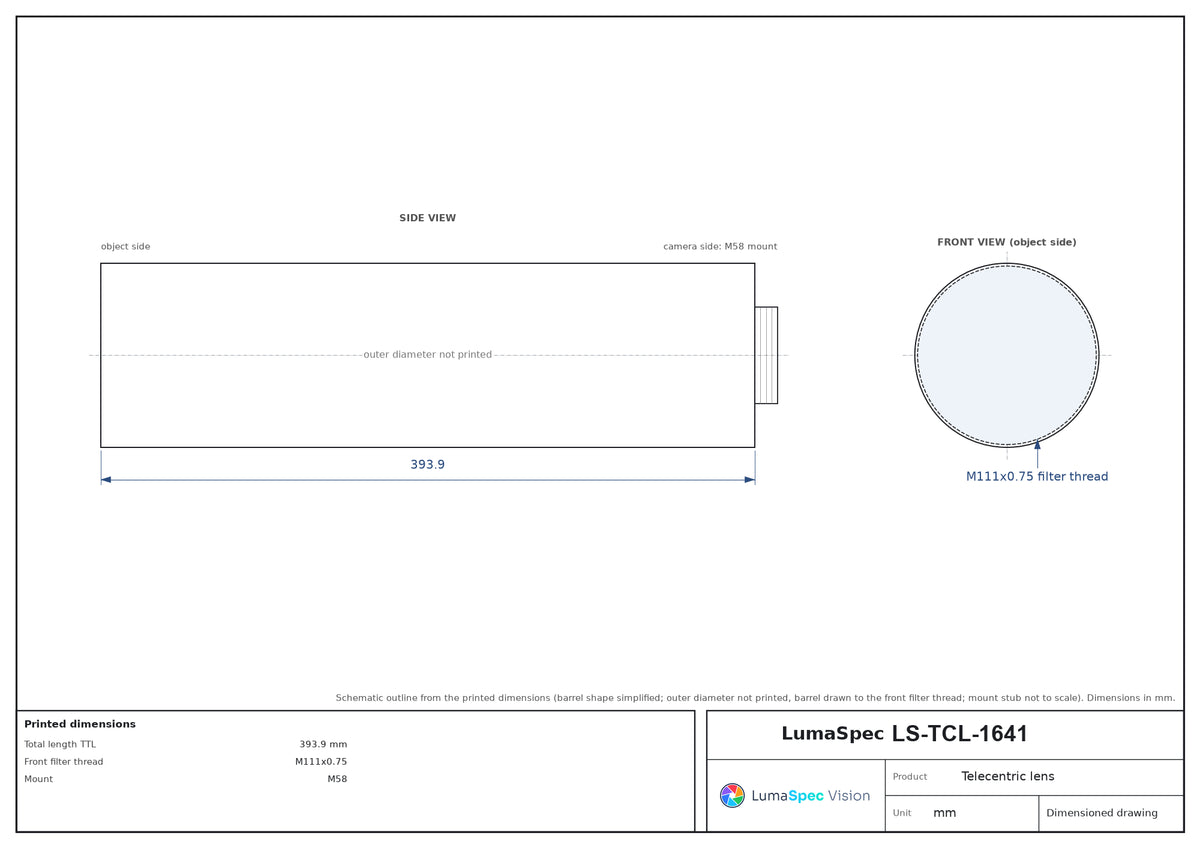

  • LS-TCL-1641 dimensions (mm)

Telecentric lenses

0.396x, WD 263 mm, M58-mount Telecentric Lens (LS-TCL-1641)

Model LS-TCL-1641

  • Magnification0.396x
  • MountM58
  • SensorFull frame
  • Working distance263±4
  • Aperture9.3
  • Field of view110
$3,379.00

Ships in 2-3 weeks

4.92 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.396x, WD 263 mm, M58-mount Telecentric Lens (LS-TCL-1641)LS-TCL-1641

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.396x, WD 263 mm, M58-mount Telecentric Lens. At a glance: magnification 0.396x; working distance 263±4 mm; max sensor size 43.6 mm (35mm Full); object field of view 110 mm; image-side f/# 9.3.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1641

Optics

Object field of view (dia. mm)110
Magnification (x)0.396
Working distance (mm)263±4
Image-side F/#9.3
Image-side MTF30 (lp/mm)>90
Theoretical depth of field (mm)±4.1@F16
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)669±6
Total length TTL (mm)393.9
Front filter threadM111x0.75

Sensor and imaging

Max sensor size (dia. mm)43.6(35mm Full)

Mechanical

MountM58
Net weight (kg)3.44
Shipping weight (estimated)4.92 kg

Photo shows a representative model of this series; see the specifications for this model.
