0.484x, WD 208 mm, M58-mount Telecentric Lens (LS-TCL-1638)
Model LS-TCL-1638
- Magnification0.484x
- MountM58
- SensorFull frame
- Working distance208±3
- Aperture11.4
- Field of view90
$2,899.00
In stock - ships the same business day (5 available, order by 2 PM ET)
3.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.484x, WD 208 mm, M58-mount Telecentric Lens. At a glance: magnification 0.484x; working distance 208±3 mm; max sensor size 43.6 mm (35mm Full); object field of view 90 mm; image-side f/# 11.4.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1638 |
|---|
Optics
| Object field of view (dia. mm) | 90 |
|---|---|
| Magnification (x) | 0.484 |
| Working distance (mm) | 208±3 |
| Image-side F/# | 11.4 |
| Image-side MTF30 (lp/mm) | >75 |
| Theoretical depth of field (mm) | ±3.4@F20 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 561±3 |

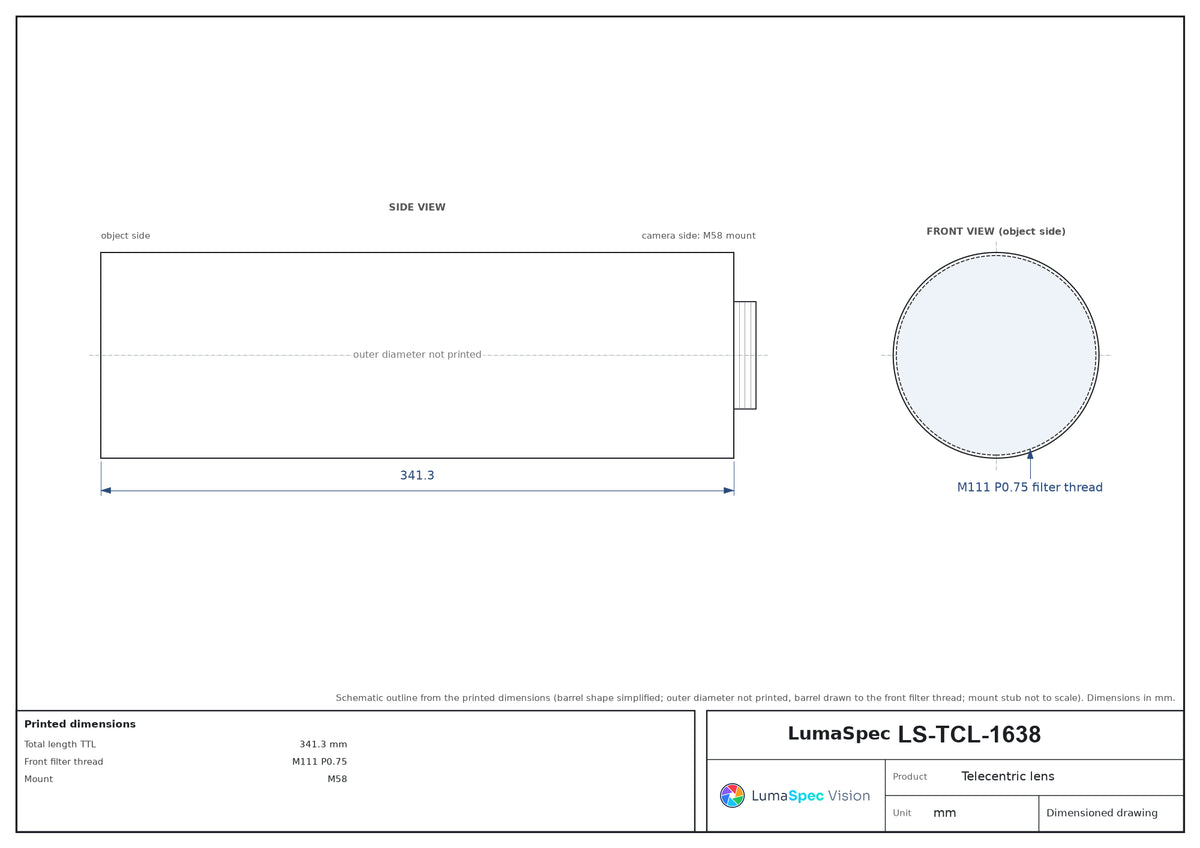

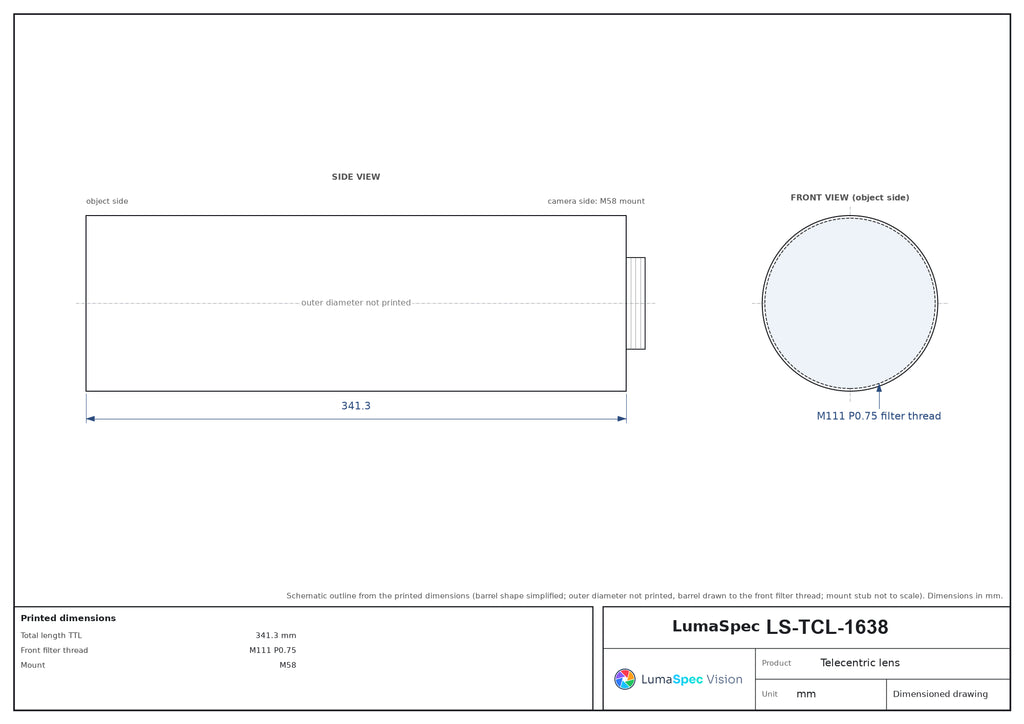

| Total length TTL (mm) | 341.3 |
| Front filter thread | M111 P0.75 |
Sensor and imaging
| Max sensor size (dia. mm) | 43.6(35mm Full) |
|---|
Mechanical
| Mount | M58 |
|---|---|
| Net weight (kg) | 2.444 |
| Shipping weight (estimated) | 3.52 kg |
Photo shows a representative model of this series; see the specifications for this model.
