Telecentric lenses
0.267x, WD 208 mm, 4/3", M58-mount Telecentric Lens (LS-TCL-1699)
Model LS-TCL-1699
- Magnification0.267x
- MountM58
- Sensor4/3"
- Working distance208±3
- Aperture7.5
- Field of view90
$2,899.00
Ships in 2-3 weeks
3.18 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.267x, WD 208 mm, 4/3", M58-mount Telecentric Lens. At a glance: magnification 0.267x; working distance 208±3 mm; max sensor size 24 mm (4/3"); object field of view 90 mm; image-side f/# 7.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1699 |
|---|
Optics
| Object field of view (dia. mm) | 90 |
|---|---|
| Magnification (x) | 0.267 |
| Working distance (mm) | 208±3 |
| Image-side F/# | 7.5 |
| Image-side MTF30 (lp/mm) | >120 |
| Theoretical depth of field (mm) | ±9.0@F16 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 498±3 |

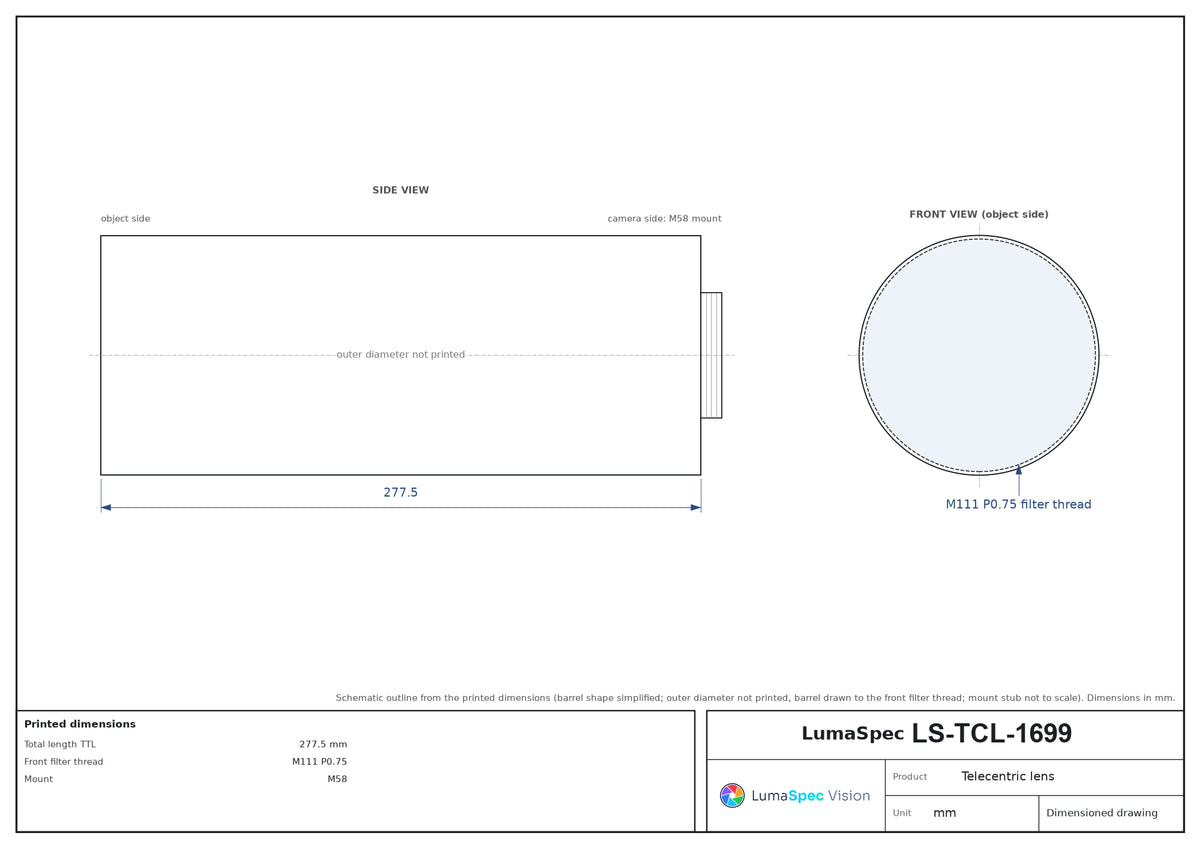

| Total length TTL (mm) | 277.5 |
| Front filter thread | M111 P0.75 |
Sensor and imaging
| Max sensor size (dia. mm) | 24(4/3") |
|---|
Mechanical
| Mount | M58 |
|---|---|
| Net weight (kg) | 2.2 |
| Shipping weight (estimated) | 3.18 kg |
Photo shows a representative model of this series; see the specifications for this model.
