Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

1393-1416 of 1422 models

Products

Compare
LS-TCL-13481x, WD 102 mm, M72-mount telecentric lens 1xM72Large format102 mm7Ø 62 mm$2,279.00 Ships in 2-3 weeks
LS-TCL-13280.3x, WD 158 mm, 1.1", C-mount telecentric lens 0.3xC-mount1.1"158 mm6.2Ø 61.3 mm$2,209.00 Ships in 2-3 weeks
LS-TCL-13260.37x, WD 250 mm, 1.1", C-mount telecentric lens 0.37xC-mount1.1"250 mm7.1Ø 48.7 mm$1,919.00 Ships in 2-3 weeks

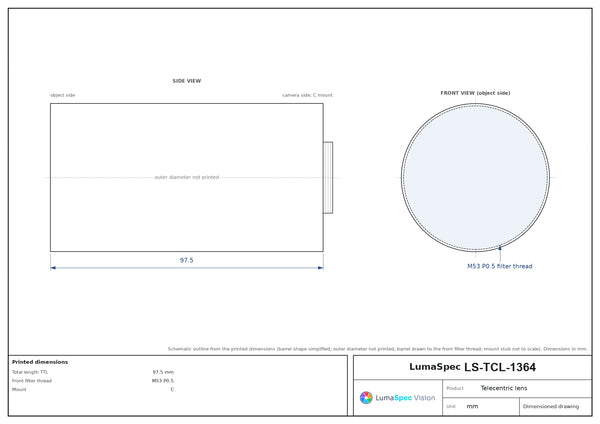

LS-TCL-13640.55x, WD 83 mm, 4/3", C-mount telecentric lens 0.55xC-mount4/3"83 mm8Ø 41.8 mm$1,769.00 Ships in 2-3 weeks

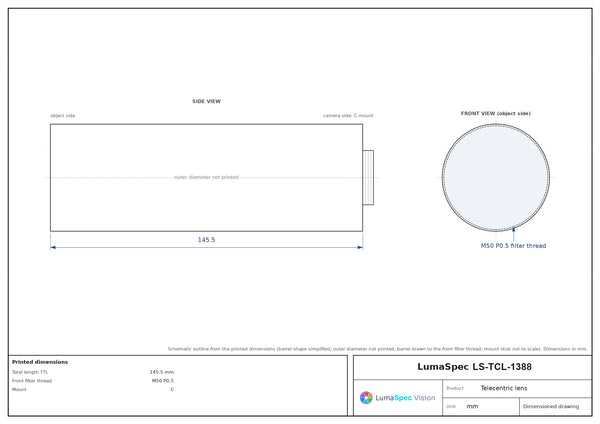

LS-TCL-13880.3x, WD 110 mm, 2/3", C-mount telecentric lens, length 145.5 mm with coaxial light 0.3xC-mount2/3"110 mm3.75 to closedØ 37 mm$1,649.00 Ships in 2-3 weeks
LS-TCL-13870.3x, WD 110 mm, 2/3", C-mount telecentric lens, length 145.5 mm 0.3xC-mount2/3"110 mm3.75 to closedØ 37 mm$1,649.00 Ships in 2-3 weeks
LS-TCL-13850.4x, WD 85 mm, 2/3", C-mount telecentric lens with coaxial light 0.4xC-mount2/3"85 mm4.5Ø 27.5 mm$1,429.00 Ships in 2-3 weeks

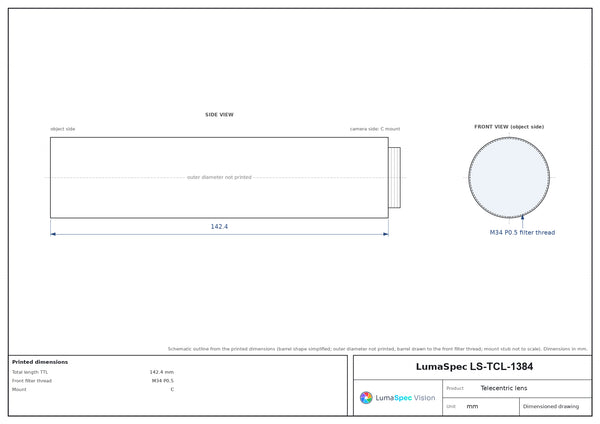

LS-TCL-13840.4x, WD 85 mm, 2/3", C-mount telecentric lens 0.4xC-mount2/3"85 mm4.5Ø 27.5 mm$1,429.00 Ships in 2-3 weeks
LS-TCL-13731x, WD 160 mm, 1.75", M42-mount telecentric lens 1xM421.75"160 mm12Ø 28 mm$1,449.00 Ships in 2-3 weeks
LS-TCL-13711x, WD 83 mm, 1.75", M42-mount telecentric lens 1xM421.75"83 mm11Ø 28.2 mm$1,449.00 Ships in 2-3 weeks
LS-TCL-13721x, WD 128 mm, 1.75", M42-mount telecentric lens 1xM421.75"128 mm11Ø 28.2 mm$1,449.00 Ships in 2-3 weeks
LS-TCL-13800.5x, WD 65 mm, 2/3", C-mount telecentric lens, 6.7 um object-side resolution 0.5xC-mount2/3"65 mm5Ø 22 mm$1,309.00 Ships in 2-3 weeks
LS-TCL-13790.5x, WD 65 mm, 2/3", C-mount telecentric lens, 6.71 um object-side resolution 0.5xC-mount2/3"65 mm5Ø 22 mm$1,309.00 Ships in 2-3 weeks
LS-TCL-13701.846x, WD 71 mm, 1.75", M42-mount telecentric lens 1.846xM421.75"71 mm20Ø 15.7 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-13582x, WD 39 mm, 4/3", C-mount telecentric lens 2xC-mount4/3"39 mm9.5Ø 11.5 mm$1,069.00 Ships in 2-3 weeks
LS-TCL-10410.462x, WD 378 mm, M58-mount telecentric lens with coaxial light, 3.7 kg 0.462xM58Full frame378 mm8Ø 94 mm$3,019.00 Ships in 2-3 weeks
LS-TCL-10400.462x, WD 378 mm, M58-mount telecentric lens, 3.7 kg 0.462xM58Full frame378 mm8Ø 94 mm$3,019.00 Ships in 2-3 weeks
LS-TCL-10430.53x, WD 338 mm, M58-mount telecentric lens with coaxial light, 3.8 kg 0.53xM58Full frame338 mm10Ø 82 mm$2,749.00 Ships in 2-3 weeks
LS-TCL-10420.53x, WD 338 mm, M58-mount telecentric lens, 3.8 kg 0.53xM58Full frame338 mm10Ø 82 mm$2,749.00 Ships in 2-3 weeks
LS-TCL-10311x, WD 102 mm, M58-mount telecentric lens with coaxial light 1xM58Full frame102 mm6.1-32Ø 44 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-10301x, WD 102 mm, M58-mount telecentric lens 1xM58Full frame102 mm6.1-32Ø 44 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-10291.5x, WD 93 mm, M58-mount telecentric lens 1.5xM58Full frame93 mm7.6-32Ø 29.3 mm$2,129.00 Ships in 2-3 weeks
LS-TCL-10332x, WD 100 mm, M58-mount telecentric lens 2xM58Full frame100 mm8-32Ø 22 mm$1,849.00 Ships in 2-3 weeks
LS-TCL-10322x, WD 100 mm, M58-mount telecentric lens with coaxial light 2xM58Full frame100 mm8-32Ø 22 mm$1,849.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
