Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

1345-1368 of 1422 models

Products

Compare

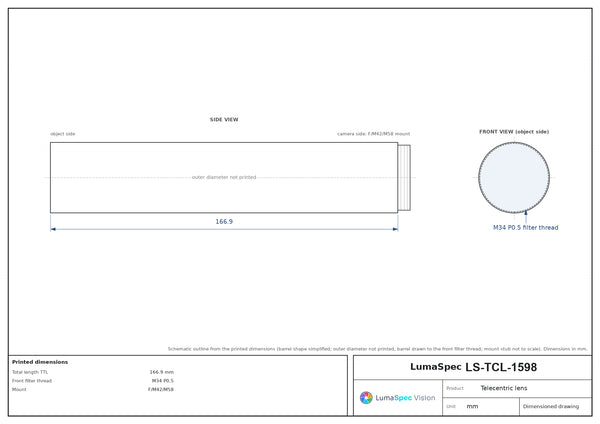

LS-TCL-15981.83x, WD 43 mm telecentric lens 1.83xF-mount, M42, M58Full frame43±1 mmF13.8Ø 24 mm$1,849.00 Ships in 2-3 weeks
LS-TCL-15971.864x, WD 40 mm telecentric lens 1.864xF-mount, M42, M58Full frame40±1 mmF10.3Ø 23.6 mm$1,849.00 Ships in 2-3 weeks

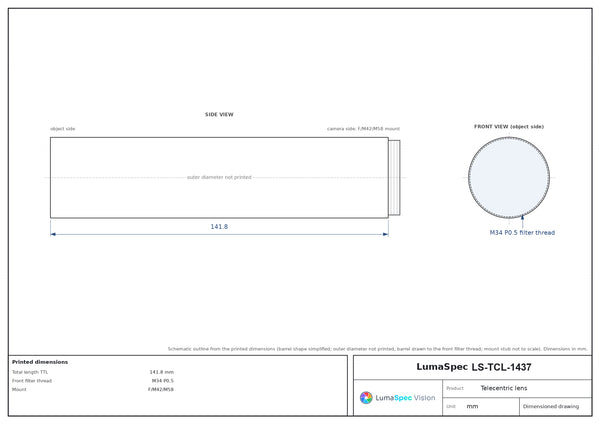

LS-TCL-14371.375x, WD 43 mm, 2" telecentric lens 1.375xF-mount, M42, M582"43±1 mmF10.3Ø 24 mm$1,359.00 Ships in 2-3 weeks
LS-TCL-14361.398x, WD 40 mm, 2" telecentric lens 1.398xF-mount, M42, M582"40±1 mmF7.8Ø 23.6 mm$1,349.00 Ships in 2-3 weeks

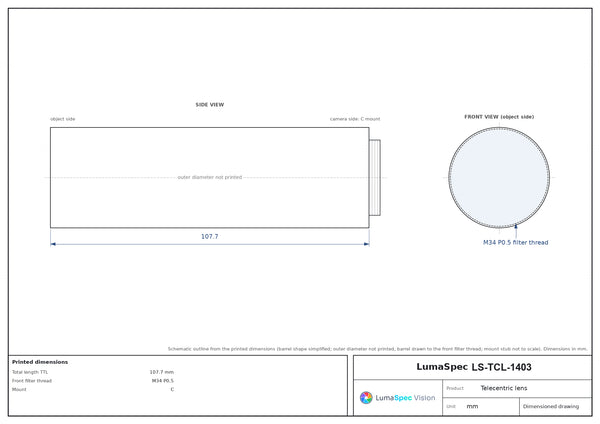

LS-TCL-14030.692x, WD 43 mm, 1", C-mount telecentric lens 0.692xC-mount1"43±1 mmF6.5Ø 24 mm$1,359.00 Ships in 2-3 weeks
LS-TCL-14020.703x, WD 40 mm, 1", C-mount telecentric lens 0.703xC-mount1"40±1 mmF6.5Ø 23.6 mm$1,349.00 Ships in 2-3 weeks
LS-TCL-15620.375x, WD 43 mm, 1/1.8", C-mount telecentric lens 0.375xC-mount1/1.8"43±1 mmF4.6Ø 24 mm$1,949.00 Ships in 2-3 weeks
LS-TCL-15610.381x, WD 40 mm, 1/1.8", C-mount telecentric lens 0.381xC-mount1/1.8"40±1 mmF4.6Ø 23.6 mm$1,939.00 Ships in 2-3 weeks
LS-TCL-18101.208x, WD 43 mm, 1.75" telecentric lens 1.208xF-mount, M42, M581.75"43±1 mmF9Ø 24 mm$1,359.00 Ships in 2-3 weeks
LS-TCL-18091.229x, WD 40 mm, 1.75" telecentric lens 1.229xF-mount, M42, M581.75"40±1 mmF6.8Ø 23.6 mm$1,349.00 Ships in 2-3 weeks
LS-TCL-15080.333x, WD 43 mm, 1/2", C-mount telecentric lens 0.333xC-mount1/2"43±1 mmF4.2Ø 24 mm$1,359.00 Ships in 2-3 weeks
LS-TCL-15070.339x, WD 40 mm, 1/2", C-mount telecentric lens 0.339xC-mount1/2"40±1 mmF22.7Ø 23.6 mm$1,349.00 Ships in 2-3 weeks
LS-TCL-17540.3x, WD 43 mm, 1/2.5", C-mount telecentric lens 0.3xC-mount1/2.5"43±1 mmF4.2Ø 24 mm$1,739.00 Ships in 2-3 weeks
LS-TCL-17530.305x, WD 40 mm, 1/2.5", C-mount telecentric lens 0.305xC-mount1/2.5"40±1 mmF4.2Ø 23.6 mm$1,939.00 Ships in 2-3 weeks

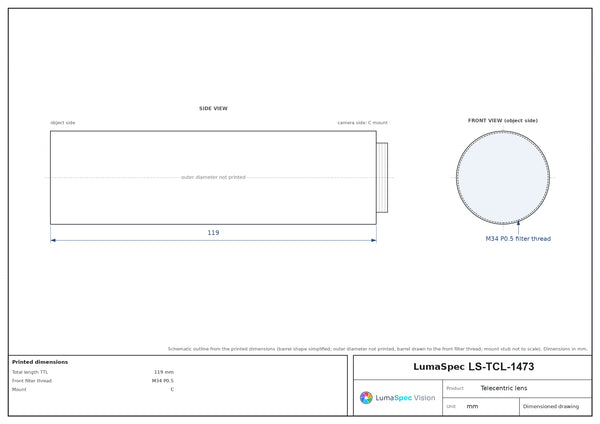

LS-TCL-14730.767x, WD 43 mm, 1.1", C-mount telecentric lens 0.767xC-mount1.1"43±1 mmF6.2Ø 24 mm$1,359.00 Ships in 2-3 weeks
LS-TCL-14720.78x, WD 40 mm, 1.1", C-mount telecentric lens 0.78xC-mount1.1"40±1 mmF6.2Ø 23.6 mm$1,349.00 Ships in 2-3 weeks
LS-TCL-18460.687x, WD 24 mm, 2/3", C-mount telecentric lens 0.687xC-mount2/3"24±1 mmF4.9Ø 16.6 mm$1,189.00 Ships in 2-3 weeks

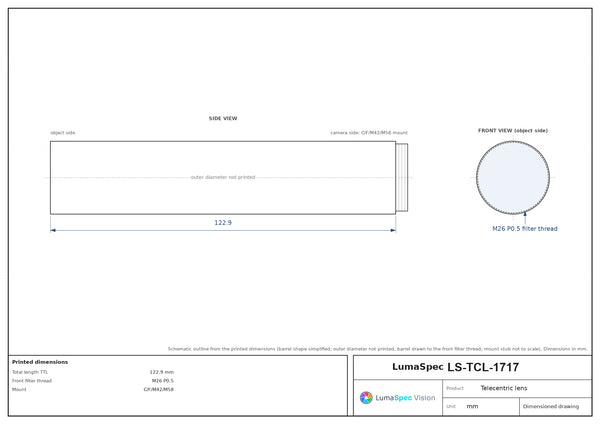

LS-TCL-17171.422x, WD 24 mm, 4/3" telecentric lens 1.422xC-mount, F-mount, M42, M584/3"24±1 mmF9.3Ø 16.6 mm$1,259.00 Ships in 2-3 weeks

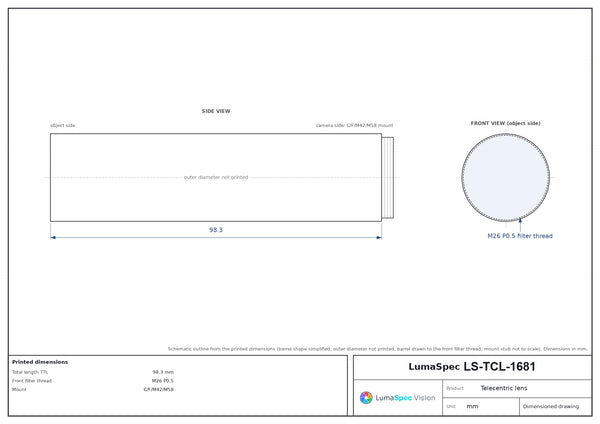

LS-TCL-16811.446x, WD 24 mm, 4/3" telecentric lens 1.446xC-mount, F-mount, M42, M584/3"24±1 mmF9.4Ø 16.6 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-14011x, WD 24 mm, 1", C-mount telecentric lens 1xC-mount1"24±1 mmF6.5Ø 16.6 mm$1,189.00 Ships in 2-3 weeks
LS-TCL-15600.542x, WD 24 mm, 1/1.8", C-mount telecentric lens 0.542xC-mount1/1.8"24±1 mmF4.6Ø 16.6 mm$1,529.00 Ships in 2-3 weeks
LS-TCL-15060.482x, WD 24 mm, 1/2", C-mount telecentric lens 0.482xC-mount1/2"24±1 mmF19.8Ø 16.6 mm$1,189.00 Ships in 2-3 weeks
LS-TCL-17520.434x, WD 24 mm, 1/2.5", C-mount telecentric lens 0.434xC-mount1/2.5"24±1 mmF4.2Ø 16.6 mm$1,609.00 Ships in 2-3 weeks
LS-TCL-14711.108x, WD 24 mm, 1.1", C-mount telecentric lens 1.108xC-mount1.1"24±1 mmF7.2Ø 16.6 mm$1,189.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.

Configure a system · Browse all Telecentric lenses
