Telecentric lenses
0.462x, WD 378 mm, M58-mount Telecentric Lens (LS-TCL-1040)
Model LS-TCL-1040
- Magnification0.462x
- MountM58
- SensorFull frame
- Working distance378 mm
- Aperture8
- Field of view94
$3,019.00
Ships in 2-3 weeks
5.28 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.462x, WD 378 mm, M58-mount Telecentric Lens. At a glance: magnification 0.462x; working distance 378 mm; max sensor size 43.4 mm; object field of view 94 mm; object-side resolution 11.6 µm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1040 |
|---|---|
| Object FOV (dia. mm) | 94 |
| Theoretical DOF (mm) | ±1.5@F8.0 |
| N.A. | 0.02889 |
| Shipped DOF (mm) | 1 |
Optics
| Telecentric type | Bi-telecentric |
|---|---|
| Object field of view (dia. mm) | 94 |
| Magnification (x) | 0.462 |
| Working distance (mm) | 378 |
| Image-side F/# | 8 |
| Image-side MTF30 (lp/mm) | >115 |
| Theoretical depth of field (mm) | ±1.5@F8.0 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 847 |
| Numerical aperture NA | 0.02889 |
| Object-side resolution (um) | 11.6 |
| Total length TTL (mm) | 456.9 |
| Manual iris | No |
| Coaxial illumination | No |
| Front filter thread | M126 P0.75 |
| Measured depth of field as shipped (mm) | 1 |
| Distortion (% max) | <0.1 |
| Telecentricity (° max) | <0.1 |
| Object-to-image distance (mm) | 847 |
| Coaxial light | No |
Sensor and imaging
| Max sensor size (dia. mm) | 43.4 |
|---|---|
| Supported sensor (dia. mm) | 43.4 |
| Object resolution (µm) | 11.6 |

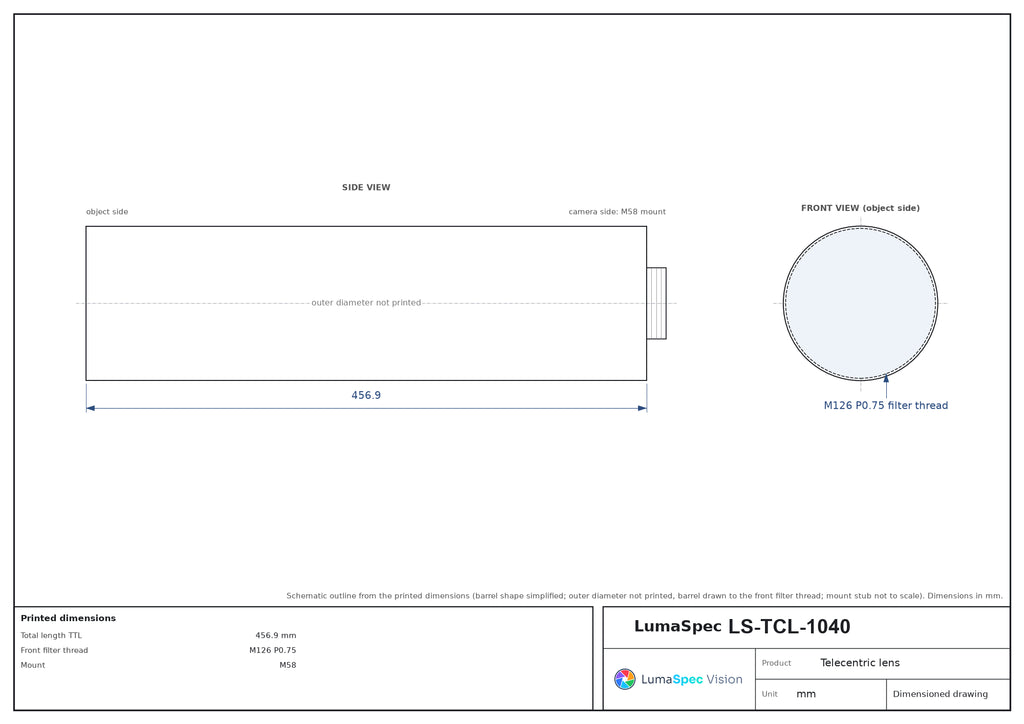

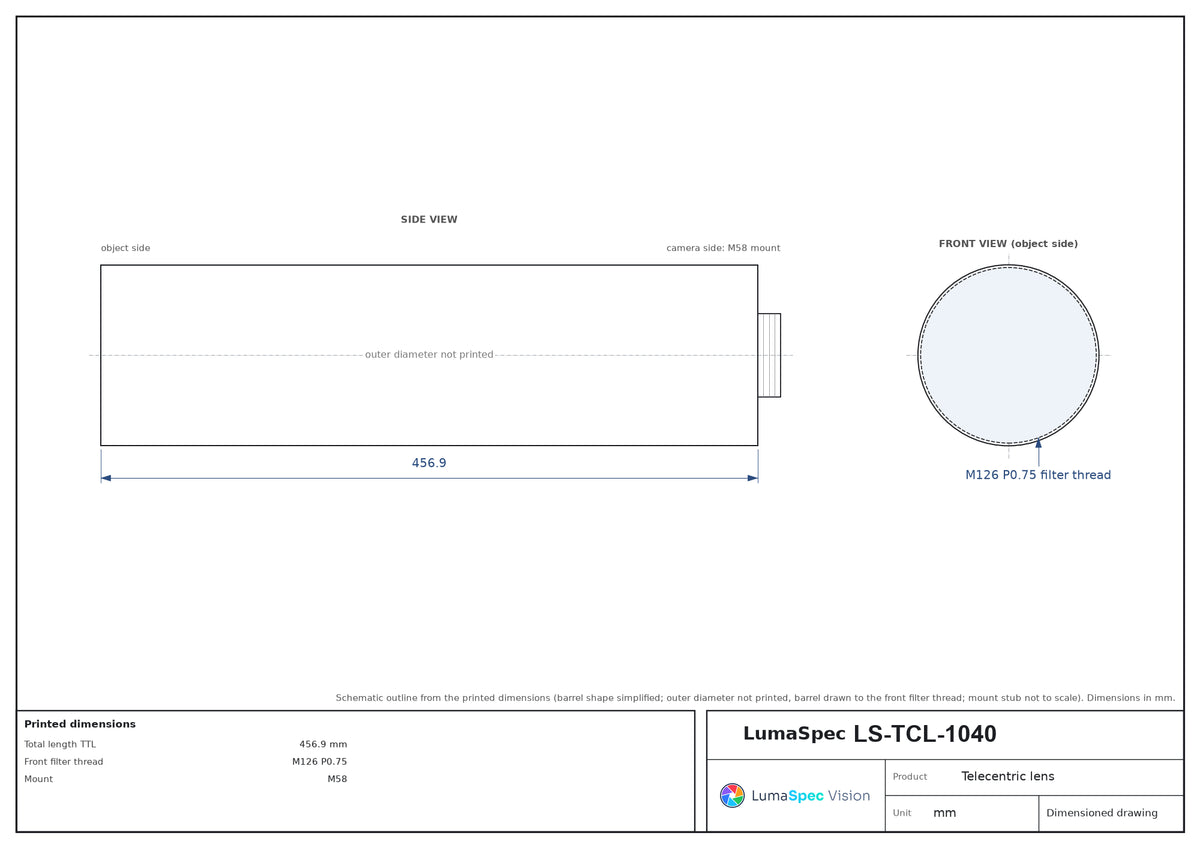

Mechanical
| Mount | M58 |
|---|---|
| Net weight (kg) | 3.7 |
| Weight (kg) | 3.7 |
| Shipping weight (estimated) | 5.28 kg |
Photo shows a representative model of this series; see the specifications for this model.
