Lenses

2/3-inch telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for 2/3-inch sensors cover an image circle of at least 11 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses

843 models Configure a systemAll lenses
2/3-inch telecentric lenses

361-384 of 843 models

Products

Compare
LS-TCL-2868Megapixel telecentric lens, 1x, WD 65 mm, 2/3", C-mount with coaxial light 1.0xC-mount2/3"65±1 mmF11.17.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2876Megapixel telecentric lens, 1x, WD 330 mm, 2/3", C-mount, 197.6 mm long 1.0xC-mount2/3"330±3 mmF28.619.3 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2875Megapixel telecentric lens, 1x, WD 330 mm, 2/3", C-mount, 199.7 mm long 1.0xC-mount2/3"330±3 mmF28.619.3 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2872Megapixel telecentric lens, 1x, WD 110 mm, 2/3", C-mount, 138.2 mm long, yes iris 1.0xC-mount2/3"110±2 mmF10.77.1 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2871Megapixel telecentric lens, 1x, WD 110 mm, 2/3", C-mount, 138.2 mm long, no iris 1.0xC-mount2/3"110±2 mmF10.77.1 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2870Megapixel telecentric lens, 1x, WD 110 mm, 2/3", C-mount, 133.9 mm long, yes iris 1.0xC-mount2/3"110±2 mmF10.77.1 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2869Megapixel telecentric lens, 1x, WD 110 mm, 2/3", C-mount, 133.9 mm long, no iris 1.0xC-mount2/3"110±2 mmF10.77.1 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2879Megapixel telecentric lens, 1x, WD 510 mm, 2/3", C-mount 1.0xC-mount2/3"510±3 mmF25.717.0 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2882Megapixel telecentric lens, 1.5x, WD 65 mm, 2/3", C-mount with coaxial light 1.5xC-mount2/3"65±1 mmF12.55.6 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2881Megapixel telecentric lens, 1.5x, WD 65 mm, 2/3", C-mount 1.5xC-mount2/3"65±1 mmF12.55.6 μm$1,239.00 Ships in 2-3 weeks

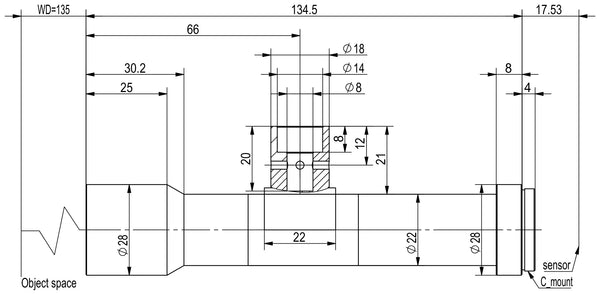

LS-TCL-2886Megapixel telecentric lens, 1.5x, WD 135 mm, 2/3", C-mount, 134.5 mm long 1.5xC-mount2/3"135±2 mmF206.2 μm$1,239.00 Ships in 2-3 weeks

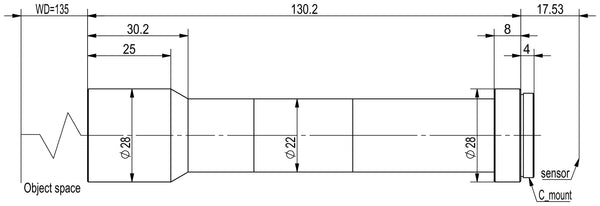

LS-TCL-2885Megapixel telecentric lens, 1.5x, WD 135 mm, 2/3", C-mount, 130.2 mm long 1.5xC-mount2/3"135±2 mmF206.2 μm$1,239.00 Ships in 2-3 weeks

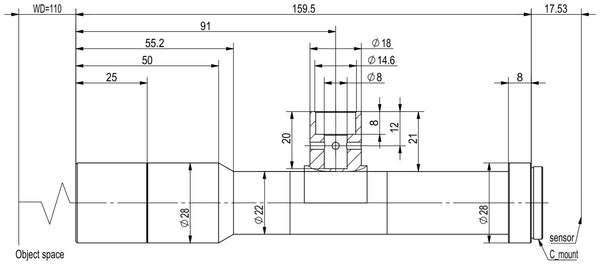

LS-TCL-2884Megapixel telecentric lens, 1.5x, WD 110 mm, 2/3", C-mount, 159.5 mm long 1.5xC-mount2/3"110±2 mmF206.2 μm$1,239.00 Ships in 2-3 weeks

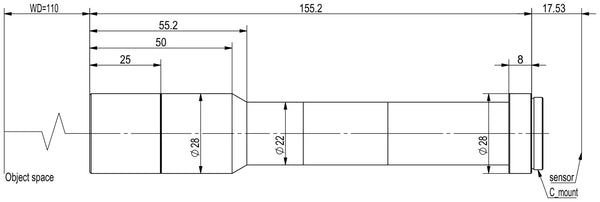

LS-TCL-2883Megapixel telecentric lens, 1.5x, WD 110 mm, 2/3", C-mount, 155.2 mm long 1.5xC-mount2/3"110±2 mmF206.2 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2889Megapixel telecentric lens, 2x, WD 65 mm, 2/3", C-mount with coaxial light 2.0xC-mount2/3"65±1 mmF13.24.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2888Megapixel telecentric lens, 2x, WD 65 mm, 2/3", C-mount 2.0xC-mount2/3"65±1 mmF13.24.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2893Megapixel telecentric lens, 2x, WD 110 mm, 2/3", C-mount, 151.7 mm long, yes iris 2.0xC-mount2/3"110±2 mmF18.26.3 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2892Megapixel telecentric lens, 2x, WD 110 mm, 2/3", C-mount, 151.7 mm long, no iris 2.0xC-mount2/3"110±2 mmF18.26.3 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2891Megapixel telecentric lens, 2x, WD 110 mm, 2/3", C-mount, 147.4 mm long, yes iris 2.0xC-mount2/3"110±2 mmF18.26.3 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2890Megapixel telecentric lens, 2x, WD 110 mm, 2/3", C-mount, 147.4 mm long, no iris 2.0xC-mount2/3"110±2 mmF18.26.3 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-2895Megapixel telecentric lens, 4x, WD 110 mm, 2/3", C-mount, 133.1 mm long 4.0xC-mount2/3"110±2 mmF25.64.5 μm$1,229.00 Ships in 2-3 weeks
LS-TCL-2894Megapixel telecentric lens, 4x, WD 110 mm, 2/3", C-mount, 128.8 mm long 4.0xC-mount2/3"110±2 mmF25.64.5 μm$1,229.00 Ships in 2-3 weeks

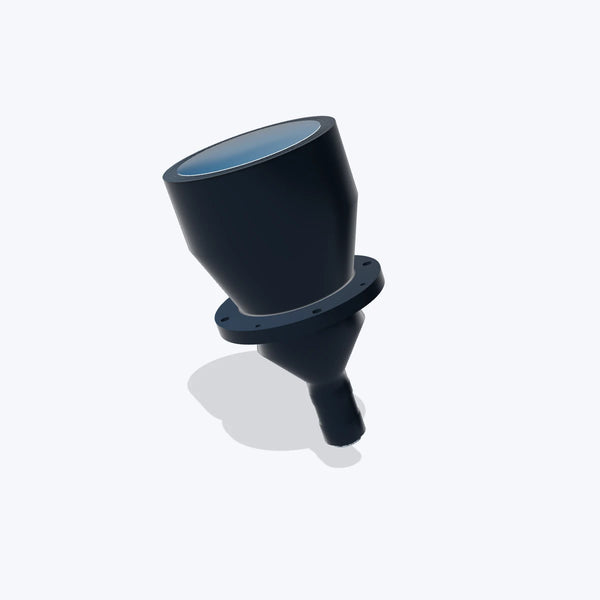

LS-TCL-2716Bi-telecentric lens for 2/3" cameras, 0.115x, WD 238 mm, C-mount 0.115xC-mount2/3"238±3 mm--$2,529.00 Ships in 2-3 weeks

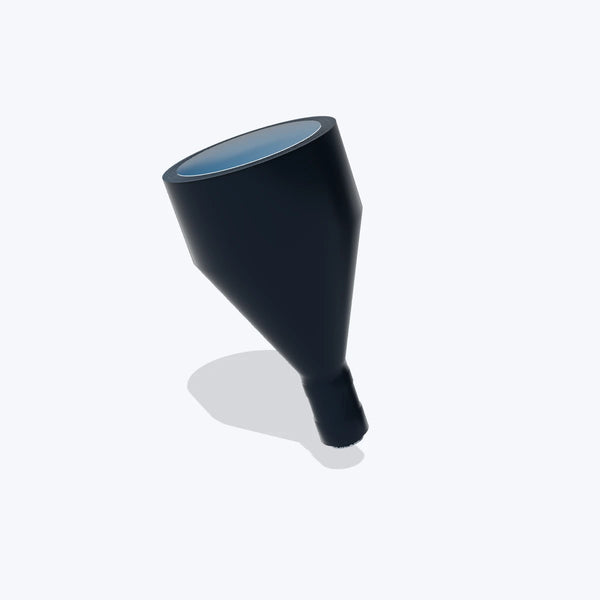

LS-TCL-2714Bi-telecentric lens for 2/3" cameras, 0.127x, WD 208 mm, C-mount 0.127xC-mount2/3"208±2 mm--$2,349.00 Ships in 2-3 weeks
