2/3-inch telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for 2/3-inch sensors cover an image circle of at least 11 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses

843 models Configure a systemAll lenses
2/3-inch telecentric lenses

337-360 of 843 models

Products

Compare
LS-TCL-3005Bi-telecentric lens for 2/3" sensor, 0.4x, WD 110 mm 0.4xC-mount2/3"110 mmF7-$1,439.00 Ships in 2-3 weeks
LS-TCL-3008Bi-telecentric lens for 2/3" sensor, 0.7x, WD 110 mm 0.7xC-mount2/3"110 mmF10-$1,169.00 Ships in 2-3 weeks

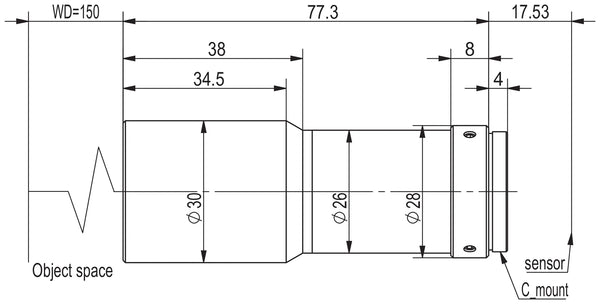

LS-TCL-2887Megapixel telecentric lens, 0.18x, WD 150 mm, 2/3", C-mount 0.18xC-mount2/3"150±2 mmF12.631.25 μm$2,139.00 Ships in 2-3 weeks

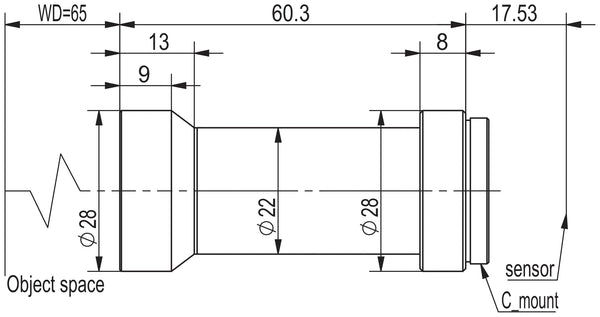

LS-TCL-2842Megapixel telecentric lens, 0.5x, WD 65 mm, 2/3", C-mount 0.5xC-mount2/3"65±3 mmF139.7 μm$1,199.00 Ships in 2-3 weeks

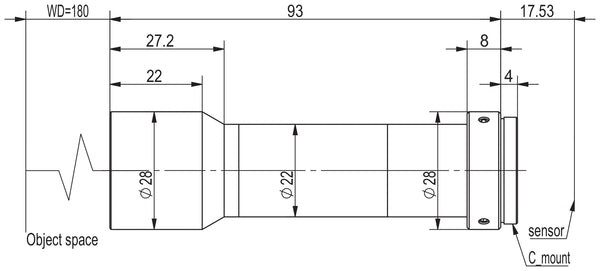

LS-TCL-2848Megapixel telecentric lens, 0.5x, WD 180 mm, 2/3", C-mount 0.5xC-mount2/3"180±2 mmF1512.4 μm$1,199.00 Ships in 2-3 weeks

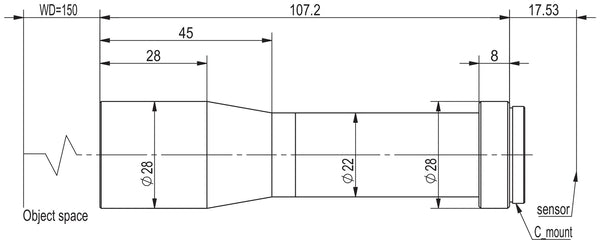

LS-TCL-2847Megapixel telecentric lens, 0.5x, WD 150 mm, 2/3", C-mount 0.5xC-mount2/3"150±2 mmF129.7 μm$1,199.00 Ships in 2-3 weeks
LS-TCL-2846Megapixel telecentric lens, 0.5x, WD 110 mm, 2/3", C-mount with coaxial light, yes iris 0.5xC-mount2/3"110±2 mmF9.612.9 μm$1,199.00 Ships in 2-3 weeks

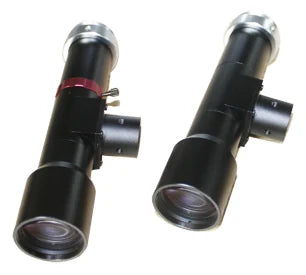

LS-TCL-2845Megapixel telecentric lens, 0.5x, WD 110 mm, 2/3", C-mount with coaxial light, no iris 0.5xC-mount2/3"110±2 mmF9.612.9 μm$1,199.00 Ships in 2-3 weeks

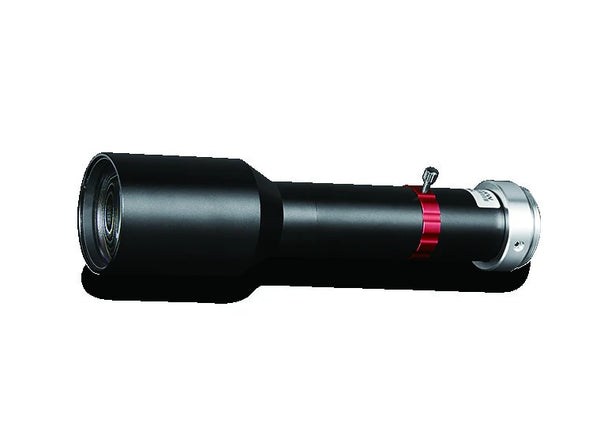

LS-TCL-2844Megapixel telecentric lens, 0.5x, WD 110 mm, 2/3", C-mount, yes iris 0.5xC-mount2/3"110±2 mmF9.612.9 μm$1,199.00 Ships in 2-3 weeks

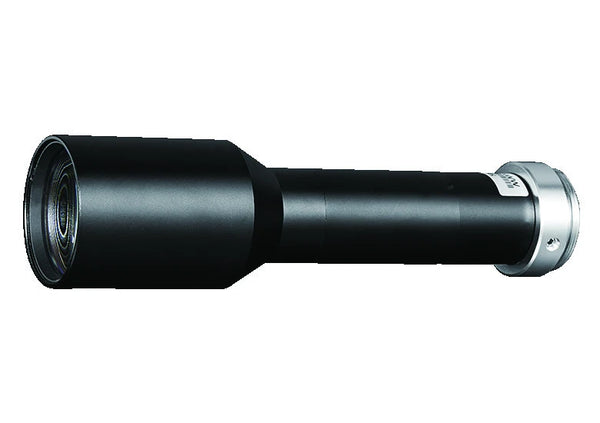

LS-TCL-2843Megapixel telecentric lens, 0.5x, WD 110 mm, 2/3", C-mount, no iris 0.5xC-mount2/3"110±2 mmF9.612.9 μm$1,199.00 Ships in 2-3 weeks
LS-TCL-2853Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 110.4 mm long, no iris 0.7xC-mount2/3"145±2 mmF16.816.2 μm$1,089.00 Ships in 2-3 weeks
LS-TCL-2854Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 110.4 mm long, yes iris 0.7xC-mount2/3"145±2 mmF16.816.2 μm$1,089.00 Ships in 2-3 weeks
LS-TCL-2856Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long, no iris 0.7xC-mount2/3"145±2 mmF16.816.2 μm$1,089.00 Ships in 2-3 weeks
LS-TCL-2857Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long, yes iris 0.7xC-mount2/3"145±2 mmF16.816.2 μm$1,089.00 Ships in 2-3 weeks
LS-TCL-2858Megapixel telecentric lens, 0.7x, WD 273 mm, 2/3", C-mount 0.7xC-mount2/3"273±3 mmF22.112.4 μm$1,089.00 Ships in 2-3 weeks
LS-TCL-2855Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long, FOV 15.7 mm, no iris 0.7xC-mount2/3"145±2 mmF16.811.05 μm$1,089.00 Ships in 2-3 weeks
LS-TCL-2852Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 110.4 mm long, FOV 15.7 mm, no iris 0.7xC-mount2/3"145±2 mmF16.811.05 μm$1,089.00 Ships in 2-3 weeks
LS-TCL-2862Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 117.1 mm long, no iris 0.8xC-mount2/3"130±2 mmF12.610.6 μm$1,199.00 Ships in 2-3 weeks
LS-TCL-2863Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 117.1 mm long, yes iris 0.8xC-mount2/3"130±2 mmF12.610.6 μm$1,199.00 Ships in 2-3 weeks
LS-TCL-2866Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 121.4 mm long 0.8xC-mount2/3"130±2 mmF12.610.6 μm$1,199.00 Ships in 2-3 weeks
LS-TCL-2860Megapixel telecentric lens, 0.8x, WD 65 mm, 2/3", C-mount with coaxial light 0.8xC-mount2/3"65±1 mmF108.4 μm$1,199.00 Ships in 2-3 weeks
LS-TCL-2859Megapixel telecentric lens, 0.8x, WD 65 mm, 2/3", C-mount 0.8xC-mount2/3"65±1 mmF108.4 μm$1,199.00 Ships in 2-3 weeks

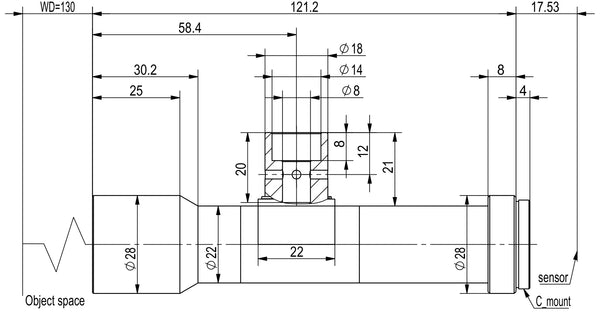

LS-TCL-2864Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 121.2 mm long 0.8xC-mount2/3"130±2 mmF12.68.77 μm$1,199.00 Ships in 2-3 weeks

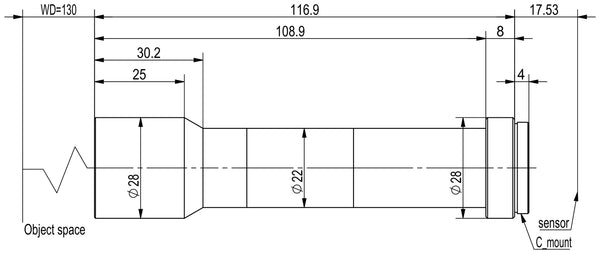

LS-TCL-2861Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 116.9 mm long 0.8xC-mount2/3"130±2 mmF12.68.77 μm$1,199.00 Ships in 2-3 weeks
