Collimated lights · 5 models · from $449.00

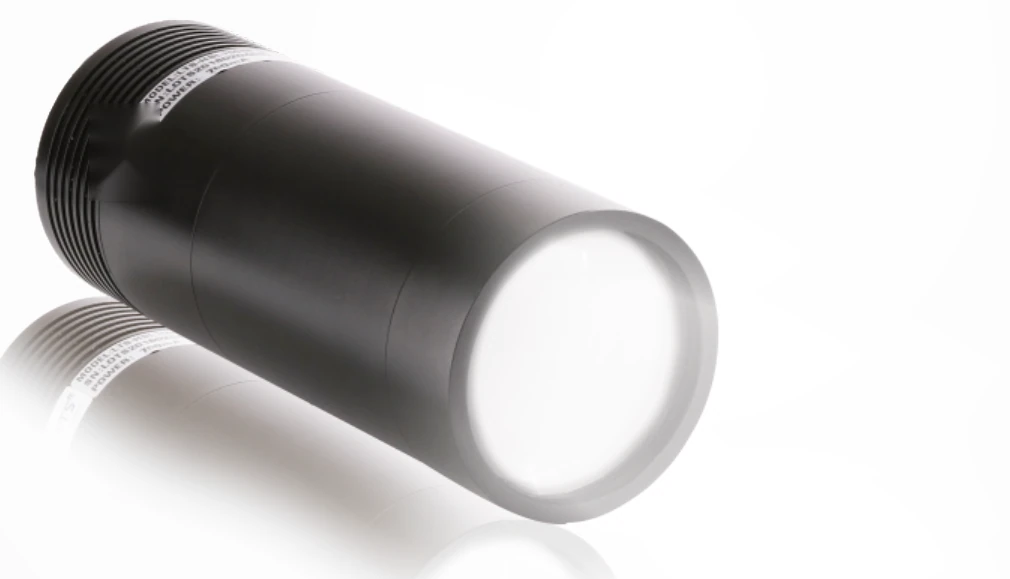

Collimated collector light (HSL)
The Collimated collector light (HSL) is a range of 5 collimated lights from LumaSpec Vision, from $449.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 50 mm, 51 mm, 61 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High luminance, concentrated light, good parallelism
- Suits long-distance inspection
- Durable steady structure, high heat dispersion performance
- Apply to long-distance inspection
Typical uses
- PCB printed character inspection
- Surface scratch inspection
- Edge contour inspection
- Mark position inspection
- Imaging example: dead pixel inspection on transparent glass (LS-HSL15058-W)
- The surface scratch inspection
All 5 models in the Collimated collector light (HSL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HSL15058 | 50 mm | 10 W | $449.00 | 15 in stock | View | |
| LS-HSL14861 | 51 mm | 3 W | $449.00 | 12 in stock | View | |
| LS-HSL15058-RBG | 3 W | $499.00 | 11 in stock | View | ||
| LS-HSL15058-W | 5 W | $499.00 | 5 in stock | View | ||
| LS-HSL11070 | 61 mm | 3 W | $519.00 | 14 in stock | View |
